Professional application of electric impact drill in electrical installation？

1. Overview of Electric Impact Drills

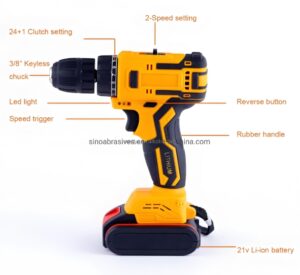

2. Key Features and Functions of Electric Impact Drills for Electrical Installation

• Adjustable Speed and Torque: Most modern electric impact drills come with adjustable speed and torque settings. For example, when drilling into softer materials like wood or plastic for installing electrical cable trays, a lower speed and torque can be selected to ensure precision and prevent damage to the material. On the other hand, when working on concrete or masonry walls to install electrical boxes, a higher speed and torque setting with the impact function enabled is more appropriate.
• Chuck Types: The chuck is the part of the impact drill that holds the drill bit. There are two main types: key – type chucks and keyless chucks. Keyless chucks are more popular in electrical installation due to their convenience. They allow for quick and easy bit changes, which is essential when switching between different types of drilling tasks, such as drilling holes of different diameters or using different drill bit types like masonry bits, twist bits, and spade bits.
• Forward and Reverse Rotation: This function is extremely useful in electrical installation. The forward rotation is used for drilling holes, while the reverse rotation can be used to remove screws or bits that may get stuck. For instance, if a screw is over – tightened during the installation of an electrical panel cover, the reverse rotation can be used to loosen and remove it without causing damage to the surrounding components.

3. Popular Brands and Models of Electric Impact Drills for Electrical Installation

• Bosch:
  • Bosch GSB 18V – 55 Professional: This 18 – volt cordless impact drill is a favorite among electrical installers. It features a high – performance brushless motor, which provides longer run – time and increased durability. With a maximum torque of 130 Nm, it can handle tough drilling and screwdriving tasks on various materials, including concrete, metal, and wood. The Active Torque Control (ATC) system reduces the risk of the drill twisting in the user’s hand in case of a jammed bit, enhancing safety. It also has a two – speed gearbox, allowing for precise control over the drilling speed depending on the material and task.
  • Bosch GSB 16 RE Professional: A corded model, the GSB 16 RE is known for its reliability and power. It has a 600 – watt motor that delivers a no – load speed of up to 2800 rpm and an impact rate of 44800 ipm (impacts per minute). The SDS – Plus chuck system provides a secure hold on drill bits, ensuring stable and accurate drilling. This model is suitable for both light – duty and medium – duty electrical installation tasks, such as drilling holes for electrical conduits in brick walls and installing light fixtures.
• Dewalt:
  • Dewalt DCD791D2 20V MAX XR Lithium – Ion Brushless Cordless Drill/Driver and Impact Driver Combo Kit: Although a combo kit, the impact drill component is highly regarded in the electrical industry. The brushless motor offers increased efficiency and longer tool life. It has a high – speed transmission that can reach up to 2000 rpm, making it ideal for fast drilling through wood and metal. The compact and lightweight design allows for easy maneuverability in tight spaces, which is common in electrical installations, such as working inside electrical cabinets or behind walls.
  • Dewalt D25303K 1 – inch SDS – Plus Corded Rotary Hammer Drill: This corded rotary hammer drill from Dewalt is a heavy – duty option for more demanding electrical installation projects. With a 11 – amp motor, it can generate a high impact energy of 4.3 joules. The variable – speed trigger and reversing function provide precise control over the drilling and chiseling operations. The SDS – Plus chuck system allows for quick and easy bit changes, and the tool is well – suited for drilling large – diameter holes in concrete for electrical conduit installations in commercial buildings.
• Makita:
  • Makita XPH12Z 18V LXT Lithium – Ion Brushless Cordless Rotary Hammer Drill: The XPH12Z features a brushless motor that provides up to 50% more runtime compared to brushed models. It has a three – mode operation: rotation only, hammering with rotation, and chiseling. The variable – speed control dial and two – speed transmission (0 – 500 rpm and 0 – 2000 rpm) offer versatility for different drilling tasks. The tool also has an efficient dust extraction system, which is beneficial during electrical installation work in enclosed spaces, as it helps to keep the work area clean and reduces the inhalation of dust particles.
  • Makita HR2470 1 – inch Corded Rotary Hammer Drill: This corded model is a reliable choice for electrical installers. It has a 7.5 – amp motor that delivers a powerful 3.0 joules of impact energy. The anti – vibration technology reduces user fatigue during long – term use, which is important when working on large – scale electrical installation projects. The SDS – Plus chuck system ensures a secure bit hold, and the tool can be used for a wide range of tasks, from drilling small holes for electrical wires to larger holes for electrical boxes in masonry and concrete walls.

4. Application Scenarios of Electric Impact Drills in Electrical Installation

• Drilling Holes for Electrical Conduits: One of the primary applications of electric impact drills in electrical installation is creating holes for electrical conduits. Whether it’s in residential, commercial, or industrial buildings, electrical conduits are used to protect electrical wires from physical damage, moisture, and fire. When drilling holes for conduits in concrete or brick walls, the impact function of the drill is crucial. Installers need to ensure that the holes are of the correct diameter and depth to accommodate the conduits properly. For example, for a 20 – mm diameter electrical conduit, a drill bit of slightly larger diameter (such as 22 – mm) may be used to allow for easy insertion of the conduit. The adjustable speed and torque settings of the impact drill can be adjusted according to the hardness of the material to achieve clean and accurate holes.
• Installing Electrical Boxes: Electrical boxes are used to house electrical components such as switches, sockets, and junction boxes. Electric impact drills are used to create holes in walls or ceilings for mounting these boxes. First, the position of the electrical box is marked, and then the impact drill is used to drill holes for the mounting screws. The drill needs to be precise to ensure that the electrical box is installed level and securely. In addition, when installing electrical boxes in concrete or masonry, the impact function helps to break through the hard material more easily. Some electrical boxes may require larger holes to accommodate additional features such as built – in cable clamps, and the impact drill can be used with appropriate – sized spade bits to create these holes.
• Fastening Electrical Components: Electric impact drills are also used for fastening electrical components to various surfaces. This includes attaching electrical panels to walls, installing light fixtures, and securing electrical cables to cable trays. The drill’s screwdriving function, with its adjustable torque settings, allows for precise tightening of screws. For example, when installing an electrical panel, different types of screws may be used, and the torque needs to be adjusted accordingly to ensure that the panel is securely fastened without over – tightening and damaging the components. In the case of installing light fixtures, the impact drill can quickly drive screws into wood, plasterboard, or metal surfaces, reducing the installation time significantly.
• Cable Tray Installation: Cable trays are used to organize and support electrical cables in large – scale electrical installations. Electric impact drills are used to drill holes in the supporting structures (such as metal beams or walls) for mounting the cable trays. The drill’s high – speed rotation and impact function can quickly penetrate through metal or concrete, enabling the installation of cable trays in a timely manner. Additionally, the drill can be used to fasten the cable trays to the supporting structures using screws or bolts, ensuring a stable and secure installation that can withstand the weight of the electrical cables.

5. Safety Precautions When Using Electric Impact Drills in Electrical Installation

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses to protect the eyes from flying debris, ear protection to reduce the impact of the drill’s noise, and work gloves to provide a better grip and protect the hands from potential injuries. In some cases, a dust mask may also be required, especially when drilling into materials that generate a lot of dust, such as concrete.
• Inspection Before Use: Before using the electric impact drill, carefully inspect the tool for any signs of damage, such as frayed cords (for corded models), cracks in the housing, or loose parts. A damaged drill can pose a serious safety risk, including electric shock or malfunction during use.
• Proper Handling: Hold the drill firmly with both hands, especially when using the impact function on hard materials. This helps to maintain control of the tool and reduces the risk of it slipping or twisting out of your hands. When drilling overhead or in awkward positions, use appropriate ladders or scaffolding and ensure that you have a stable footing.
• Bit Selection and Installation: Use only drill bits that are compatible with the electric impact drill and suitable for the material you are working on. Ensure that the bit is properly installed in the chuck and tightened securely. A loose bit can come out during operation, causing injury or damage to the work surface.
• Electrical Safety (for Corded Models): When using corded electric impact drills, use a grounded electrical outlet to prevent electric shock. Avoid pulling on the cord to unplug the drill, and keep the cord away from sharp edges, hot surfaces, and water. If the cord becomes damaged, do not use the drill until it has been repaired or replaced.

6. Maintenance and Care of Electric Impact Drills

• Cleaning: After each use, clean the electric impact drill to remove dust, debris, and any metal shavings. Use a dry cloth or a soft – bristle brush to clean the exterior of the tool. For the chuck, you can use a small brush to remove any dirt or debris that may have accumulated. This helps to prevent the build – up of debris, which can affect the performance of the drill and cause premature wear.
• Lubrication: Regularly lubricate the moving parts of the drill, such as the chuck and the gearbox. Follow the manufacturer’s instructions for the type of lubricant to use and the frequency of lubrication. Proper lubrication reduces friction, extends the life of the tool, and ensures smooth operation.
• Battery Care (for Cordless Models): If using a cordless electric impact drill, take proper care of the battery. Do not over – charge or over – discharge the battery. Store the battery in a cool, dry place, and if not in use for an extended period, charge it periodically to maintain its performance. Replace the battery when it no longer holds a charge or shows signs of reduced performance.
• Storage: Store the electric impact drill in a dry and safe place, preferably in a toolbox or a storage case. This protects the tool from damage and ensures that it is ready for use when needed. Keep the drill away from moisture, extreme temperatures, and corrosive substances.
