Comprehensive Guide to Electric Hammer Drill Bit Models and Dimensions

Electric hammer drills are versatile power tools designed for drilling into hard materials such as concrete, brick, and stone. Their functionality extends beyond standard drilling, incorporating impact mechanisms that enable efficient chipping and chiseling. Central to their performance are the drill bits, which vary in design, size, and application. This guide explores leading brands, their model specifications, dimensional ranges, and key features, providing a detailed resource for professionals and DIY enthusiasts alike.

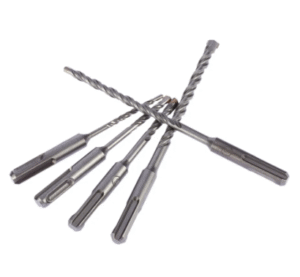

1. Overview of Electric Hammer Drill Bits

Electric hammer drill bits are engineered to withstand high-impact forces while maintaining precision during drilling. They typically feature SDS (Slotted Drive System) shanks, which ensure secure attachment to the drill’s chuck and efficient power transmission. The bits are categorized by their head geometry, material composition, and intended use, ranging from general-purpose masonry drilling to specialized tasks like tile removal or rebar cutting.

Key Components of Electric Hammer Drill Bits

• Shank Type: SDS-Plus (most common for handheld drills) or SDS-Max (for heavy-duty rotary hammers).
• Head Design: Cross-cut (four-blade), carbide-tipped, or multi-purpose heads for varied material penetration.
• Length: Standard lengths range from 110mm to 500mm, with extendable options for deep drilling.
• Diameter: Common sizes span 4mm to 32mm, accommodating diverse hole requirements.

2. Leading Brands and Their Model Specifications

2.1 Venstpow (Global Supplier via AliExpress)

Venstpow offers a range of cross-cut electric hammer drill bits designed for masonry applications. Their products are characterized by hard alloy tips and SDS-Plus shanks, ensuring durability and compatibility with most handheld hammer drills.

Model Example: Venstpow Four-Blade Alloy Drill Bit

• Dimensions:
  • Diameter: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 32mm.
  • Length: 110mm, 150mm, 160mm, 200mm, 260mm, 310mm, 350mm, 450mm, 500mm.
• Features:
  • Hard alloy tip for enhanced wear resistance.
  • Four-blade cross-cut design for efficient material removal.
  • SDS-Plus shank for secure chuck grip.
  • Suitable for concrete, brick, stone, and steel bar drilling.
• Applications:
  • Wall anchoring, pipe installation, and electrical conduit drilling.
  • Light demolition tasks such as tile removal.

User Feedback:
Customers praise the bits’ longevity and precision, noting minimal deviation in hole diameter even after prolonged use. The 110mm length is particularly popular for overhead drilling, while longer variants (350mm+) are favored for foundation work.

2.2 Makute (Yongkang Xiaocheng Electric Appliance Co., Ltd.)

Makute is a renowned manufacturer of power tools, including electric hammer drills and compatible accessories. Their drill bits are engineered for high-performance drilling in tough materials, with models catering to both professional and consumer markets.

Model Example: Makute HD003 24mm Electric Rotary Hammer Drill Bit

• Dimensions:
  • Diameter: 24mm.
  • Length: Standard (specific length not listed; typically 300–400mm for this diameter).
• Features:
  • 620W motor compatibility (optimized for Makute HD003 drill).
  • SDS-Plus shank with 360-degree adjustable side handle for ergonomic control.
  • Variable speed control (0–620 RPM) for delicate tasks.
  • Impact energy of 2.5J for efficient concrete penetration.
• Applications:
  • Drilling holes for anchor bolts, rebar ties, and plumbing fixtures.
  • Light chiseling tasks when paired with appropriate attachments.

Model Example: Makute HD001 26mm Electric Hammer Drill Bit

• Dimensions:
  • Diameter: 26mm.
  • Length: Standard (typically 350–450mm for this diameter).
• Features:
  • 800W motor compatibility (designed for Makute HD001 drill).
  • Rubberized handle for reduced vibration and operator fatigue.
  • No-load speed of 0–900 RPM for rapid drilling.
  • Explosion-proof housing for added safety in hazardous environments.
• Applications:
  • Creating large-diameter holes for ductwork or structural reinforcements.
  • Demolition of thin concrete layers or masonry partitions.

User Feedback:
Makute’s bits are lauded for their balance of power and precision, with users highlighting the ergonomic designs that minimize hand strain during extended use. The 26mm model, in particular, is favored for its ability to tackle rebar-reinforced concrete without dulling quickly.

2.3 Bafang (Jining Bafang Mining Machinery Co., Ltd.)

Bafang specializes in heavy-duty construction equipment, including demolition hammers and compatible drill bits. Their products are built for industrial applications, offering robust performance in extreme conditions.

Model Example: Bafang DK-0865 65mm Breaker Hammer Drill Bit

• Dimensions:
  • Diameter: 65mm.
  • Length: 710mm (including shank).
• Features:
  • 1500W motor compatibility (designed for Bafang DK-0865 demolition hammer).
  • SDS-Max shank for heavy-duty power transmission.
  • Impact rate of 1900 BPM (blows per minute) for rapid material breakdown.
  • Linear ergonomic design for improved operator leverage.
• Applications:
  • Breaking through thick concrete slabs or foundations.
  • Chiseling channels for electrical wiring or plumbing in industrial settings.
  • Removing asphalt or compacted soil during road repairs.

User Feedback:
Professionals in the construction industry commend Bafang’s bits for their unmatched durability, with some users reporting over 100 hours of continuous use without significant wear. The 65mm diameter is ideal for large-scale demolition, reducing the need for multiple passes.

2.4 Generic Brands via AliExpress (e.g., Hsawbitt Store)

AliExpress hosts numerous sellers offering budget-friendly electric hammer drill bits, often branded generically or under private labels. These bits cater to casual users and small contractors seeking cost-effective solutions without compromising basic functionality.

Model Example: Hsawbitt Store Cross-Impact Drill Bit

• Dimensions:
  • Diameter: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm.
  • Length: 110mm.
• Features:
  • Hardened steel construction for basic masonry drilling.
  • Round handle compatible with SDS-Plus chucks.
  • Affordable pricing (e.g., $4.15 for a 12mm bit).
• Applications:
  • Installing shelves, curtains, or light fixtures in brick walls.
  • Drilling small holes for cable management in concrete ceilings.

User Feedback:
While these bits are less durable than premium alternatives, they serve as adequate replacements for infrequent use. Users appreciate the low cost, though some note occasional shank misalignment in cheaper models.

3. Dimensional Range and Selection Criteria

3.1 Diameter Variations

Electric hammer drill bits are available in diameters ranging from 4mm to 65mm, with the following common use cases:

• 4–12mm: Ideal for anchoring small fixtures, electrical conduits, or plumbing pipes.
• 14–25mm: Suitable for medium-duty tasks like installing door frames or ventilation ducts.
• 26–65mm: Designed for heavy-duty applications, including structural reinforcements or large-scale demolition.

Selection Tip: Choose a diameter slightly larger than the required hole to accommodate anchor expansion or material displacement.

3.2 Length Variations

Bit lengths vary from 110mm to 500mm+, with longer bits enabling deeper drilling without repositioning the tool. Key considerations include:

• 110–200mm: Standard length for most handheld drills, suitable for wall and ceiling work.
• 260–450mm: Extended length for floor drilling or reaching behind obstacles.
• 500mm+: Specialized bits for deep foundation drilling or mining applications.

Selection Tip: For overhead drilling, opt for shorter bits (110–160mm) to reduce fatigue. For floor drilling, longer bits (350–500mm) minimize the need for kneeling or bending.

3.3 Shank Types

• SDS-Plus: Fits most handheld hammer drills, offering a balance of strength and versatility.
• SDS-Max: Reserved for heavy-duty rotary hammers, capable of transmitting higher torque and impact forces.

Selection Tip: Ensure the bit’s shank matches the drill’s chuck type to avoid slippage or damage.

4. Advanced Features and Innovations

4.1 Carbide-Tipped Bits

Carbide tips resist wear and heat, extending the bit’s lifespan by up to 10 times compared to standard steel. They are essential for drilling into abrasive materials like granite or reinforced concrete.

4.2 Multi-Purpose Heads

Some bits feature interchangeable heads, allowing users to switch between drilling, chiseling, or scraping without changing tools. This versatility is valuable in multi-task environments like renovation projects.

4.3 Laser-Welded Tips

Laser welding ensures a stronger bond between the tip and shank, reducing the risk of detachment under high stress. This technology is common in premium bits designed for industrial use.

4.4 Cooling Channels

Bits with internal cooling channels dissipate heat more effectively, preventing overheating during prolonged use. This feature is particularly beneficial when drilling large-diameter holes.

5. Safety and Maintenance Guidelines

5.1 Safety Precautions

• Personal Protective Equipment (PPE): Always wear safety goggles, gloves, and a dust mask to protect against flying debris and inhalable particles.
• Tool Inspection: Before use, check the bit for cracks, excessive wear, or loose shanks. Replace damaged bits immediately.
• Stable Footing: Ensure the drill is held firmly with both hands, and maintain a balanced stance to prevent loss of control.
• Avoid Overloading: Do not force the bit into the material; let the tool’s weight and impact mechanism do the work.

5.2 Maintenance Tips

• Cleaning: After use, remove dust and debris from the bit using a brush or compressed air. Avoid water, as moisture can promote rust.
• Lubrication: Apply a light machine oil to the shank periodically to reduce friction and ease chuck insertion/removal.
• Storage: Store bits in a dry, organized case to prevent damage and ensure quick access to the required size.

6. Market Trends and Future Developments

6.1 Cordless Innovation

The rise of lithium-ion battery technology has led to cordless electric hammer drills, offering portability without sacrificing power. Manufacturers are now developing compatible cordless bits with optimized geometries for battery-powered tools.

6.2 Smart Features

Emerging models incorporate sensors to monitor bit wear, temperature, and impact force, alerting users when replacement is necessary. Some advanced drills even adjust speed and torque automatically based on material resistance.

6.3 Sustainable Materials

Brands are exploring recycled steel and biodegradable coatings to reduce environmental impact. These eco-friendly bits maintain performance while aligning with global sustainability goals.

7. Conclusion

Electric hammer drill bits are indispensable tools for construction, renovation, and DIY projects, with a wide range of models catering to diverse needs. From budget-friendly generic bits to premium carbide-tipped options, the market offers solutions for every application and budget. By understanding dimensional specifications, shank types, and advanced features, users can select the right bit for their task, ensuring efficiency, safety, and longevity. As technology evolves, future innovations promise even greater precision, durability, and environmental responsibility, solidifying the electric hammer drill bit’s role as a cornerstone of modern tooling.
