How to drill a hole with a hammer drill bit

Drilling holes with a hammer drill bit is a critical skill for construction, renovation, and DIY projects. Unlike standard drill bits, hammer drill bits are designed to handle hard materials like concrete, brick, and stone by combining rotational force with rapid hammering action. This guide provides detailed instructions on using hammer drill bits effectively, along with an in-depth look at popular brands and models available in the market.

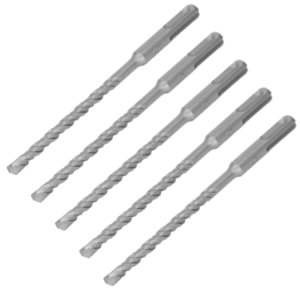

Understanding Hammer Drill Bits

Hammer drill bits are specialized tools engineered to drill into masonry and concrete. They feature a unique design that includes a carbide tip for enhanced durability and cutting efficiency. The shank of the bit is often designed to fit specific drill types, such as SDS (Slotted Drive System) or SDS-Plus, which provide better energy transfer and reduce slippage during operation.

The primary advantage of using a hammer drill bit is its ability to drill through hard materials quickly and efficiently. The hammering action breaks up the material, while the rotation clears away debris, resulting in a cleaner and faster drilling process. This makes hammer drill bits ideal for tasks like installing anchors, running electrical conduits, or creating openings for plumbing pipes.

Preparing for Drilling

Before you begin drilling, it’s essential to gather the necessary tools and materials and take appropriate safety precautions.

Tools and Materials Needed

1. Hammer Drill: Choose a drill that supports hammering action. Corded models offer consistent power, while cordless versions provide portability. Ensure the drill is compatible with the hammer drill bit you plan to use.
2. Hammer Drill Bits: Select bits based on the material you’re drilling and the hole size required. Common types include SDS-Plus, SDS-Max, and spline shank bits.
3. Safety Gear: Wear safety glasses to protect your eyes from flying debris, ear protection to reduce noise exposure, and a dust mask to prevent inhalation of concrete dust.
4. Marking Tools: Use a pencil or marker to indicate the drilling location accurately. A center punch can create a small indentation to guide the bit.
5. Measuring Tape: Measure and mark the desired hole depth to ensure consistency.
6. Water or Lubricant: For certain applications, using water or a specialized lubricant can help cool the bit and reduce dust.

Safety Precautions

1. Wear Protective Gear: Always wear safety glasses, ear protection, and a dust mask when drilling into masonry or concrete.
2. Secure the Workpiece: Ensure the material you’re drilling is stable and securely clamped or held in place to prevent movement during drilling.
3. Check for Utilities: Before drilling into walls or floors, check for hidden electrical wires or plumbing pipes to avoid damaging them.
4. Use the Correct Speed and Pressure: Adjust the drill’s speed and apply consistent, moderate pressure to prevent the bit from overheating or breaking.
5. Keep Hands Away from the Drilling Area: Maintain a safe distance from the bit and avoid placing hands near the drilling point to prevent injuries.

Step-by-Step Guide to Drilling with a Hammer Drill Bit

Follow these steps to drill a hole using a hammer drill bit effectively:

1. Mark the Drilling Location: Use a pencil or marker to indicate the exact spot where you want to drill the hole. For greater accuracy, create a small indentation with a center punch.
2. Select the Appropriate Drill Bit: Choose a hammer drill bit that matches the material you’re drilling and the hole size required. Ensure the bit is compatible with your drill’s chuck or shank type.
3. Insert the Bit into the Drill: For drills with a keyless chuck, open the chuck by rotating it counterclockwise, insert the bit, and then tighten the chuck by rotating it clockwise. For SDS or spline shank drills, simply insert the bit into the chuck until it clicks into place.
4. Set the Drill to Hammer Mode: If your drill has multiple modes, switch it to hammer mode to activate the hammering action. Adjust the speed settings based on the material you’re drilling; lower speeds are typically better for harder materials.
5. Position the Drill: Hold the drill perpendicular to the surface you’re drilling. Apply firm but gentle pressure to keep the bit stable as it begins to drill.
6. Begin Drilling: Start the drill at a slow speed to create a small indentation in the material. This helps guide the bit and prevents it from wandering. Once the indentation is made, increase the speed and let the drill’s hammering action do the work. Avoid applying excessive pressure, as this can cause the bit to overheat or break.
7. Maintain a Steady Pace: Keep the drill moving at a consistent pace, allowing the bit to penetrate the material gradually. If the drill begins to bog down or the bit gets stuck, reduce the pressure and continue drilling at a slower speed.
8. Clear Debris Regularly: Periodically withdraw the bit to clear away accumulated debris. This helps maintain drilling efficiency and prevents the bit from overheating.
9. Drill to the Desired Depth: Continue drilling until you reach the desired depth, using the measuring tape or depth stop on the drill to guide you. For through-holes, drill until the bit emerges on the other side.
10. Turn Off the Drill and Remove the Bit: Once the hole is complete, turn off the drill and carefully withdraw the bit from the hole. Allow the bit to cool down before storing it.

Popular Brands and Models of Hammer Drill Bits

Several reputable brands manufacture high-quality hammer drill bits designed for various applications. Here are some popular models and their key features:

1. Bosch BlueGranite Turbo Carbide Hammer Drill Bits

The Bosch BlueGranite Turbo Carbide Hammer Drill Bits are engineered for maximum speed and durability in concrete drilling. These bits feature a unique carbide tip design that provides faster drilling and longer life compared to standard masonry bits. The four-cutter head offers enhanced stability and reduced vibration, resulting in cleaner holes and less operator fatigue.

Key Features:

• Carbide tip for increased durability and faster drilling
• Four-cutter head for improved stability and reduced vibration
• Optimized flute design for efficient debris removal
• Available in a range of diameters from 1/4 inch to 1 inch

2. DEWALT SDS Plus Hammer Drill Bits

DEWALT’s SDS Plus Hammer Drill Bits are designed for use with SDS Plus rotary hammers and are ideal for drilling into concrete, brick, and block. These bits feature a rock carbide tip that maximizes carbide surface contact for longer bit life, while the four-flute design cleans debris out fast for efficient drilling.

Key Features:

• Rock carbide tip for enhanced durability and performance
• Four-flute design for efficient debris removal
• Optimized for use with SDS Plus rotary hammers
• Available in various lengths and diameters to suit different applications

3. Makita SDS-MAX Rotary Hammer Drill Bits

Makita’s SDS-MAX Rotary Hammer Drill Bits are engineered for heavy-duty drilling applications in concrete and masonry. These bits feature a solid carbide tip that provides superior durability and cutting performance, while the optimized flute design ensures efficient debris removal and reduced heat buildup.

Key Features:

• Solid carbide tip for maximum durability and cutting efficiency
• Optimized flute design for efficient debris removal and heat dissipation
• Designed for use with SDS-MAX rotary hammers
• Available in a wide range of diameters and lengths

4. Milwaukee Thunderweb Carbide Hammer Drill Bits

Milwaukee’s Thunderweb Carbide Hammer Drill Bits are designed to deliver faster drilling and longer life in concrete and masonry. These bits feature a unique Thunderweb design that provides increased strength and durability, while the carbide tip ensures clean and precise holes.

Key Features:

• Thunderweb design for enhanced strength and durability
• Carbide tip for clean and precise drilling
• Optimized for use with rotary hammers
• Available in various diameters and lengths to suit different needs

5. Hilti TE-YX Hammer Drill Bits

Hilti’s TE-YX Hammer Drill Bits are engineered for high-performance drilling in concrete and reinforced concrete. These bits feature a carbide tip with a unique geometry that provides optimal cutting efficiency and extended service life. The centering tip ensures accurate starts, while the optimized flute design facilitates efficient debris removal.

Key Features:

• Carbide tip with unique geometry for optimal cutting efficiency
• Centering tip for accurate starts
• Optimized flute design for efficient debris removal
• Designed for use with Hilti rotary hammers

Choosing the Right Hammer Drill Bit

Selecting the appropriate hammer drill bit depends on several factors, including the material you’re drilling, the hole size required, and the type of drill you’re using. Here are some key considerations to keep in mind:

1. Material Compatibility: Choose a bit specifically designed for the material you’re drilling. For example, concrete bits are different from brick or block bits due to variations in hardness and density.
2. Bit Type: Consider the type of shank that fits your drill. SDS-Plus bits are suitable for smaller rotary hammers, while SDS-Max bits are designed for larger, more powerful drills. Spline shank bits are another option for heavy-duty applications.
3. Diameter and Length: Select a bit with the appropriate diameter and length for your project. Larger diameters are suitable for anchors or conduits, while longer bits are necessary for deeper holes.
4. Durability and Performance: Look for bits made from high-quality materials, such as carbide-tipped or solid carbide, which offer superior durability and cutting performance. Consider the bit’s design features, such as flute geometry and centering tips, which can impact drilling efficiency and hole quality.
5. Brand Reputation: Choose bits from reputable brands known for producing high-quality tools and accessories. Brands like Bosch, DEWALT, Makita, Milwaukee, and Hilti have established themselves as leaders in the industry, offering reliable and durable products.

Maintaining Your Hammer Drill Bits

Proper maintenance is essential to extend the life of your hammer drill bits and ensure optimal performance. Here are some tips for maintaining your bits:

1. Clean Bits After Use: After drilling, remove any debris or dust from the bit using a brush or compressed air. This helps prevent buildup that can affect drilling efficiency and cause the bit to overheat.
2. Store Bits Properly: Store your bits in a dry, clean place to prevent rust and corrosion. Consider using a storage case or organizer to keep bits organized and protected.
3. Inspect Bits Regularly: Periodically inspect your bits for signs of wear or damage, such as chipped or worn carbide tips. Replace any bits that show signs of excessive wear to ensure safe and efficient drilling.
4. Use the Right Bit for the Job: Avoid using a bit that’s too small or too large for the material you’re drilling, as this can cause the bit to break or wear out prematurely. Always match the bit to the application to ensure optimal performance.
5. Lubricate Bits When Necessary: For certain applications, using a lubricant or water can help cool the bit and reduce dust. Follow the manufacturer’s recommendations for lubrication to ensure proper use.

Conclusion

Drilling holes with a hammer drill bit requires the right tools, techniques, and safety precautions. By understanding the different types of hammer drill bits available, selecting the appropriate bit for your project, and following proper drilling procedures, you can achieve clean, precise holes in concrete, brick, and other masonry materials. Remember to prioritize safety by wearing protective gear, securing your workpiece, and using the correct speed and pressure. With the right approach and high-quality tools, you can tackle even the most challenging drilling tasks with confidence and efficiency.
