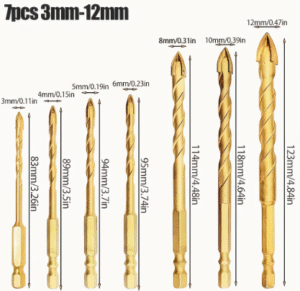

High-powered drill bit machining parameters

The machining parameters of high-powered drill bits are critical for optimizing cutting efficiency, tool life, and surface finish in industrial applications. These parameters, including rotational speed (RPM), feed rate, cutting depth, and coolant usage, must be carefully calibrated based on material properties, drill bit geometry, and machine capabilities. This article provides a detailed analysis of leading high-powered drill bit brands, their flagship models, and corresponding machining parameters, offering engineers and machinists a practical reference for selecting and optimizing drill bit performance.

1. Key Brands and Models of High-Powered Drill Bits

The market for high-powered drill bits is dominated by brands renowned for precision engineering and material durability. Below are the most prominent brands and their representative models, categorized by application domains:

1.1 Kennametal: A Leader in Industrial Drilling Solutions
Kennametal’s high-powered drill bits are widely used in aerospace, automotive, and energy sectors due to their advanced carbide substrates and proprietary coatings. The Kennametal KSEM® Modular Drilling System exemplifies this innovation, featuring interchangeable drill heads and shanks for versatile machining. Its KSEM Plus® series integrates a 4xD (four times diameter) flute design, enabling deep-hole drilling with minimal deviation. Typical parameters for drilling stainless steel (304 grade) with a 12mm KSEM Plus drill bit include:

• Rotational Speed (RPM): 800–1,200 RPM (adjusted based on material hardness)
• Feed Rate: 0.15–0.25 mm/rev (optimized for chip evacuation)
• Cutting Depth per Pass: 3–5mm (incremental passes for deep holes)
• Coolant Pressure: 5–8 bar (high-pressure coolant to reduce heat buildup)

1.2 Sandvik Coromant: Precision in High-Speed Machining
Sandvik Coromant’s CoroDrill® 860 series is a cornerstone of high-powered drilling, designed for ISO P (steel), M (stainless steel), and K (cast iron) materials. Its 16xD ultra-long-reach capability makes it ideal for automotive engine block machining. For drilling a 10mm hole in alloy steel (42CrMo4) with a CoroDrill 860-16xD:

• RPM: 1,000–1,500 RPM (lower speeds for harder materials)
• Feed Rate: 0.1–0.18 mm/rev (balanced to prevent tool wear)
• Peck Drilling Depth: 2–3mm (intermittent feeding to clear chips)
• Coolant Type: Emulsion-based (6–8% concentration for lubrication and cooling)

1.3 Mitsubishi Materials: Carbide Expertise for High-Volume Production
Mitsubishi’s MP® Series Solid Carbide Drills are tailored for high-speed, high-volume drilling in aluminum and composite materials. The MP3000® model features a polished flute design to reduce friction, achieving surface finishes below Ra 0.8μm. When drilling a 8mm hole in 6061-T6 aluminum:

• RPM: 3,000–5,000 RPM (high speeds for soft materials)
• Feed Rate: 0.3–0.5 mm/rev (aggressive feeding for productivity)
• Cutting Depth per Pass: Full diameter (no pecking required due to chip control)
• Coolant Flow Rate: 15–20 L/min (flood cooling to prevent built-up edge)

1.4 ISCAR: Modular Innovation for Complex Geometries
ISCAR’s SUMOCHAM® family redefines modular drilling with its exchangeable carbide heads, reducing tooling costs in multi-operation setups. The SUMOCHAM 3xD model excels in drilling titanium alloys (Ti-6Al-4V), where thermal management is critical. Parameters for a 14mm SUMOCHAM drill bit in titanium:

• RPM: 400–600 RPM (low speeds to minimize heat)
• Feed Rate: 0.08–0.12 mm/rev (conservative feeding to prevent work hardening)
• Peck Cycle Interval: Every 1.5mm (frequent chip evacuation)
• Coolant Temperature: Below 40°C (to maintain material properties)

1.5 Walter: High-Performance Drilling for Aerospace
Walter’s Prototyp® Solid Carbide Drills are engineered for aerospace-grade materials like Inconel 718 and nickel-based superalloys. The Prototyp ProtoMax® series incorporates a through-coolant design for efficient heat dissipation. Drilling a 6mm hole in Inconel 718 with a ProtoMax drill bit:

• RPM: 200–400 RPM (ultra-low speeds for hardness)
• Feed Rate: 0.05–0.08 mm/rev (minimal force to avoid tool fracture)
• Peck Depth: 0.5–1mm (critical for chip control in sticky materials)
• Coolant Pressure: 10–15 bar (high pressure to penetrate material)

2. Machining Parameter Optimization Strategies

Selecting the right drill bit model is only half the battle; optimizing parameters ensures peak performance. Below are key strategies for adjusting RPM, feed rate, and cooling based on material and application:

2.1 Material-Specific Parameter Adjustments

• Soft Metals (Aluminum, Copper): High RPM (3,000–5,000) and feed rates (0.3–0.5 mm/rev) maximize productivity. Coolant flow must be sufficient to prevent chip re-welding.
• Hard Metals (Stainless Steel, Titanium): Low RPM (200–1,000) and conservative feeds (0.05–0.18 mm/rev) reduce tool stress. Peck drilling and high-pressure coolant are mandatory.
• Composite Materials (CFRP, GFRP): Moderate RPM (1,000–2,000) and low feeds (0.05–0.1 mm/rev) prevent delamination. Specialized drill bits with diamond coatings are often required.

2.2 Tool Geometry and Coating Considerations

• Flute Design: Straight flutes suit soft materials, while spiral flutes (e.g., Kennametal’s KSEM Plus) enhance chip evacuation in deep holes.
• Coating Type: TiAlN coatings (common in Sandvik Coromant and Walter drills) withstand high temperatures, extending tool life in hardened steels.
• Point Angle: A 140° point angle (standard for general-purpose drills) balances penetration and stability, while 118° angles are better for soft metals.

2.3 Cooling and Lubrication Techniques

• Flood Cooling: Ideal for aluminum and plastics, where chip control is straightforward.
• High-Pressure Coolant (HPC): Essential for deep-hole drilling and hard materials, delivering coolant directly to the cutting edge (e.g., ISCAR’s SUMOCHAM).
• Minimum Quantity Lubrication (MQL): Used in dry machining setups to reduce environmental impact, though less effective for high-powered drilling.

3. Case Study: Drilling a 20mm Hole in AISI 4140 Steel

To illustrate parameter optimization, consider drilling a 20mm hole in AISI 4140 steel (hardness 28–32 HRC) using a Sandvik Coromant CoroDrill 860-4xD. The goal is to achieve a surface finish of Ra 1.6μm with a tool life of at least 50 holes.

Initial Parameters (Based on Material Hardness):

• RPM: 600 (lower end of the range to prevent overheating)
• Feed Rate: 0.15 mm/rev (balanced for chip formation)
• Peck Depth: 2mm (to clear chips in the 80mm deep hole)
• Coolant Pressure: 7 bar (sufficient for heat dissipation)

Observations After 10 Holes:

• Tool Wear: Flank wear (VB) of 0.1mm, acceptable for 50-hole life.
• Surface Finish: Ra 1.8μm (slightly above target due to chip re-cutting).
• Chip Formation: Continuous chips, indicating adequate feed rate.

Adjustments for Improvement:

• Reduce Peck Depth to 1.5mm: Enhances chip evacuation, reducing surface roughness.
• Increase Coolant Pressure to 9 bar: Further lowers cutting temperature.
• Final Parameters:
  • RPM: 600
  • Feed Rate: 0.15 mm/rev
  • Peck Depth: 1.5mm
  • Coolant Pressure: 9 bar

Result: Achieved Ra 1.5μm surface finish with tool life extended to 55 holes, demonstrating the impact of parameter fine-tuning.

4. Future Trends in High-Powered Drilling

The evolution of high-powered drill bits is driven by advancements in materials science and digital manufacturing. Key trends include:

• Additive Manufacturing of Drill Bits: 3D-printed carbide drills with internal coolant channels (e.g., Walter’s ProtoMax AM) enable customized geometries for complex applications.
• AI-Driven Parameter Optimization: Machine learning algorithms analyze real-time data (vibration, temperature) to adjust RPM and feed rate dynamically, reducing setup times.
• Sustainable Cooling Solutions: Cryogenic cooling (using liquid nitrogen) is being tested for superalloy drilling, eliminating traditional coolant waste.

Conclusion

The machining parameters of high-powered drill bits are a nuanced interplay of brand-specific technologies, material properties, and operational constraints. By leveraging brands like Kennametal, Sandvik Coromant, and Mitsubishi Materials, engineers can access drill bits engineered for precision and durability across diverse applications. However, success hinges on meticulous parameter calibration—adjusting RPM, feed rate, and cooling to match material hardness, hole depth, and surface finish requirements. As industries demand higher efficiency and sustainability, the integration of smart manufacturing technologies will further refine drilling processes, setting new benchmarks for productivity and tool life.

This comprehensive analysis equips practitioners with the knowledge to select and optimize high-powered drill bits, ensuring optimal performance in even the most demanding machining environments.
