How to Repair a Damaged Hollow Drill Bit

Hollow drill bits, also known as core drill bits or annular cutters, are indispensable tools in construction, electrical installation, plumbing, and metalworking. They are specifically designed to remove a cylindrical core from the work material rather than drilling out the entire diameter. Over time, due to heavy use, friction, heat, and improper handling, hollow drill bits can become damaged. Repairing a damaged hollow drill bit requires a detailed understanding of its structure, materials, and usage techniques. This guide provides an in-depth explanation of how to repair hollow drill bits, discusses various methods, and introduces well-known brands and models in the market that professionals often encounter.

Understanding the Structure of Hollow Drill Bits

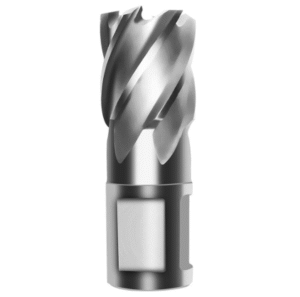

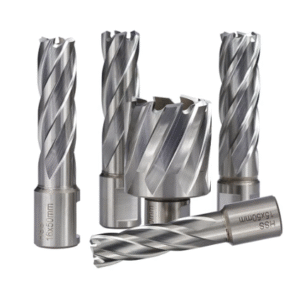

Before attempting any repair, it is important to understand the structure of hollow drill bits. Hollow drill bits are composed of a cylindrical body with cutting edges on the rim, often tipped with carbide or diamond segments, depending on the material they are designed to cut. The inner part remains hollow to allow for the removal of the core. They also feature shanks that connect to drills, such as SDS-plus, SDS-max, or hex shanks. Many modern hollow drill bits also include side openings for dust extraction. Brands like Bosch SDS-max Hollow Drill Bit 2608587166, Hilti TE-CX Hollow Drill Bit 2025623, and Makita Diamond Core Bit D-00800 are popular examples widely used in industries.

Hollow drill bits may suffer damage in several ways, such as chipping of the cutting edge, cracking of the cylindrical body, warping due to overheating, or complete breakage at the shank. Knowing the type of damage helps determine whether the bit can be repaired or whether replacement is more practical.

Common Types of Damage in Hollow Drill Bits

1. Chipped Cutting Edges
   Cutting tips made from carbide or diamond segments often chip when used at incorrect drilling speeds or on materials harder than intended. A chipped edge results in uneven drilling, slower penetration, and higher stress on the drill motor.

2. Blunt or Worn-Out Teeth
   Continuous usage gradually wears out the sharpness of cutting teeth. Dull cutting edges increase drilling time and cause overheating, leading to structural weakness.

3. Cracks in the Cylindrical Body
   Overheating or mechanical stress can cause cracks in the body of the hollow drill bit. If the cracks are small, they can sometimes be repaired by welding, but larger cracks usually mean the bit is beyond repair.

4. Shank Damage
   Frequent use in heavy-duty drills can deform or break the shank. If the shank is slightly bent, it can sometimes be straightened, but serious damage generally requires replacement.

5. Core Sticking or Blockage
   Incomplete removal of debris or material can cause blockage inside the hollow section. This type of issue can be resolved by cleaning and polishing.

Tools and Materials Needed for Repair

To repair a hollow drill bit, professionals often rely on a set of tools and materials designed for sharpening, welding, polishing, and cleaning. These include:

• Bench grinder or diamond grinding wheel for sharpening edges

• Welding machine for repairing cracked bodies

• Replacement carbide or diamond segments

• Epoxy or industrial adhesives (for reattaching segments)

• Cleaning brushes and air compressors

• Lubricants and cutting oil

• Protective gear such as gloves, safety glasses, and masks

Some repair kits are offered by manufacturers like Bosch Service Kits, Hilti Spare Part Sets, and Makita Replacement Segments to simplify the process.

Step-by-Step Guide to Repairing Hollow Drill Bits

1. Inspect the Damage

The first step is to carefully examine the bit. Use magnifying glasses if needed to identify chips, cracks, or worn segments. If the bit is extensively cracked or deformed, replacement is the best option. However, if the problem is limited to dull teeth or chipped tips, repair is viable.

2. Cleaning the Drill Bit

Remove dust, dirt, and debris from the hollow part. For clogged hollow drill bits, insert a steel rod or compressed air nozzle through the center to dislodge stuck material. Washing the bit with solvent-based cleaning agents ensures that no residue remains.

3. Sharpening the Cutting Edges

Dull edges can be sharpened using a bench grinder fitted with a diamond grinding wheel. Carefully grind the cutting segments at the same angle as the original design. This process restores sharpness and improves cutting performance. Bosch and Hilti carbide-tipped hollow drill bits often require sharpening at specific angles recommended by the manufacturer.

4. Replacing Damaged Segments

If the carbide or diamond segments are chipped or broken, they must be replaced. Using a soldering or welding process, new segments can be attached to the rim. Hilti offers TE-YD Hollow Drill Bits with replaceable cutting heads, making this process easier. Makita also provides Diamond Core Bit Re-Tip Kits that allow professionals to replace worn segments instead of buying new drill bits.

5. Repairing Cracks in the Body

For minor cracks, welding is possible. Using a TIG or MIG welder, carefully weld the crack and polish the surface to restore symmetry. However, if cracks extend beyond 30% of the cylinder’s surface, the bit should be discarded as it can no longer guarantee safety during operation.

6. Straightening Bent Shanks

If the shank is slightly bent, it can be straightened using a vice and hammer with careful precision. In cases of serious shank breakage, replacement is usually the only option. Many brands, including Bosch and Milwaukee, provide shank replacement services.

7. Polishing and Final Testing

After sharpening, replacing, or welding, polish the cutting edges and internal surfaces. Apply a protective oil coating to prevent rust. Test the bit on a piece of scrap material to ensure smooth performance and correct alignment.

Maintenance Tips to Prevent Future Damage

Repairing hollow drill bits is only part of the solution; proper maintenance ensures longer service life. Here are essential maintenance tips:

• Always use coolant or water when drilling with diamond core bits to prevent overheating.

• Match the drill speed and pressure with the material type. For example, concrete requires slower speeds compared to wood.

• Avoid forcing the bit; let the cutting edges do the work.

• Clean the bit after every use to prevent debris buildup.

• Store hollow drill bits in protective cases, away from moisture and corrosive environments.

Bosch, Makita, and Hilti all provide guidelines with their hollow drill bit models to ensure users maximize tool lifespan. For example, the Bosch SDS-max Speed Clean Hollow Drill Bit specifically requires dust extraction systems to prevent overheating and blockage.

Popular Brands and Models of Hollow Drill Bits

1. Bosch

   • Bosch SDS-max Speed Clean Hollow Drill Bit (2608587166)

   • Bosch SDS-plus Hollow Drill Bit Dust Extraction System (2608587172)

2. Hilti

   • Hilti TE-CX Hollow Drill Bit (2025623)

   • Hilti TE-YD Hollow Drill Bit with replaceable cutting head

3. Makita

   • Makita Diamond Core Bit D-00800

   • Makita SDS-max Hollow Core Bit P-67904

4. Milwaukee

   • Milwaukee HollowCore Diamond Drill Bit 48-20-5085

   • Milwaukee SDS-max Hollow Drill Bit with dust extraction

5. DeWalt

   • DeWalt Hollow Core Drill Bit DT9688-QZ

   • DeWalt Diamond Core Drill Bit Set DT9589

These models are commonly used by electricians, plumbers, and construction professionals and serve as practical examples when discussing repair strategies.

Conclusion

Repairing a damaged hollow drill bit is a highly technical process that involves inspection, cleaning, sharpening, replacing segments, and welding cracks when necessary. While not every damaged bit can be restored, many can be repaired with proper tools and knowledge, significantly reducing replacement costs. Brands such as Bosch, Hilti, Makita, Milwaukee, and DeWalt provide high-quality hollow drill bits and even supply repair kits and replacement parts to make the process easier. By following the right repair techniques and maintenance practices, professionals can extend the service life of their hollow drill bits and ensure efficient and safe drilling performance in various applications.
