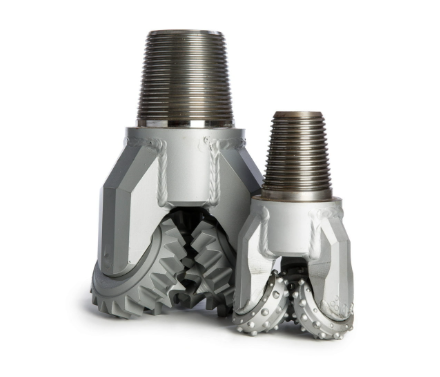

What are the most likely manifestations of a roller drill bit bearing failure?

1. Abnormal Vibration and Noise: Early Warning Signs of Bearing Degradation

Brand and Model-Specific Vibration/Noise Characteristics

• Schramm T685WS (Oil & Gas Drilling): The Schramm T685WS is a heavy-duty roller drill bit designed for deep oil and gas wells (drilling depth up to 6,000 meters). Its bearings use a single-row tapered roller design with 渗碳轴承钢 (SAE 52100) for high load resistance. In the early stages of bearing wear (e.g., minor 滚道 scratches), the T685WS exhibits a noticeable increase in high-frequency vibration (1,800–2,500 Hz)—a shift that can be detected using vibration monitoring tools like the SKF CMSS 2000. As wear progresses to rolling element deformation, the vibration amplitude doubles (from 0.15 mm/s to 0.30 mm/s or higher) and is accompanied by a sharp, metallic “squealing” noise during rotation. This noise is particularly pronounced when the drill bit is subjected to high radial loads (e.g., 400–500 kN), as the deformed rollers skip or grind against the worn 滚道.
• Atlas Copco FlexiROC D65 (Mining/Quarrying): The FlexiROC D65 is a surface drill bit for mining operations, featuring double-row spherical roller bearings with a rubber-sealed housing to prevent dust ingress. When its bearings develop loose retainers (a common issue in high-impact mining environments), the D65 produces intermittent “knocking” noises (200–300 Hz) that coincide with vibration spikes every 3–5 seconds. Unlike the high-frequency squeal of the Schramm T685WS, the D65’s noise is low-pitched and rhythmic, as the loose retainer allows rolling elements to shift out of alignment and collide with the bearing housing. A vibration analyzer (e.g., Atlas Copco’s own SmartROC Vibration Monitor) will show irregular peaks in the 200–300 Hz range, which are absent in healthy bearings.
• Boart Longyear LF130 (Geological Survey): The Boart Longyear LF130 is a lightweight drill bit for shallow geological surveys (depth up to 1,000 meters), with needle roller bearings optimized for low radial loads. Due to their small size and thin-walled design, LF130 bearings are prone to brinelling (permanent indentation of the 滚道 by rolling elements) when exposed to shock loads (e.g., hitting hard rock formations). Brinelling causes a cyclic vibration pattern (500–800 Hz) that repeats every time an indented section of the 滚道 contacts a rolling element. Operators often describe the associated noise as a “gravel-like grinding” sound, which becomes louder as the number of indentations increases. Unlike wear-related vibration, brinelling-induced vibration in the LF130 does not increase gradually—it spikes suddenly after a shock load, making it easy to link to a specific drilling event.

Technical Rationale for Vibration/Noise Differences

2. Elevated Operating Temperature: A Sign of Reduced Lubrication or Component Seizure

Brand and Model-Specific Temperature-Related Failures

• Atlas Copco Pit Viper 271 (Open-Pit Mining): The Pit Viper 271 is a large-scale drill bit for open-pit mining, equipped with double-row cylindrical roller bearings and a forced oil cooling system (flow rate: 15 L/min) to manage heat in high-load environments. A common failure mode for the Pit Viper 271 is cooling system blockage (e.g., from mineral deposits in drilling fluid), which reduces oil flow to the bearings. When this occurs, the bearing temperature rises from a normal 45°C to 85–95°C within 30 minutes. If unaddressed, the oil degrades (viscosity drops from 46 cSt to 20 cSt or lower) and loses its lubricating properties, leading to adhesive wear (metal-to-metal contact) between the rollers and 滚道. Operators can detect this early by monitoring the Pit Viper 271’s built-in temperature gauge—when the temperature exceeds 75°C, the drill’s control system triggers a warning light, but delays in response can result in bearing seizure (temperature > 120°C) and irreversible damage to the cone.
• Schramm T500 (Onshore Oil Drilling): The Schramm T500 uses angular contact ball bearings (instead of roller bearings) for faster rotational speeds (up to 120 rpm) in onshore oil wells. While ball bearings generate less friction than roller bearings, they are more sensitive to lubricant contamination (e.g., from water or drilling mud). When water infiltrates the T500’s bearing housing (often through a damaged seal), it emulsifies the grease (typically Mobil Polyrex EM), reducing its ability to lubricate. This leads to a gradual temperature increase—from 50°C to 70°C over 2–3 hours—accompanied by a “burning” odor (from grease oxidation). If the contamination is severe (water content > 5%), the bearing temperature can spike to 100°C, causing the ball bearings to deform and the raceway to develop heat cracks (visible as fine, dark lines on the metal surface).
• Boart Longyear LF90 (Environmental Drilling): The Boart Longyear LF90 is designed for environmental sampling (e.g., soil and groundwater testing) and uses plastic-retained roller bearings (nylon 66 retainers) to reduce weight. Nylon retainers are cost-effective but have a lower heat resistance (maximum operating temperature: 80°C) than metal retainers. In high-temperature drilling environments (e.g., desert regions with ambient temperatures > 45°C), the LF90’s bearing temperature can exceed the retainer’s limits, causing the plastic to soften and warp. This warping creates friction between the retainer and rolling elements, pushing the temperature to 90–95°C. Operators may not notice the temperature rise immediately, but they will observe a reduction in drill speed (as the warped retainer slows roller rotation) before the bearing eventually locks up. Unlike metal retainers, which typically fail gradually, nylon retainers in the LF90 can collapse suddenly once they reach their melting point (180°C), leading to catastrophic bearing failure.

3. Reduced Drilling Efficiency: Torque Fluctuations and Drilling Rate Declines

Brand and Model-Specific Efficiency Loss Patterns

• Atlas Copco FlexiROC T45 (Construction Drilling): The FlexiROC T45 is a medium-duty drill bit for construction (e.g., foundation piling) with a tri-cone design and self-aligning roller bearings to handle variable loads. In healthy conditions, the T45 maintains a steady torque (1,200–1,500 N·m) and an ROP of 40–60 meters per hour (m/h) in soft to medium rock (e.g., sandstone). When its bearings develop raceway 剥落 (flaking of the metal surface), the torque becomes erratic—fluctuating between 1,000 N・m and 2,000 N・m every 10–15 seconds. This inconsistency occurs because the 剥落 sections of the raceway create gaps between the rollers and the shaft, causing the drill bit to “catch” on the rock instead of rotating smoothly. Concurrently, the ROP drops to 25–30 m/h, as the bit spends more energy overcoming bearing resistance than cutting rock. Atlas Copco’s T45 is equipped with a torque sensor that logs these fluctuations, allowing operators to track efficiency loss over time—if the torque variation exceeds ±15% of the average value, it is a clear indicator of bearing raceway damage.
• Schramm T350 (Shale Gas Drilling): The Schramm T350 is optimized for shale gas drilling, where high rotational speeds (up to 100 rpm) and continuous operation (24/7) place extreme stress on bearings. Its cylindrical roller bearings are designed for high-speed performance, but they are prone to roller end wear (erosion of the roller’s outer edges) when lubrication is insufficient. As wear progresses, the T350’s torque increases steadily (from a normal 1,800 N·m to 2,500 N·m) because the worn roller ends create additional friction against the bearing flange. This “drag” reduces the drill bit’s rotational speed, even as the drill rig’s motor works harder to maintain output. The result is a gradual ROP decline—from 70 m/h to 45 m/h over 48 hours—with no sudden spikes (unlike raceway 剥落). Operators often mistake this for “rock hardening” (a geological change), but monitoring the T350’s power consumption (which increases by 30–40% as torque rises) reveals the true cause: bearing wear.
• Boart Longyear LF50 (Soil Sampling): The Boart Longyear LF50 is a small, portable drill bit for soil sampling (depth up to 500 meters) with miniature roller bearings (15 mm inner diameter) designed for low torque (200–300 N·m). Due to its compact size, the LF50’s bearings are highly sensitive to misalignment (e.g., from improper drill setup or bent shafts). When misaligned, the bearings experience uneven load distribution, leading to intermittent torque drops (from 250 N·m to 100 N·m) and a “jerky” drilling motion. The ROP becomes erratic—alternating between 15 m/h and 35 m/h—because the misaligned bearings cause the bit to wobble, reducing contact with the soil. Unlike larger drill bits (e.g., the Schramm T350), the LF50’s efficiency loss is often visible to the naked eye: the drill rod sways side-to-side during operation, and the sampling tube collects uneven soil cores. This manifestation is unique to small, lightweight drill bits like the LF50, where even minor bearing misalignment disrupts the delicate balance of the drill.

4. Visible Component Damage: Evidence After Disassembly

Brand and Model-Specific Visible Damage

• Schramm T685WS (Oil & Gas): The T685WS’s tapered roller bearings are exposed to high pressure and drilling fluid containing corrosive chemicals (e.g., hydrogen sulfide). A common failure mode here is corrosive wear, which appears as pitting (small, shallow holes) on the roller surfaces and raceways. In severe cases, the pitting expands into larger cavities, and the metal develops a reddish-brown oxide layer (from rust). The T685WS also uses a labyrinth seal to prevent fluid ingress—if this seal is damaged (e.g., cracked or distorted), drilling fluid seeps into the bearing housing, accelerating corrosion. During disassembly, operators may also find lubricant contamination (fluid mixed with grease, creating a thick, brown sludge) and seal 碎片 (small rubber or metal pieces) inside the housing. These signs confirm that fluid ingress was the root cause of the bearing’s corrosive failure.
• Atlas Copco Pit Viper 271 (Mining): The Pit Viper 271’s cylindrical roller bearings are subjected to heavy axial loads (up to 800 kN) in open-pit mining, making them prone to fatigue failure. Fatigue damage manifests as spalling—the flaking of small metal pieces (1–5 mm in size) from the raceway or roller surfaces. Spalling starts as tiny cracks beneath the metal surface (invisible to the naked eye) and grows over time, eventually breaking through the surface. During disassembly of a failed Pit Viper 271 bearing, operators will see irregular, jagged edges around the spalled areas and may find loose metal flakes in the lubricant. Unlike wear (which is uniform), spalling is localized—often occurring in the area of the raceway that bears the most load. The Pit Viper 271’s bearings also have metal retainers (steel instead of plastic), which may develop cracks or bend if the bearings seize, as the high torque forces the retainer to deform around the locked rollers.
• Boart Longyear LF130 (Geological Survey): The LF130’s needle roller bearings are lightweight but have a small contact area, making them susceptible to impact damage (e.g., from hitting boulders during drilling). Impact damage appears as flattened roller ends (the needles become oval-shaped instead of cylindrical) and raceway indentations (deep, circular marks where the rollers were forced into the metal). In extreme cases, the needles may break into short, sharp pieces, which can scratch the raceway and damage the bearing housing. The LF130’s single-lip seal is also prone to tearing during impact, allowing dust and soil particles to enter the bearing—these particles act as abrasives, causing 磨粒磨损 (uniform scratching of the rollers and raceways). During disassembly, operators will notice a “sandpaper-like” texture on the bearing surfaces and may find soil particles embedded in the lubricant, confirming that abrasion contributed to the failure.
• Atlas Copco FlexiROC D65 (Quarrying): The FlexiROC D65’s spherical roller bearings are designed for misalignment tolerance, but they are vulnerable to lubricant starvation (insufficient grease) in dusty quarry environments. Lubricant starvation causes adhesive wear (also called “scuffing”), where metal surfaces weld together due to lack of lubrication, then tear apart as the bearing rotates. This leaves dark, smooth patches on the rollers and raceways—contrasting with the bright, metallic finish of healthy bearings. In advanced stages, the scuffed areas may become hot enough to melt the metal, creating metal smears (thin, glossy layers of molten metal) on the bearing surfaces. The FlexiROC D65’s bearings also have vent holes to release pressure—if these holes are clogged with dust, pressure builds inside the housing, pushing grease out and exacerbating starvation. During disassembly, clogged vent holes and empty grease reservoirs are clear indicators that lubricant loss caused the adhesive wear.

5. Lubrication System Anomalies: Degraded Grease/Oil and Contamination

Brand and Model-Specific Lubrication Anomalies

• Schramm T500 (Onshore Oil Drilling): The T500 uses polyurea-thickened grease (Mobil Polyrex EM) to withstand high temperatures (up to 120°C) and resist water washout. When the T500’s bearing starts to fail, friction generates excessive heat, causing the grease to oxidize—a process that changes its color from pale yellow to dark brown/black and increases its viscosity (from 300 cSt to 500 cSt or higher). Oxidized grease also develops a “burnt” odor and may form hard, crusty deposits on the bearing surfaces, which further reduce lubrication. Additionally, if the T500’s grease nipple (used for re-lubrication) becomes clogged with drilling fluid, operators may unknowingly add insufficient grease, accelerating failure. Routine grease sampling (recommended every 100 hours for the T500) reveals key indicators of degradation: acid value (AV) rises from a normal 0.1 mg KOH/g to 0.5 mg KOH/g or higher, and iron content (from bearing wear) increases from <100 ppm to >500 ppm.
• Atlas Copco Pit Viper 271 (Mining): The Pit Viper 271 uses a forced oil lubrication system with mineral oil (Shell Tellus S4 VX 46) to cool and lubricate its cylindrical roller bearings. A common lubrication anomaly in the Pit Viper 271 is oil contamination by metal particles—a direct result of bearing wear. As the bearings degrade, small metal flakes (from spalling or abrasion) enter the oil circulation system, where they can be detected using particle counters (e.g., the Parker Icount PD2000). Healthy oil for the Pit Viper 271 contains <20 particles per milliliter (≥5 μm), but as the bearing fails, this count jumps to >100 particles per milliliter. Contaminated oil also has a hazy appearance (instead of being clear) and may contain visible sediment at the bottom of the oil reservoir. In severe cases, metal particles can clog the oil filter, reducing flow to the bearings and worsening lubrication starvation.
• Boart Longyear LF90 (Environmental Drilling): The LF90 uses lithium complex grease (Castrol Molub-Alloy 985) for its needle roller bearings, which are exposed to moisture in environmental drilling (e.g., groundwater sampling). Moisture ingress (through damaged seals) causes the grease to emulsify—mixing with water to form a milky, runny substance that loses its lubricating properties. Emulsified grease cannot adhere to bearing surfaces, leading to metal-to-metal contact and accelerated wear. During inspection, operators will find that the LF90’s grease has a white, frothy consistency (instead of a smooth, creamy texture) and may contain water droplets. A simple water content test (using a Karl Fischer titrator) will confirm the issue: healthy grease for the LF90 has <0.5% water content, while emulsified grease often exceeds 5%. Additionally, the LF90’s small bearing size means that even a small amount of water can cause significant damage—emulsification often leads to rust on the needle rollers within 24 hours of ingress.

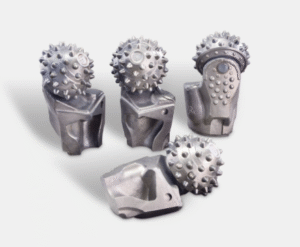

6. Cone Seizure and Bit Sticking: Advanced Failure Manifestations

Brand and Model-Specific Cone Seizure Scenarios

• Schramm T685WS (Oil & Gas): The T685WS’s cones are attached to the bearing’s outer race, so a seized bearing causes the cones to stop rotating entirely. When this happens, the drill string continues to apply downward pressure and rotational force, but the stationary cones cannot cut rock—instead, they grind against the borehole wall, creating excessive heat (temperatures >150°C) and wearing down the cone’s cutting teeth. Operators will notice an immediate drop in ROP (to near zero) and a sharp increase in torque (exceeding the drill rig’s safety limit). If the seizure is not addressed quickly, the T685WS’s cones may become welded to the borehole wall due to extreme heat, making retrieval nearly impossible. Schramm recommends installing a torque limiter on the T685WS to shut down the drill if torque exceeds 3,000 N·m—this prevents cone seizure by stopping operation before the bearing locks up.
• Atlas Copco FlexiROC D65 (Quarrying): The FlexiROC D65’s cones are designed to rotate independently, so a seized bearing in one cone causes uneven rotation (one cone spins, the other is locked). This creates a “tilting” force on the drill bit, leading to borehole deviation (the hole drifts off course) and increased stress on the drill pipe. Over time, the locked cone grinds against the rock, wearing down its teeth and generating metal shavings that accumulate in the borehole. These shavings can clog the drilling fluid circulation system, reducing cooling and lubrication to the remaining healthy bearing—accelerating its failure. If both bearings seize, the FlexiROC D65 becomes completely stuck, and operators must use a overshot fishing tool to grip the bit and pull it out. This process can take 12–24 hours, depending on the borehole depth, and costs an average of $10,000 in labor and equipment.
• Boart Longyear LF130 (Geological Survey): The LF130’s small size makes it less prone to severe cone seizure than larger drill bits, but it is still at risk if the bearing locks up during shallow drilling. When the LF130’s bearing seizes, the cone stops rotating, and the drill rod’s rotational force causes the cone to spin in place (instead of rolling), creating a “groove” in the soil or rock. This groove prevents the bit from advancing, and the drill rod may start to twist (a sign of impending breakage). Unlike larger drill bits, the LF130 can often be retrieved manually if seizure is detected early—operators simply reverse the drill’s rotation and pull upward. However, if the seizure persists, the LF130’s cone may break off entirely, leaving a fragment in the borehole that contaminates soil or groundwater samples (a major issue in environmental drilling).

Conclusion: The Importance of Contextualizing Failure Manifestations by Brand and Model
