How to choose and use electric impact drill correctly?

How to Properly Select and Use Electric Impact Drill Bits

I. Key Factors for Selecting Electric Impact Drill Bits

1. Material Compatibility: Match the Bit to the Workpiece

• Masonry (Brick, Concrete, Stone):
  Masonry materials are hard and abrasive, necessitating bits with carbide tips or tungsten carbide inserts. Look for bits labeled “masonry” or “carbide-tipped.” For example:
  • Bosch SDS-Plus Carbide Masonry Bit: Features a four-point cutting edge for fast drilling in concrete, with an SDS-Plus shank for impact drills.
  • DeWalt DW5205 SDS-Max Masonry Bit: Designed for heavy-duty concrete work, with a reinforced carbide tip to resist wear.
  • Makita B-45413 Carbide Tipped Bit: Ideal for medium-hard masonry, with a spiral shank to clear debris efficiently.
• Metal (Steel, Aluminum, Copper):
  Metal drilling requires bits with high-speed steel (HSS) or cobalt (Co) coatings to withstand heat and friction. Twist bits are common here, but for impact drills, ensure the bit is rated for impact use. Examples include:
  • Milwaukee 48-89-2410 HSS Cobalt Metal Drill Bit: Contains 5% cobalt for enhanced heat resistance, suitable for stainless steel.
  • Freud 2100 Series HSS Metal Bit: Features a 135° split point to prevent walking on metal surfaces.
  • Irwin Speedbor Metal Drill Bit: Designed with a self-centering tip for precise starts in thin metal sheets.
• Wood (Softwood, Hardwood, Plywood):
  Wood bits prioritize clean cuts and fast chip removal. Spade bits, brad-point bits, or twist bits with sharp cutting edges work well. Examples:
  • DeWalt DW1766 Spade Bit Set: Ideal for large-diameter holes in wood, with a spade design to clear sawdust quickly.
  • Bosch 2608617495 Brad Point Bit: Creates precise, splinter-free holes in hardwood, with a sharp point for accurate positioning.

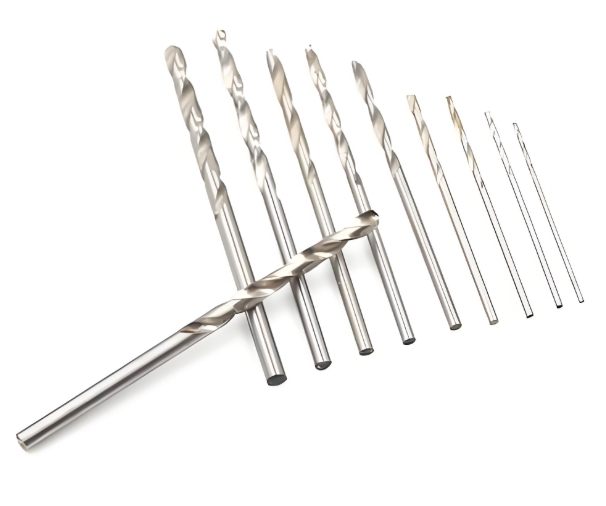

  • Makita 730404-7 Twist Bit Set: Standard HSS twist bits suitable for general woodworking, with a 118° point angle for smooth penetration.
• Plastic and Composite Materials:
  These materials require bits that minimize melting or cracking. Look for bits with sharp, narrow tips and slow cutting speeds. Examples:
  • Irwin 29329 Plastic Drill Bit: Features a parabolic flute to reduce heat and a sharp tip to prevent plastic from tearing.
  • Freud D0105 Plastic Cutting Bit: Designed with a special flute design to clear plastic chips without clogging.

2. Bit Size and Shank Type: Match to the Drill and Task

• Bit Diameter and Length:
  Choose the diameter based on the hole needed (ranging from 1/16″ to 1″ or larger). Length depends on the material thickness—ensure the bit is long enough to penetrate fully but not so long that it bends or vibrates excessively.
• Shank Type:
  • SDS-Plus: Common in medium-duty impact drills, suitable for masonry bits up to 10mm.
  • SDS-Max: For heavy-duty drills, used for larger masonry bits (14mm+).
  • Hex Shank: Universal for cordless drills and some impact drivers, providing better grip.
  • Round Shank: Basic shank for standard twist bits, suitable for light-duty tasks without impact function.
  Example Brand Models by Shank:
  • SDS-Plus: Bosch 2608625087 (masonry bit), DeWalt DW5203 (concrete bit).
  • SDS-Max: Makita B-45422 (heavy concrete bit), Milwaukee 49-56-6365 (stone bit).
  • Hex Shank: Irwin 29039 (metal bit), Freud D0102 (wood bit).

3. Quality and Brand Reputation: Invest in Durability

• Bosch: Known for carbide-tipped masonry bits with long lifespan, e.g., the Bulldog Xtreme series.
• DeWalt: Offers rugged metal and masonry bits, such as the Titanium Nitride (TiN)-coated DW1361 series.
• Milwaukee: Specializes in cobalt metal bits and heavy-duty masonry bits like the Shockwave series.
• Makita: Focuses on precision and durability, e.g., the Impact Gold masonry bits with reinforced tips.
• Freud: Renowned for wood and metal bits with advanced cutting geometries, such as the SpeedX series.

4. Coating and Material: Enhance Performance

• Carbide (WC): For masonry bits, provides extreme hardness and wear resistance.
• High-Speed Steel (HSS): Standard for metal and wood bits, balances durability and cost.
• Cobalt (Co): Added to HSS for higher heat resistance, ideal for stainless steel.
• Titanium Nitride (TiN): Coating that reduces friction and enhances hardness, extending bit life in metal.
• Black Oxide Coating: Improves heat dissipation in metal drilling, e.g., Irwin’s Black Gold series.

II. Proper Usage of Electric Impact Drill Bits: Step-by-Step Guide

1. Safety Preparations and Equipment Check

• Personal Protective Equipment (PPE):
  • Wear safety glasses to prevent debris from entering the eyes.
  • Use hearing protection if drilling for extended periods (impact drills can exceed 85 dB).
  • Gloves are optional but recommended for rough materials to prevent blisters.
• Drill and Bit Inspection:
  • Ensure the drill is in good condition: check the cord (for wired drills) for fraying, and the battery (for cordless) for charge.
  • Inspect the bit for cracks, chipped tips, or dull edges. Damaged bits can slip, overheat, or break during use.
• Workpiece Stability:
  • Clamp the material to a stable workbench to prevent movement. Unsecured materials can lead to uneven drilling or accidents.

2. Setting Up the Drill and Bit

• Bit Installation:
  • For SDS shanks: Align the bit’s tang with the drill’s chuck, push it in until it clicks, and ensure it locks securely.
  • For hex or round shanks: Use the drill’s chuck key to tighten the jaws evenly around the shank, avoiding over-tightening (which can damage the chuck) or under-tightening (which causes bit slippage).
• Drill Mode Selection:
  • Impact Mode: Use for masonry, concrete, or hard materials. The impact function breaks up the material as the bit rotates.
  • Rotation-Only Mode: Use for metal, wood, or plastic to avoid excessive vibration or material damage.
• Speed Setting:
  • High speed for soft materials (wood, plastic).
  • Medium speed for metal.
  • Low speed for masonry (to prevent overheating and bit wear).

3. Drilling Technique: Best Practices for Different Materials

• Masonry Drilling:
  1. Mark the Hole: Use a center punch to create a dimple, preventing the bit from wandering.
  2. Start Slowly: Begin at low speed to establish the hole, then increase speed once the bit is seated.
  3. Apply Steady Pressure: Let the drill’s impact function do the work; excessive pressure can overheat the bit or cause it to break.
  4. Clear Debris: Withdraw the bit periodically to remove dust and prevent clogging (critical for deep holes).
  • Recommended Bit: Bosch SDS-Plus 2608625087, suitable for concrete up to C30 strength.
• Metal Drilling:
  1. Lubrication: Use cutting oil or wax to reduce friction and heat, especially for thick metal.
  2. Slow Speed: High speeds generate excessive heat, which can dull the bit or melt the metal.
  3. Sharp Bits: Dull bits on metal cause slipping and overheating. Replace or sharpen regularly.
  4. Clamp Metal: Thin metal sheets can vibrate; clamp firmly to avoid warping.
  • Recommended Bit: Milwaukee 48-89-2410 cobalt bit for stainless steel.
• Wood Drilling:
  1. Prevent Splintering: For plywood, place a scrap wood piece under the workpiece to support the exit point.
  2. Use Brad-Point Bits: These bits center accurately and reduce splintering in hardwood.
  3. Higher Speed: Wood allows faster drilling, but adjust based on bit size (larger bits need slower speeds to avoid binding).
  • Recommended Bit: Bosch brad-point bit for precise holes in oak or maple.
• Plastic Drilling:
  1. Low Speed: High speeds melt plastic; use the lowest setting.
  2. Sharp, Narrow Tips: Bits with pointed tips prevent plastic from cracking or tearing.
  3. No Lubrication: Oil can damage plastic; instead, use a slow, steady pace.
  • Recommended Bit: Irwin 29329 plastic bit with a parabolic flute.

4. Avoiding Common Mistakes

• Overheating:
  • Symptom: Bit becomes too hot to touch.
  • Solution: Pause drilling to let the bit cool, reduce pressure, or use lubrication (for metal).
• Bit Walking:
  • Cause: Inaccurate starting or dull bit.
  • Solution: Use a center punch or start at low speed to create a guide hole.
• Excessive Vibration:
  • Cause: Wrong bit for the material or loose workpiece.
  • Solution: Switch to an impact-rated bit (for masonry) or clamp the material tightly.
• Bit Breakage:
  • Cause: Forcing the bit, using a damaged bit, or incorrect impact mode.
  • Solution: Let the drill do the work, inspect bits before use, and avoid impact mode on soft materials.

III. Maintenance and Care for Electric Impact Drill Bits

1. Cleaning and Debris Removal

• After Each Use:
  • Use a wire brush or compressed air to remove dust, metal shavings, or wood chips from the flutes.
  • For masonry bits, soak in warm soapy water to remove concrete residue, then dry thoroughly to prevent rust.
• Lubrication:
  • Metal bits: Wipe with light machine oil to prevent rust, especially cobalt or HSS bits.
  • Masonry bits: Avoid oil on carbide tips, as it can reduce adhesion in concrete.

2. Sharpening and Repair

• Metal and Wood Bits:
  • HSS bits can be sharpened with a bench grinder or specialized bit sharpener. Maintain the original point angle (118° for wood, 135° for metal).
  • Cobalt bits: Sharpen carefully to avoid overheating, which reduces cobalt’s hardness.
• Masonry Bits:
  • Carbide tips cannot be sharpened; replace the bit when the tip is worn or chipped. Signs of wear include slower drilling speed or uneven holes.

3. Storage and Organization

• Use Bit Cases:
  • Store bits in labeled plastic cases or magnetic strips to prevent damage and easy identification.
  • Separate masonry bits from metal/wood bits to avoid accidental use on wrong materials.
• Prevent Rust:
  • Keep bits in a dry place. Add a silica gel pack to cases to absorb moisture.
  • Coat metal bits with a thin layer of oil before long-term storage.

IV. Advanced Tips for Professionals and DIY Enthusiasts

• Bit Selection for Special Materials:
  • Tile and Ceramic: Use diamond-tipped or carbide-tipped tile bits, starting with a slow speed to avoid cracking.
  • Composite Materials (Fiberglass, PVC): Choose bits with fine teeth and low speeds to prevent delamination.
• Drill Bit Life Expectancy:
  • Masonry bits: 50-100 holes in concrete (depending on hardness).
  • Metal bits: 20-50 holes in steel, longer in aluminum.
  • Wood bits: Hundreds of holes if maintained properly.
• Budget vs. Quality:
  • For occasional use, mid-range brands like Irwin or DEWALT are cost-effective.
  • For professional use, invest in premium brands (Bosch, Milwaukee) for longer lifespan and reliability.
