Which is better: a tungsten steel (carbide) drill bit or an M42 drill bit?

Choosing between a tungsten carbide drill bit and an M42 drill bit depends on the material you need to machine, the required drilling speed, the desired tool life, and the type of drilling equipment you use. Both drill bits are designed for demanding machining applications, but they have significantly different material properties, hardness levels, toughness, and performance characteristics. Understanding these differences can help manufacturers, machinists, metalworking professionals, and industrial buyers select the right cutting tool for their specific production requirements.

In general, tungsten carbide drill bits are better for high-speed machining, extremely hard materials, and high-volume production, while M42 cobalt high-speed steel drill bits are better for general-purpose metal drilling, impact resistance, and applications where toughness and flexibility are important. However, neither material is universally superior. The best choice depends on the workpiece, machine rigidity, operating conditions, and overall machining cost.

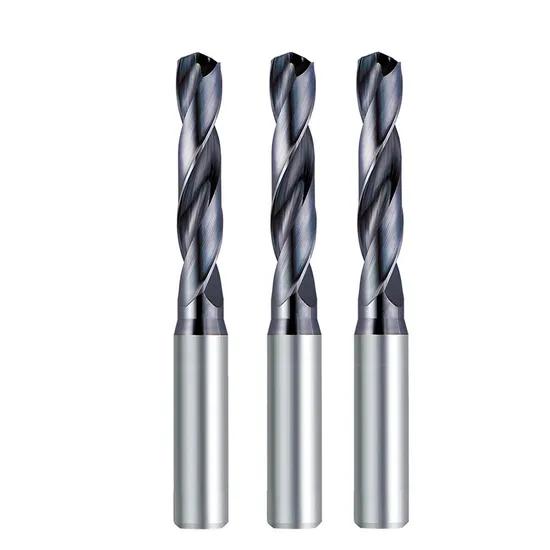

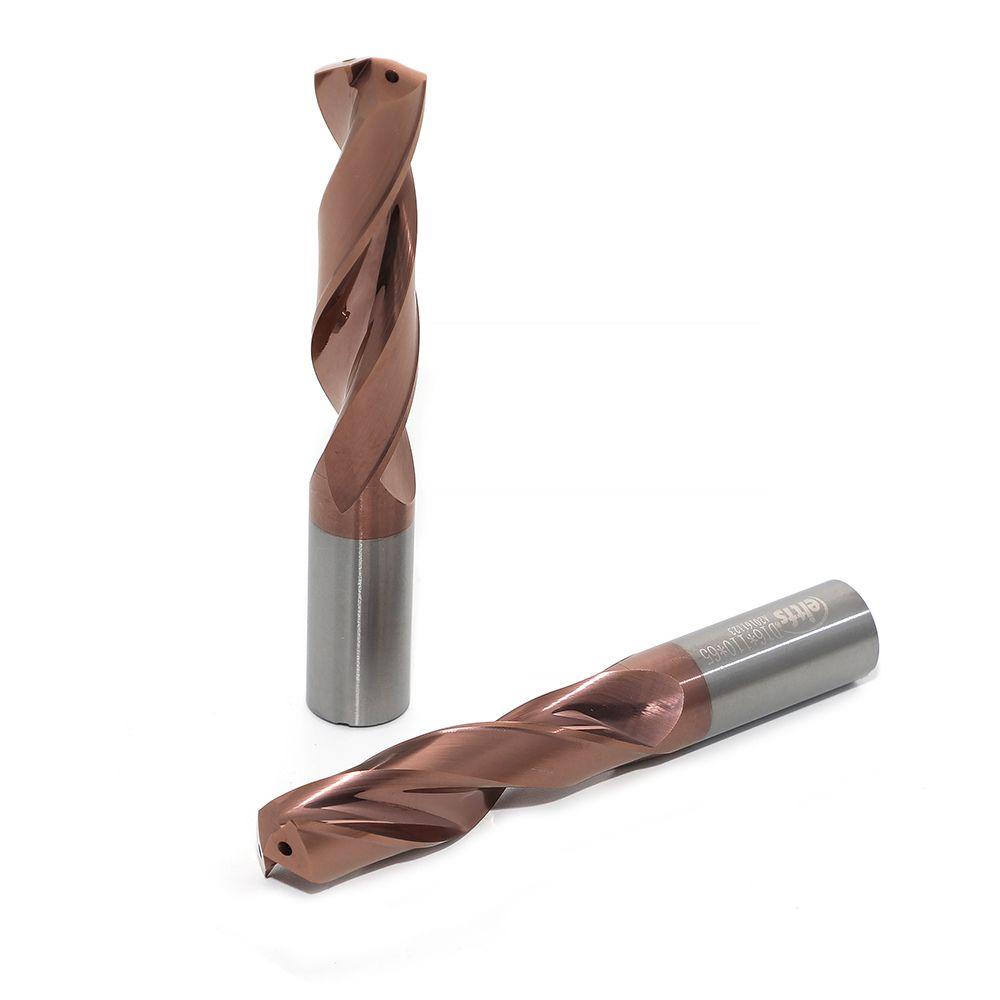

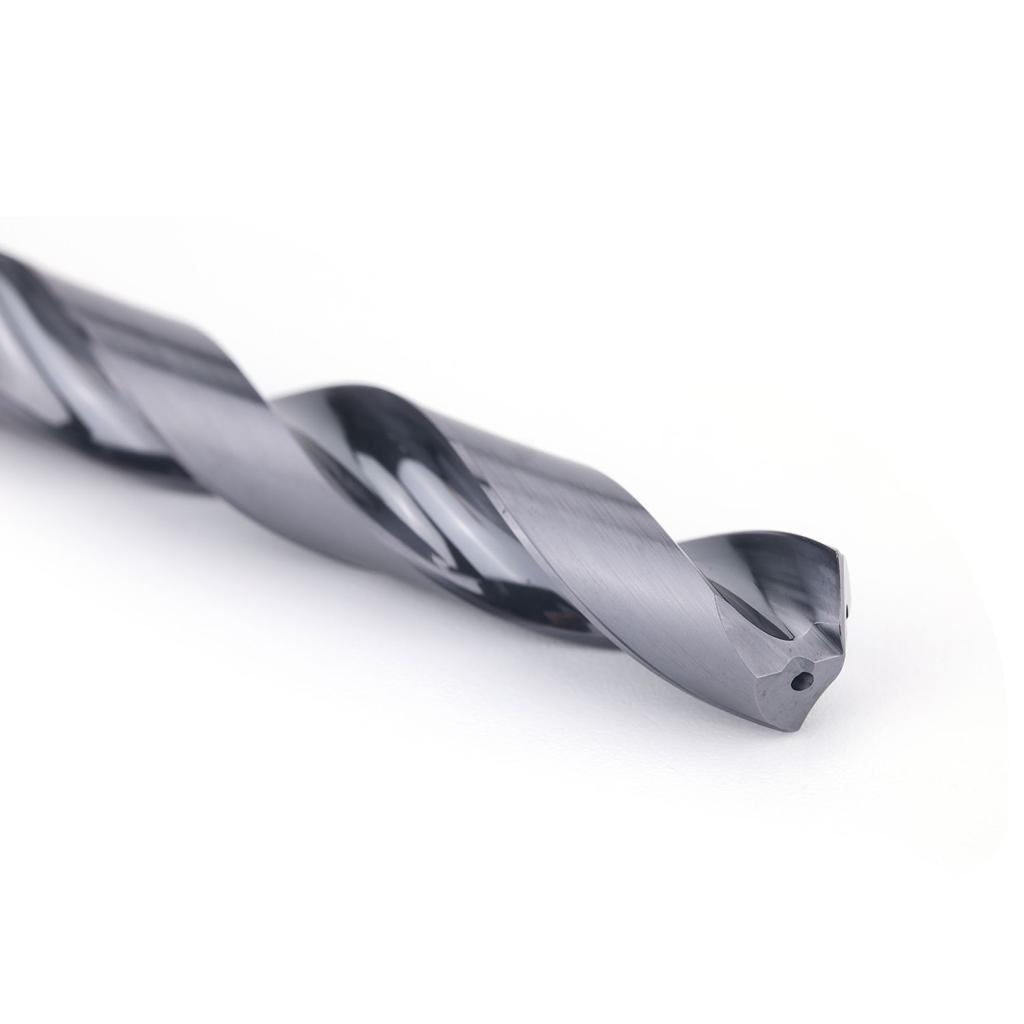

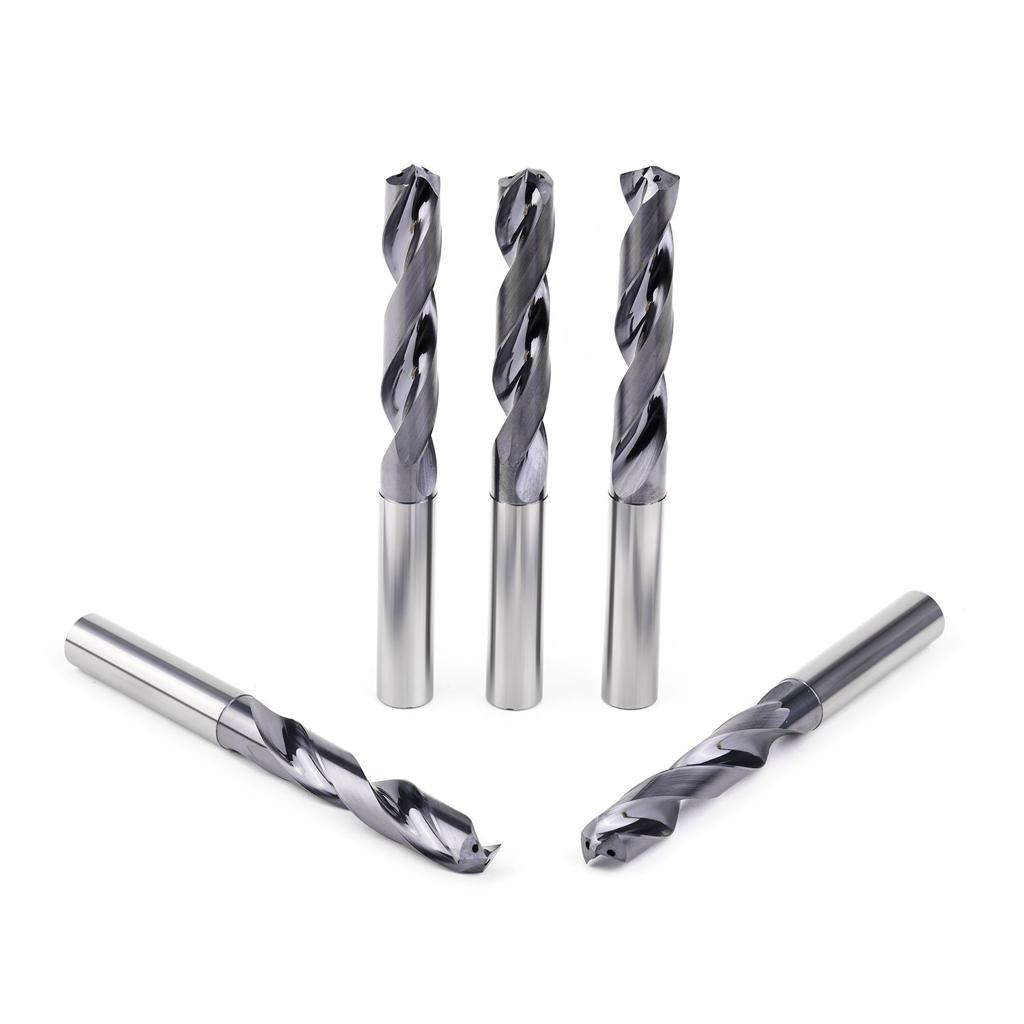

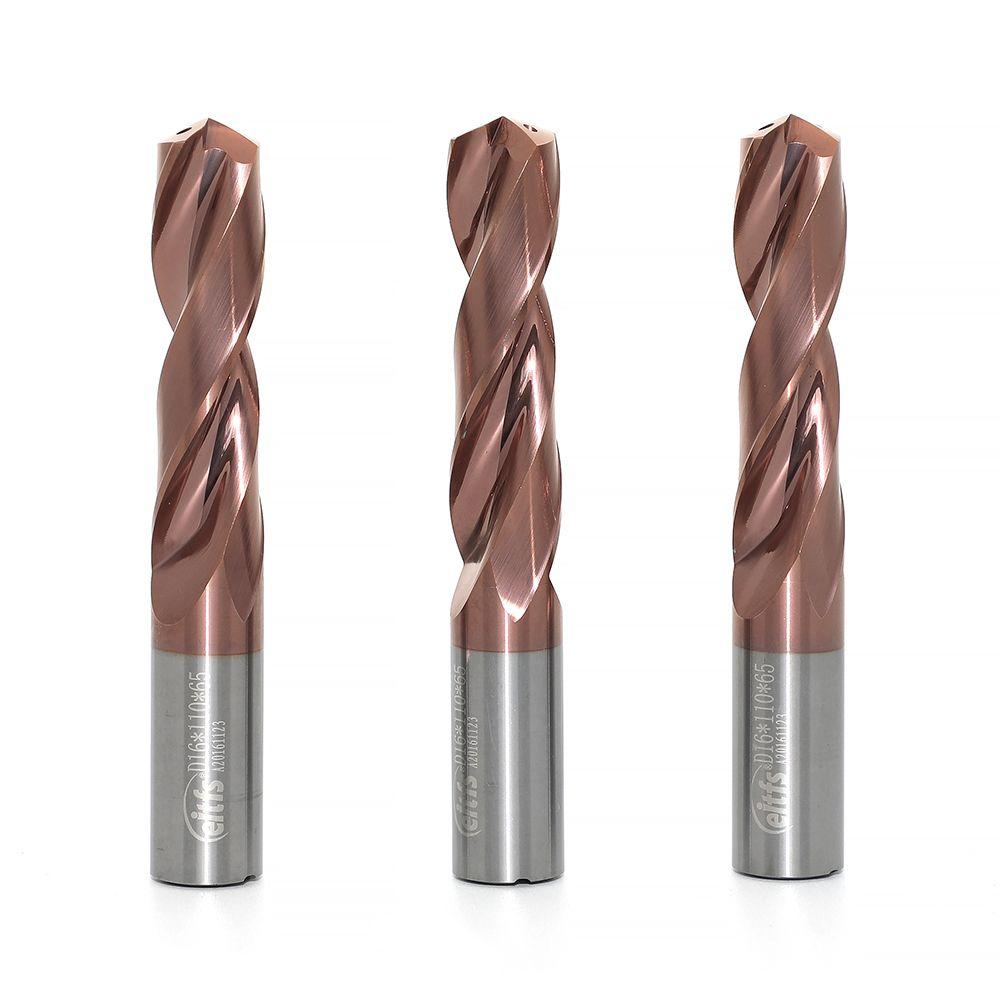

1. What Is a Tungsten Steel (Carbide) Drill Bit?

A tungsten carbide drill bit is a high-performance cutting tool manufactured from cemented carbide, a composite material typically consisting of tungsten carbide particles bonded together with a metallic binder, commonly cobalt. Although people often use the term “tungsten steel” to describe this material, cemented tungsten carbide is technically different from conventional steel. Its distinctive combination of extreme hardness, excellent wear resistance, and high-temperature performance makes it a popular choice for precision machining and industrial drilling.

One of the most important advantages of tungsten carbide is its ability to maintain cutting performance under demanding thermal conditions. During high-speed drilling, friction between the cutting edges and the workpiece generates substantial heat. Carbide can retain its hardness at elevated temperatures more effectively than conventional high-speed steel, allowing suitable carbide drill bits to operate at higher cutting speeds. This is particularly valuable in CNC machining centers, automated production lines, and manufacturing environments where cycle time and dimensional consistency directly affect productivity.

Tungsten carbide drill bits are widely used for machining cast iron, hardened materials within the tool’s specified capability, abrasive alloys, nonferrous metals, and many types of steel. Solid carbide drills are particularly effective when the machine provides adequate spindle rigidity, stable workholding, accurate alignment, and effective chip evacuation. Depending on the grade, geometry, coating, and workpiece, carbide tools can deliver excellent hole accuracy, long service life, and consistent performance across large production batches.

However, carbide has a significant limitation: it is harder but generally more brittle than M42 high-speed steel. A carbide drill bit can suffer edge chipping or catastrophic fracture when exposed to excessive vibration, sudden lateral loading, misalignment, or interrupted cutting. Therefore, carbide is not automatically the best option for handheld drilling or unstable working conditions. It performs best when the drilling setup is rigid and the operating parameters are properly controlled.

Key Advantages of Tungsten Carbide Drill Bits

• Exceptional hardness: Carbide offers outstanding resistance to abrasive wear and can maintain sharp cutting edges for extended periods under appropriate conditions.

• High cutting speeds: It supports faster machining than M42 in many industrial applications, potentially reducing production cycle times.

• Excellent heat resistance: Carbide retains useful cutting hardness at elevated temperatures, making it suitable for demanding machining operations.

• Long tool life in stable production: Properly selected carbide drills can produce many holes with consistent cutting performance, particularly in automated CNC environments.

• High dimensional consistency: Suitable carbide tooling can maintain precise hole dimensions and surface quality during repetitive production.

Disadvantages of Tungsten Carbide Drill Bits

• Higher initial purchase price: Solid carbide drills usually cost more than comparable M42 drill bits, although the total cost per hole may be lower in suitable production environments.

• Greater brittleness: The cutting edges are more vulnerable to chipping and fracture when exposed to vibration, misalignment, or excessive feed forces.

• Higher machine requirements: Carbide often benefits from rigid CNC equipment, stable workholding, and precise tool alignment.

• More demanding operating conditions: Incorrect cutting parameters, poor chip evacuation, or unsuitable tool geometry can shorten tool life significantly.

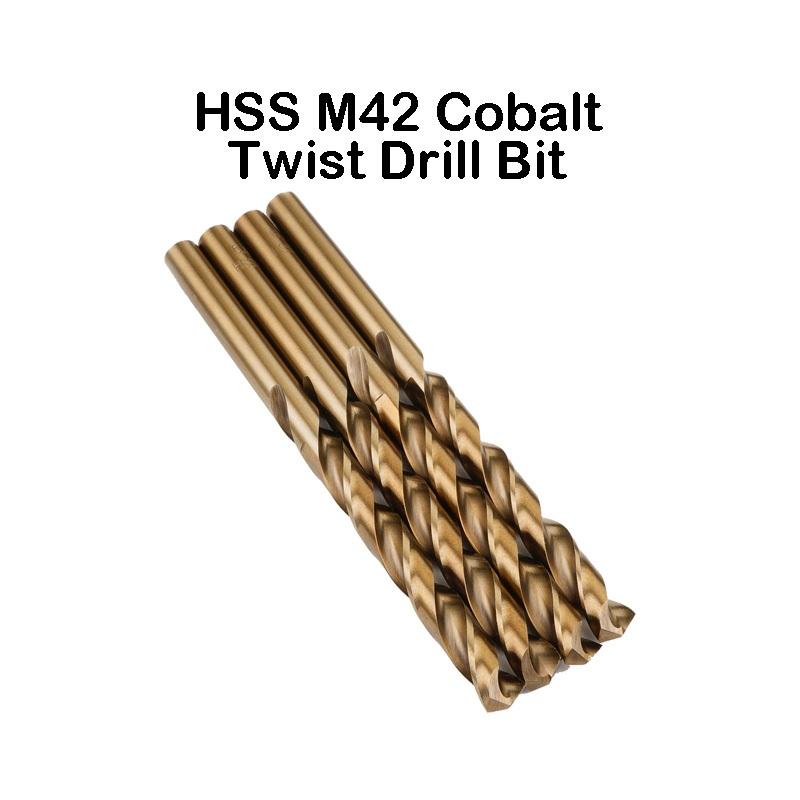

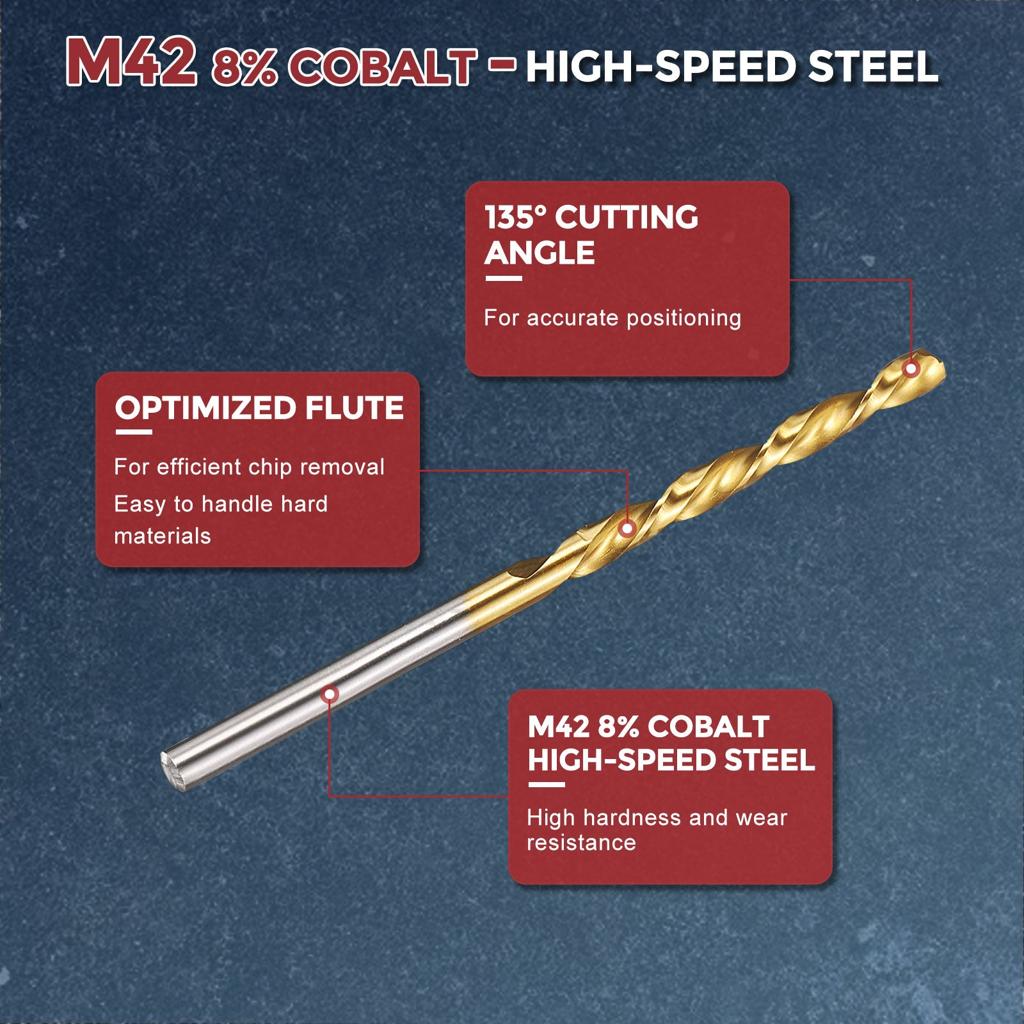

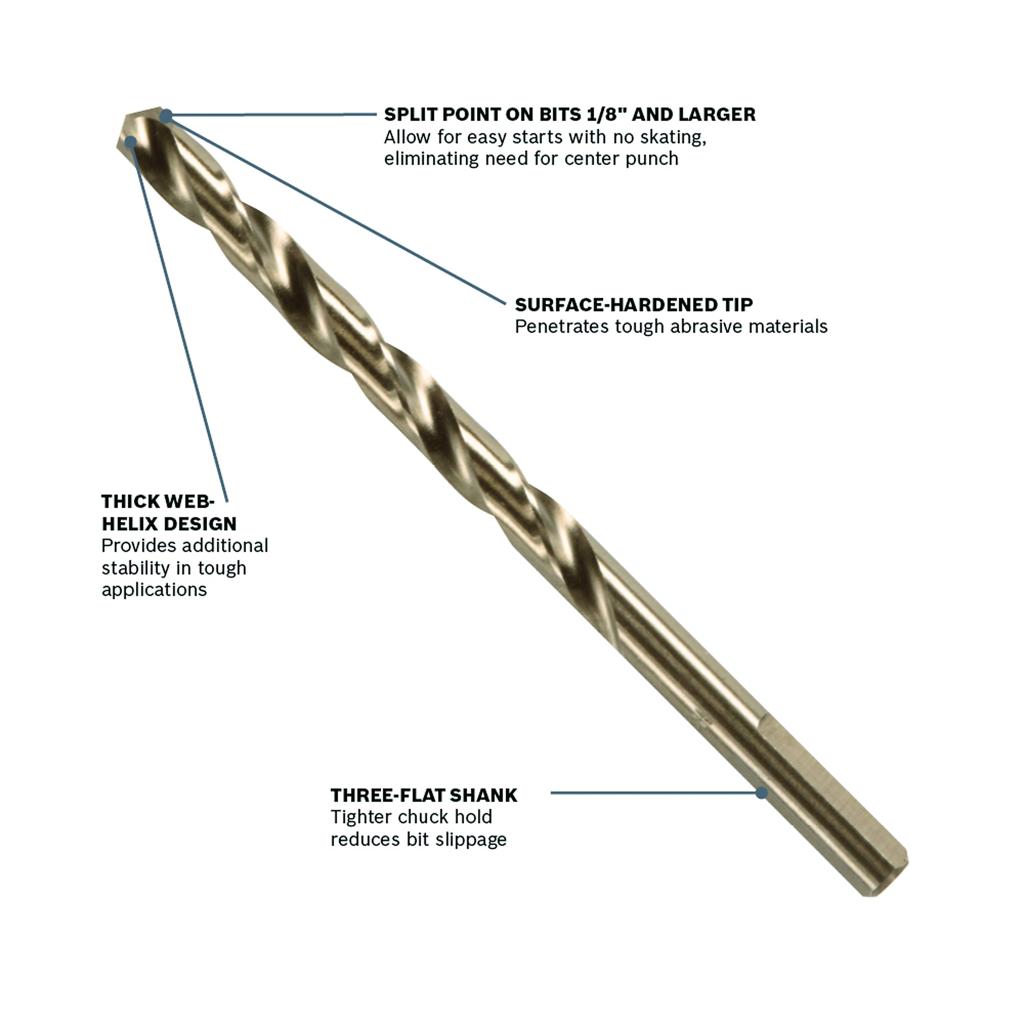

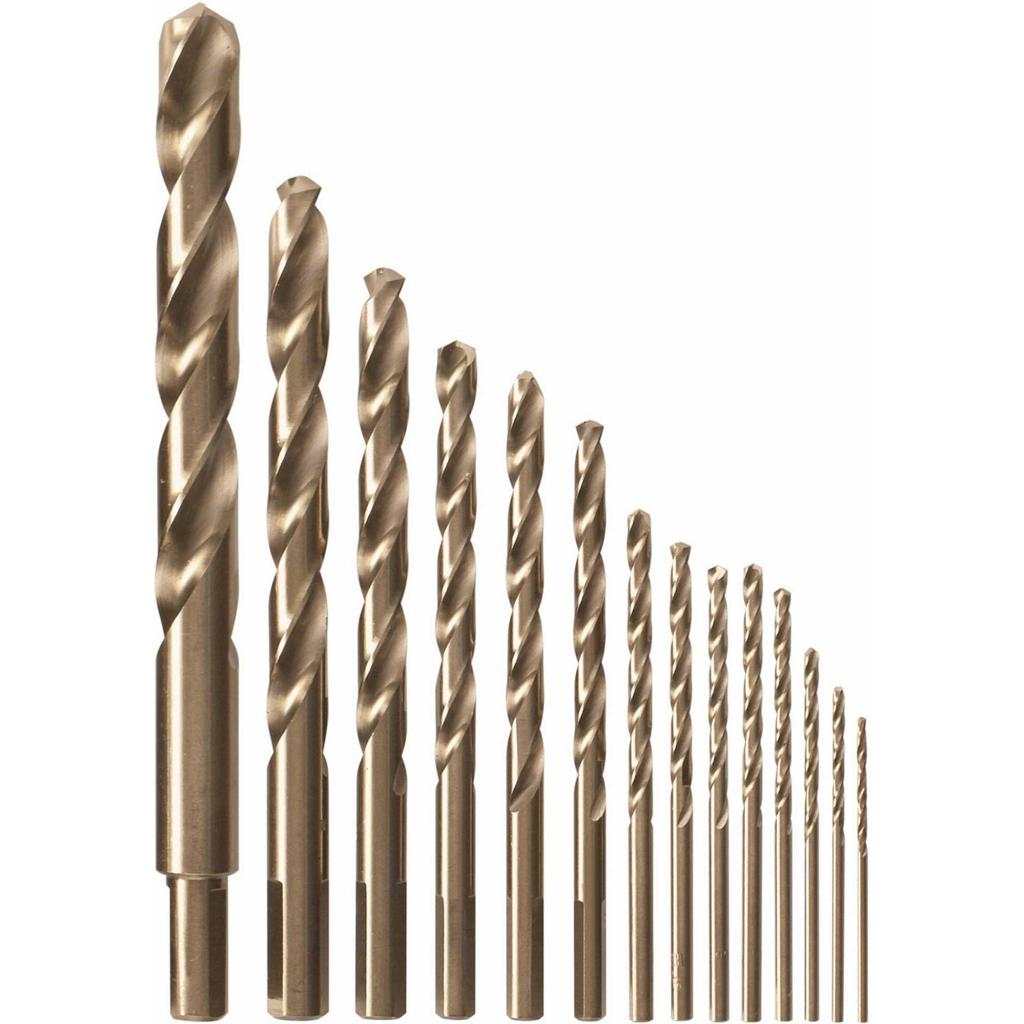

2. What Is an M42 Drill Bit?

The cobalt in M42 helps the steel retain hardness at elevated temperatures, which is particularly useful when drilling stainless steel, heat-resistant alloys, and certain high-strength metals. Stainless steel can be challenging because it tends to generate heat, work-harden under unsuitable cutting conditions, and produce chips that interfere with the cutting process. An appropriately designed M42 drill bit can handle these challenges while providing a useful balance between cutting performance and toughness.

Another important advantage of M42 is its ability to tolerate operating conditions that would be risky for a brittle carbide drill. Because high-speed steel is generally tougher and less brittle than cemented carbide, an M42 drill bit is often more forgiving of minor vibration, imperfect alignment, and variations in operator technique. This makes it a practical choice for maintenance workshops, fabrication shops, general metalworking, and drilling with portable or conventional drilling equipment.

M42 drill bits are available in different geometries, diameters, point angles, finishes, and coatings. Some feature a gold-colored finish, but appearance alone does not establish the steel grade or performance level. Buyers should check the manufacturer’s specifications to confirm the material, cobalt content, dimensional tolerances, and intended applications.

Although M42 provides excellent versatility, it generally cannot match solid carbide in maximum cutting speed or hot-hardness performance. In continuous, high-volume CNC production, an M42 drill may require lower cutting speeds and more frequent replacement or resharpening. Nevertheless, its toughness and relatively accessible price make it an economical choice for many everyday drilling tasks.

Key Advantages of M42 Drill Bits

• Excellent toughness: M42 is generally more resistant to brittle fracture than solid carbide, making it suitable for a broader range of workshop conditions.

• Strong performance in stainless steel: Its hot hardness and wear resistance make it a popular choice for drilling stainless steel and other difficult metals.

• Good heat resistance for steel tooling: M42 retains useful hardness at elevated temperatures, although its practical limits differ from those of carbide.

• Versatile applications: It can be used with many conventional drill presses, workshop machines, and appropriately operated handheld drills.

• Lower initial investment: M42 drill bits are generally less expensive than comparable solid carbide drills, making them attractive for smaller workshops and occasional jobs.

• Practical maintenance: Depending on the design and condition, M42 drill bits can often be resharpened, helping extend their useful service life.

Disadvantages of M42 Drill Bits

• Lower maximum cutting speeds: M42 generally requires slower cutting speeds than solid carbide when both tools are appropriately designed for the same operation.

• Lower wear resistance in many demanding applications: Under highly abrasive or high-speed machining conditions, M42 may wear faster than a suitable carbide grade.

• Potentially shorter production life: In repetitive industrial drilling, the tool may need more frequent replacement or resharpening.

• Heat-related performance limitations: M42 has good hot hardness for a steel cutting tool, but it does not generally retain hardness as effectively as cemented carbide at very high cutting temperatures.

3. Tungsten Carbide vs. M42 Drill Bits: Key Differences

The main distinction between these drill bits is the balance between hardness and toughness. Tungsten carbide is engineered for excellent wear resistance and high-speed cutting, whereas M42 is designed to combine high-speed steel hardness with the toughness needed for versatile metalworking.

The following table summarizes their typical characteristics. Exact performance depends on tool geometry, carbide grade, heat treatment, coating, workpiece material, and operating conditions.

Hardness and Wear Resistance

Tungsten carbide generally has a substantial advantage in hardness and resistance to abrasive wear. When drilling large quantities of holes in a suitable material, carbide can maintain its cutting edge for a long time and deliver consistent performance. This is especially beneficial in automated manufacturing environments where frequent tool changes interrupt production and increase labor costs.

M42 is also a high-performance cutting material, but its strength lies in combining hardness with toughness. When drilling conditions are less predictable, its ability to tolerate minor disturbances can be more important than achieving the highest possible hardness. Consequently, the harder tool is not necessarily the better tool for every workshop.

Cutting Speed and Production Efficiency

Carbide drill bits can often operate at significantly higher cutting speeds than M42 drill bits when the workpiece, tool geometry, coolant strategy, and machine setup permit it. Higher cutting speeds can reduce cycle times and improve throughput in production environments that manufacture hundreds or thousands of components.

M42 drill bits generally operate at lower cutting speeds, but this does not necessarily mean they are inefficient. For a workshop producing small batches, repairing machinery, or drilling a limited number of holes, the setup time and tool cost associated with carbide may outweigh the productivity gains. The most efficient tool is the one that provides the best overall result under actual working conditions.

Toughness and Resistance to Breakage

M42 usually has the advantage when drilling with portable equipment or working under conditions where vibration and alignment cannot be controlled perfectly. Its steel structure allows it to tolerate a degree of mechanical abuse that may fracture a solid carbide drill.

Carbide performs exceptionally well in stable, accurately aligned machining operations, but its brittleness makes it less forgiving. A carbide drill that encounters excessive side loading or a sudden interruption may chip or break rather than bend. For this reason, tool selection should consider not only the material being drilled but also the rigidity of the machine and the reliability of the setup.

4. Which Drill Bit Is Better for Stainless Steel?

For general-purpose drilling in a workshop, M42 cobalt drill bits are often the more practical choice. Stainless steel can work-harden if the drill rubs against the surface without cutting effectively. M42 offers a useful combination of toughness, heat resistance, and affordability, making it suitable for maintenance tasks, fabrication, and drilling a moderate number of holes.

For high-volume production, a properly designed carbide drill can offer superior productivity. Carbide is especially attractive when drilling stainless steel on a rigid CNC machine with stable workholding, suitable cutting parameters, and reliable chip evacuation. The right carbide geometry and coating can help reduce wear and maintain consistent hole quality.

However, carbide is not automatically better in every stainless steel application. Thin sheet metal, interrupted holes, unstable workpieces, and handheld drilling can favor M42 because of its greater tolerance for mechanical variation. The grade of stainless steel also matters: austenitic grades such as 304 and 316 can be particularly challenging because they work-harden and generate substantial heat during drilling.

To achieve good results with either material, use a sharp drill, maintain a controlled feed, select an appropriate cutting speed, and apply suitable cutting fluid where recommended. Avoid prolonged rubbing or unnecessary pauses while the cutting edges remain in contact with the workpiece. Correct technique often makes a greater difference than simply switching to a more expensive drill bit.

5. Which Drill Bit Is Better for Hardened Steel?

When drilling hardened steel, tungsten carbide generally has the advantage, provided the carbide grade and drill geometry are specifically suited to the workpiece hardness.

Carbide’s high hardness and compressive strength allow it to machine materials that may quickly wear or damage conventional steel cutting tools. In suitable CNC operations, specialized carbide drills can produce accurate holes in difficult alloys and certain hardened steels. The actual achievable hardness range depends on the tool design and manufacturer specifications, so the term “carbide” alone is not a guarantee that a drill can handle every hardened workpiece.

M42 is better suited to conventional metalworking applications where the material is within the drill’s recommended operating range. Although M42 offers excellent hardness compared with many other high-speed steel grades, it is not generally the first choice for drilling extremely hard steel. A standard M42 twist drill may wear rapidly or fail to cut effectively when used beyond its intended limits.

It is important to distinguish between hardened steel and exceptionally hard or heat-treated steel. If a component has been hardened to a high level, verify its actual hardness and consult the cutting-tool manufacturer’s recommendations before drilling. Depending on the material, a specialized carbide tool, a dedicated hard-material machining process, or an alternative operation may be necessary.

For hardened materials, the drilling machine must also provide sufficient rigidity. Carbide’s superior hardness is beneficial only when the cutting edge remains stable and the operating conditions prevent excessive vibration or impact loading.

6. Which Drill Bit Is Better for Cast Iron?

Tungsten carbide is often an excellent choice for cast iron, particularly in industrial production and high-volume machining. Many types of cast iron contain hard microstructural constituents and produce abrasive debris during cutting. Carbide’s wear resistance makes it suitable for maintaining cutting performance in these demanding conditions.

Carbide drills are especially useful in CNC machining environments where consistent hole dimensions and predictable tool life are important. With suitable geometry and chip management, they can support high productivity and reduce the frequency of tool changes.

M42 drill bits can also drill many types of cast iron, especially in maintenance work, smaller production runs, and conventional workshop environments. They may be more economical when only a few holes are required or when the drilling machine cannot take full advantage of carbide’s higher cutting speeds.

The choice should also account for the type of cast iron. Gray cast iron, ductile iron, and specialized cast-iron grades can differ in hardness, abrasiveness, and chip formation. Tool geometry, cutting conditions, and the manufacturer’s application guidance should therefore be considered alongside the nominal drill material.

7. Which Drill Bit Is Better for Aluminum and Nonferrous Metals?

For aluminum, copper alloys, and other nonferrous metals, both carbide and M42 can work effectively when the cutting geometry is appropriate. However, the drill’s flute design, cutting-edge sharpness, and chip evacuation characteristics can be more important than the base material alone.

Carbide drill bits are useful in high-speed CNC production because they can support fast drilling and maintain dimensional consistency. Specialized carbide drills designed for aluminum may feature polished flutes, sharp cutting edges, and geometries that help prevent material from sticking to the tool.

M42 can be a good option for general-purpose drilling of aluminum and other nonferrous materials, particularly where cost and versatility are priorities. For occasional workshop jobs, an appropriately designed M42 drill can produce satisfactory results without the need to invest in specialized carbide tooling.

One important consideration is built-up edge. Aluminum can adhere to the cutting edges of an unsuitable drill, causing poor surface quality, increased cutting forces, and dimensional problems. Selecting a drill specifically designed for the material, using appropriate lubrication, and ensuring effective chip removal can help reduce these issues.

In other words, the best choice for aluminum is not necessarily the drill with the highest hardness. It is the tool that combines suitable geometry, sharp cutting edges, reliable chip evacuation, and appropriate operating parameters.

8. Which Drill Bit Is Better for Handheld Drilling?

For handheld drilling, M42 is generally the safer and more practical option.

Handheld drills are more susceptible to movement, misalignment, changes in feed pressure, and uneven contact with the workpiece. These conditions can place lateral forces on the drill, creating a higher risk of fracture for brittle solid carbide tools. M42’s greater toughness makes it more forgiving when drilling steel plates, stainless steel components, equipment housings, and other common workshop materials.

This does not mean that carbide can never be used with portable equipment. Some specialized carbide-tipped or carbide-equipped drills are designed for particular portable drilling applications. However, solid carbide twist drills should only be used when the tool and equipment are explicitly suitable for the task.

For maintenance technicians, installers, fabricators, and users who need a versatile drill for different materials, M42 is usually the more flexible choice. It is also more economical when a drill might encounter unpredictable working conditions or when only a small number of holes are required.

When handheld drilling, secure the workpiece properly, use the correct speed, maintain alignment, and avoid excessive pressure. A properly operated M42 drill will often provide more reliable results than a carbide drill used in an unsuitable setup.

9. Which Drill Bit Offers Better Value for Money?

The best value depends on the total cost of producing an acceptable hole, not simply the purchase price of the drill bit.

M42 generally has a lower initial cost. For a small workshop, repair operation, or occasional drilling task, this can be a major advantage. If the user needs only a few holes, purchasing a more expensive carbide drill may not generate enough productivity or tool-life benefits to justify the investment.

Tungsten carbide often provides better economic value in high-volume production. Although the initial purchase price may be higher, its ability to operate at higher speeds and maintain a cutting edge for longer under suitable conditions can reduce machining time, tool-change frequency, and production interruptions.

Consider two typical scenarios.

Scenario A: Small Workshop

A technician needs to drill 10 holes in stainless steel using a conventional drill press. An M42 drill bit may be the better investment because it offers reliable cutting performance, good toughness, and a relatively low purchase price. The productivity benefits of carbide may be too small to justify its higher cost.

Scenario B: High-Volume CNC Production

A manufacturer needs to drill thousands of holes in metal components using a rigid CNC machining center. A suitable carbide drill may reduce cycle time and provide longer tool life. Even if each carbide drill costs more, the overall cost per hole may be lower because fewer tool changes and less machine downtime are required.

A useful way to compare the options is to calculate the total cost per acceptable hole:

This calculation should also account for scrap, rework, coolant requirements, resharpening, and the cost of unexpected tool breakage. The result can differ substantially between a small workshop and an automated factory.

10. How to Choose Between Tungsten Carbide and M42 Drill Bits

Before purchasing a drill bit, evaluate the following factors.

Material Hardness

Determine the hardness and composition of the workpiece. Carbide is generally preferable for highly abrasive materials, demanding machining conditions, and certain hardened materials. M42 is a strong choice for general-purpose drilling in many steels and stainless steels within its recommended application range.

Machine Type and Rigidity

Consider whether you are using a CNC machining center, a conventional drill press, or a handheld drill. Carbide generally benefits from high rigidity, accurate alignment, and stable cutting conditions. M42 is often more forgiving when the machine or workpiece setup is less rigid.

Production Volume

For occasional drilling and small batches, M42 often offers an attractive balance of cost and performance. For high-volume production, carbide may deliver better productivity and a lower total cost per hole.

Required Hole Accuracy

Both materials can produce accurate holes when used with the correct drill geometry and machining conditions. Carbide is particularly advantageous in stable, repetitive production where consistent tool dimensions and wear behavior are important. M42 can provide excellent results in conventional workshop operations when properly selected and maintained.

Cutting Speed and Cooling

Check the manufacturer’s recommended cutting speed, feed rate, and coolant requirements for the exact drill and workpiece combination. Carbide can often operate at higher cutting speeds, but excessive speed, poor chip evacuation, or inadequate rigidity can cause premature failure. M42 also requires suitable speed and feed control to prevent overheating and work-hardening.

Tool Replacement and Maintenance

Consider whether you can easily replace or resharpen the tool. M42 is commonly resharpened in workshop settings when its condition and design permit. Carbide tools may also be professionally reground, but the process requires suitable equipment and expertise. For production operations, the time required to replace a tool can be just as important as the tool’s purchase price.

11. Common Mistakes When Using Tungsten Carbide and M42 Drill Bits

Even a high-quality drill bit can perform poorly if it is used incorrectly. Understanding common mistakes helps extend tool life and improve drilling accuracy.

Using Carbide in an Unstable Setup

Carbide’s high hardness does not make it immune to mechanical damage. Excessive vibration, poor workholding, misalignment, and sudden side loading can chip or fracture the cutting edges. Use solid carbide drills with equipment and conditions appropriate for the tool’s design.

Running M42 Too Slowly or Too Quickly

An unsuitable cutting speed can cause problems with either drill material. Excessive speed can generate damaging heat and accelerate wear, while insufficient cutting speed combined with poor feed technique may encourage rubbing and work-hardening in stainless steel. Always select operating parameters according to the drill manufacturer’s recommendations.

Applying Excessive Pressure

Pressing harder does not necessarily make drilling faster. Excessive force can damage the cutting edges, distort the workpiece, or break the drill. Use a consistent feed that allows the cutting edges to remove material effectively.

Ignoring Chip Evacuation

Long chips can become trapped in the flutes, increasing friction and cutting forces. This is particularly important when drilling deep holes or machining materials that produce continuous chips. Choose an appropriate flute design, use peck drilling where recommended, and apply suitable coolant or lubrication.

Selecting a Drill Based Only on Price

A cheap drill can become expensive if it wears quickly, produces inaccurate holes, or breaks during production. Conversely, an expensive carbide drill may be an unnecessary investment for a low-volume job. Evaluate the full machining process rather than focusing only on the purchase price.

12. Can M42 Drill Bits Replace Tungsten Carbide Drill Bits?

In some applications, yes. In others, no.

M42 can replace carbide when drilling conventional steels, stainless steel, and other materials within the M42 drill’s intended operating range, particularly in general-purpose workshop tasks. It is especially attractive when the drilling equipment lacks the rigidity required for solid carbide or when the number of holes is too small to justify a higher-cost tool.

However, M42 is not a direct substitute for carbide in every high-speed machining application. If a production line depends on high cutting speeds, long tool life, or specialized machining of difficult materials, switching to M42 may increase cycle times and tool-change frequency. It may also fail to deliver the required performance when machining materials beyond its recommended hardness range.

The reverse is also true: carbide cannot automatically replace M42 in every workshop. If a job involves a handheld drill, an unstable workpiece, or significant side loading, the toughness of M42 may be more valuable than carbide’s superior wear resistance.

The correct decision should therefore be based on the complete application, including the material, machine, drilling depth, hole tolerance, operating speed, and production volume.

13. Practical Recommendations for Industrial Buyers

For industrial buyers, distributors, and manufacturing companies, choosing between tungsten carbide and M42 drill bits requires more than comparing material names. Different manufacturers offer different grades, geometries, coatings, dimensional tolerances, and quality-control standards, all of which influence performance.

When evaluating suppliers, ask for the following information:

• Material specification: Confirm whether the product is solid cemented carbide, carbide-tipped, or M42 cobalt high-speed steel.

• Dimensional range: Check available diameters, overall lengths, flute lengths, shank types, and tolerances.

• Application recommendations: Request guidance on suitable workpiece materials, cutting speeds, feed rates, and drilling depths.

• Coating information: Confirm the coating type, if any, and whether it is suitable for the intended material and coolant conditions.

• Tool life and performance data: Where possible, request test results under clearly specified machining conditions rather than relying on general performance claims.

• Quality consistency: For high-volume orders, check manufacturing tolerances, inspection procedures, batch consistency, and packaging requirements.

• Customization options: If the application requires unusual diameters, specialized point geometries, or particular shank designs, verify whether the supplier can provide a suitable solution.

For manufacturers that drill a wide range of materials, maintaining both M42 and carbide tooling can be a sensible strategy. M42 provides a versatile solution for general workshop work, while carbide supports high-speed production and demanding applications where its additional performance can justify the cost.

14. Final Verdict: Tungsten Carbide or M42 Drill Bit?

Choose an M42 drill bit if your priority is toughness, versatility, lower initial cost, and reliable general-purpose metal drilling. It is particularly suitable for maintenance work, conventional drill presses, small-batch manufacturing, and many stainless steel drilling tasks where the greater toughness of high-speed steel is beneficial.

Neither material is universally better. Carbide generally wins in hardness, wear resistance, and cutting speed, while M42 usually wins in toughness, tolerance of less-than-perfect drilling conditions, and purchase price. The best choice is the one that matches your workpiece, equipment, production requirements, and budget.

Ultimately, selecting the right drill bit is about balancing cutting performance, tool life, machining stability, and total operating cost. A carefully chosen M42 drill can outperform an unsuitable carbide drill, just as a properly specified carbide drill can deliver much better productivity than M42 in the right industrial application.
