The Ultimate Guide to Drilling Mud Formulas for Water Well Drill Bits

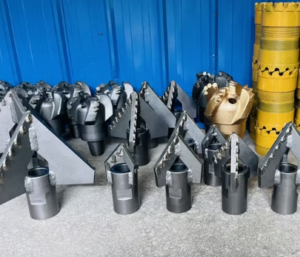

Choosing the right drilling fluid formula to pair with your water drill bit is one of the most critical factors in determining the success, speed, and safety of any borehole excavation project. Often referred to simply as drilling mud, this specialized fluid carries out a multitude of vital downhole tasks. It cools and lubricates the cutting edges of the drill bit, transports excavated cuttings upward to the surface, stabilizes the open borehole walls to prevent catastrophic cave-ins, and creates a microscopic filter cake that blocks fluid loss into surrounding permeable formations. Pairing an optimized mud chemistry with your specific water drill bit type, whether a tricone roller cone, a fixed-cutter diamond bit, or a standard drag bit, ensures minimal mechanical wear, maximum rate of penetration, and complete wellbore integrity from the surface to the target aquifer.

The Core Foundations of Water Well Drilling Mud Formulas

Before evaluating premium commercial brands and specific mud models, it is essential to understand the underlying base chemistries that constitute a high-performance water-based mud formula. For water well applications, environmental safety is paramount since the borehole directly intersects clean groundwater tables. Therefore, premium formulations rely heavily on high-yield natural sodium bentonite clays, advanced synthetic polymers, and organic biopolymers that deliver necessary rheological properties without contaminating local ecosystems.

Premium High Yield Sodium Bentonite Bases

The backbone of most vertical water well drilling operations is Wyoming sodium bentonite. This naturally occurring volcanic ash clay expands up to fifteen times its dry volume when properly hydrated in fresh water. The hydration process creates a complex card-house molecular structure that imparts viscosity and gel strength to the fluid. Viscosity ensures that the fluid thickens enough to lift dense rock and sand cuttings out of the deep hole, while gel strength provides thixotropic properties. This means that when the drill rig stops pumping mud to add another joint of drill pipe, the fluid transforms into a semi-solid gel state, suspending the cuttings in place so they do not fall back down to the bottom of the hole and pack off the bit.

Synthetic and Natural Polymer Additives

While bentonite provides excellent structural body, complex geological formations such as reactive swelling clays, shifting gravel sheets, or high-pressure sand pockets require advanced polymer enhancements. Polyanionic cellulose polymers and partially hydrolyzed polyacrylamides are regularly introduced into the base bentonite slurry. These additives encapsulate reactive shale formations to stop them from absorbing water and sloughing into the hole. Furthermore, they drastically reduce fluid loss by creating a tough, thin, flexible filter cake along the porous walls of the wellbore, sealing off thirsty sand layers before they can rob the system of its drilling fluid.

Leading Industry Brands and Premium Product Models

Achieving the perfect balance downhole requires utilizing engineered products from industry-leading manufacturers. The global drilling sector relies heavily on a few trusted brands that manufacture specialized, certified safe additives for potable water well construction.

Baroid Industrial Drilling Products

Baroid, a dedicated pioneer division of Halliburton, produces some of the most widely used drilling fluid products in the water well and environmental services industries. Their products are meticulously engineered to blend smoothly, react fast, and clear out cleanly during well development.

QUIK GEL High Yield Bentonite This product represents the industry standard for premium, finely ground Wyoming sodium bentonite. It is specially treated to yield more than twice the viscosity of standard API-grade bentonite. When paired with a tricone or drag bit in loose, unconsolidated formations, QUIK GEL rapidly builds a dense mud layer that stabilizes fragile walls and completely eliminates fluid loss into highly permeable sand and gravel beds.

QUIK MUD GOLD Clay and Shale Stabilizer This highly concentrated, dry granular polymer is engineered for quick dispersion without creating fish-eyes or clumps in the mixing tank. It provides exceptional inhibition against reactive swelling clays. When your water drill bit strikes sticky clay layers that threaten to ball up the bit cutters, adding QUIK MUD GOLD shields the clay particles, preventing them from swelling and keeping the drill bit cutting teeth completely clean for optimal rate of penetration.

EZ MUD Liquid Polymer Emulsion A liquid polyacrylamide emulsion used to rapidly boost viscosity, enhance cuttings encapsulation, and increase borehole lubricity. It is highly effective when drilling long vertical sections where drag and torque on the drill string become problematic. EZ MUD coats the drill string and the bit, forming a slippery barrier that keeps mechanical friction exceptionally low.

Wyo Ben Bentonite Minerals

Wyo-Ben is a premier independent miner and processor of high-grade Wyoming bentonite, recognized globally for creating highly efficient, single-bag fluid systems designed to simplify field mixing operations.

MAX GEL Premium Bentonite This is Wyo-Ben’s flagship premium-grade Wyoming sodium bentonite viscosifier. It offers a remarkable 220-barrel yield per ton of material, meaning a driller needs to haul and mix significantly fewer bags to achieve the desired viscosity. It mixes effortlessly under low-shear conditions and provides immediate hole-cleaning power, making it an excellent choice for deep potable water wells using heavy roller-cone bits.

TRU BORE Concentrated Drilling Fluid TRU-BORE is a highly advanced, proprietary one-sack system that combines premium bentonite with specialized dry polymers. It is specifically formulated for difficult boring conditions where maximum hole stabilization and extreme filtration control are required simultaneously. It builds an exceptionally thin, impermeable filter cake that protects weak formations from washing out under high fluid velocities.

WYO VIS HP Polymeric Viscosifier A fast-acting, high-performance dry polymer designed to build instant viscosity in freshwater systems while offering superior stabilization for sensitive shale and clay strata. WYO-VIS HP forms a protective polymer shield around the excavated cuttings, preventing them from disintegrating into fine particles that would otherwise contaminate the mud system and cause excessive abrasive wear on the drill bit jets.

CETCO Drilling Products

CETCO, a subsidiary of Minerals Technologies Inc., supplies an extensive portfolio of advanced drilling fluids, grouts, and polymers that carry full NSF/ANSI/CAN Standard 60 certifications, making them completely safe for use in drinking water aquifers.

HYDRAUL EZ High Yield Fluid HYDRAUL-EZ is a specially treated high-yield sodium bentonite drilling fluid designed primarily for difficult vertical and horizontal directional drilling. It contains proprietary additives that optimize liquid flow characteristics, ensuring low pumping pressure while maintaining maximum cutting-suspension capabilities. It pairs perfectly with specialized water drill bits navigating mixed rocky soils.

PREMIUM GEL Wyoming Bentonite This is a pure, non-treated, high-grade API 13A Section 9 sodium bentonite clay. It is highly valued in applications where organic additives are restricted or where a natural, predictable base fluid is needed to custom-formulate a site-specific mud recipe using specialty synthetic polymers.

Tailoring the Mud Formula to Specific Geological Formations

A drill bit cannot perform efficiently if the mud formula does not match the exact challenges of the layer being drilled. No single formula works for every foot of a well. The fluid properties must be dynamically adjusted as the bit cuts through different strata.

Formulas for Unconsolidated Sand and Loose Gravel

When drilling through loose sand and gravel beds, the primary dangers are fluid loss and borehole collapse. Sand has no natural cohesion, meaning it will slide into the hole if not supported by external hydrostatic pressure and a solid filter cake.

• The Recommended Formula Mix: Hydrate Wyo-Ben MAX GEL or Baroid QUIK-GEL to a concentration of 25 to 30 pounds per 100 gallons of clean water. To this base, add Baroid EZ MUD or Wyo-Ben TRU-BORE at a low concentration to cross-link the bentonite particles.

• The Downhole Mechanism: This formula creates a highly viscous slurry with an enhanced gel structure. The premium bentonite particles wedge themselves into the microscopic voids between the sand grains, while the polymer chains tie the clay platelets together. This action creates an immediate, rubbery, impermeable barrier that seals the wall, stopping water from escaping and allowing the mud’s hydrostatic weight to hold back the loose formations cleanly.

Formulas for Highly Reactive Swelling Clays

Sticky, reactive clays absorb water from standard drilling fluids, swelling drastically until they narrow the borehole diameter, pack off the drill bit cutting structure, and cause high torque or stuck pipe situations.

• The Recommended Formula Mix: Utilize a low-solids, clear polymer system or a lightly treated bentonite base. Mix clean water with Baroid QUIK MUD GOLD or Wyo-Ben WYO-VIS HP at approximately 0.5 to 1.5 pounds per 100 gallons. If a clay base is absolutely required for lifting power, use a minimal amount of CETCO PREMIUM GEL paired with a dedicated inhibitor like Wyo-Ben CLAYMASTER.

• The Downhole Mechanism: The specialized polymer chains actively attach to the clay faces exposed by the water drill bit. By coating these surfaces, the polymer blocks water molecules from penetrating the clay structure, completely arresting the swelling process. The cuttings maintain their solid integrity, passing smoothly up the annulus as discrete pieces rather than dissolving into a sticky paste that destroys bit efficiency.
