Are Bosch Impact Drill Bits Round or Square? A Comprehensive Analysis of Bosch Drill Bit Shapes, Models, and Applications

When discussing the geometry of Bosch impact drill bits, the most common and widely recognized shape is round (cylindrical). This design is fundamental to the functionality of drill bits, as it allows for efficient rotation and penetration into various materials. However, the term “square” might be misinterpreted in this context—it could refer to the cross-section of the drill bit’s shank (the part that fits into the drill chuck) or to specialized drill bits designed for specific tasks, such as square-hole drills or mortising bits. Below, we will explore the shapes of Bosch impact drill bits in detail, covering their design principles, popular models, and applications across different industries.

1. The Dominance of Round (Cylindrical) Drill Bits in Bosch’s Product Line

The majority of Bosch impact drill bits are cylindrical in shape, featuring a helical flute design that aids in chip removal during drilling. This shape is optimized for high-speed rotation and impact drilling, making it suitable for a wide range of materials, including wood, metal, concrete, and masonry. The cylindrical design ensures uniform stress distribution along the bit’s length, reducing the risk of breakage and enhancing durability.

1.1 Key Features of Round Bosch Impact Drill Bits

• Helical Flutes: The spiral grooves on the bit’s surface help evacuate debris from the hole, preventing clogging and overheating.
• Pointed Tip: The sharp, conical tip allows for precise starting and reduces the force required to initiate drilling.
• Shank Design: The shank (the part inserted into the drill chuck) is typically round and may feature a reduced diameter or a specific geometry (e.g., hexagonal) to prevent slippage during high-torque applications.
• Material Composition: Bosch uses high-speed steel (HSS), carbide, or cobalt alloys to manufacture drill bits, ensuring resistance to wear and heat buildup.

1.2 Popular Models of Round Bosch Impact Drill Bits

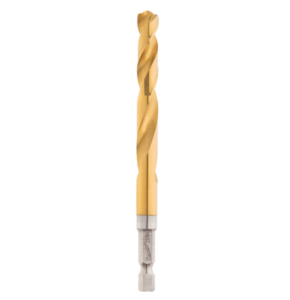

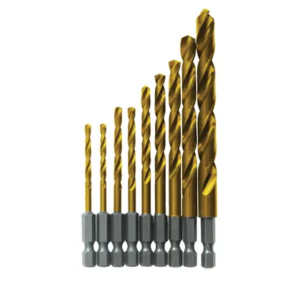

• Bosch Impact Drill Bit Set (Model: 2607019321): This set includes multiple round drill bits in various diameters (e.g., 4mm, 5mm, 6mm, 8mm, 10mm) designed for general-purpose drilling in wood, metal, and plastic. The bits feature a 1/4-inch hex shank for compatibility with impact drivers.
• Bosch Blue Granite Hammer Drill Bit (Model: 2608596093): Specifically engineered for masonry and concrete drilling, these round bits have a carbide tip for extended life and a helical flute design for efficient debris removal. They are available in diameters ranging from 5mm to 16mm.
• Bosch Daredevil Multipurpose Drill Bit (Model: 2608596089): These round bits are designed for high-speed drilling in wood, metal, and plastic. They feature a unique flute design that reduces heat buildup and a reinforced tip for durability.

2. Square-Shaped Elements in Bosch Drill Bits: Shanks and Specialized Bits

While the cutting portion of Bosch impact drill bits is predominantly round, there are instances where square-shaped elements are incorporated into the design. These typically relate to the shank or specialized drill bits designed for specific tasks.

2.1 Square-Shank Drill Bits

Some Bosch drill bits feature a square shank instead of a round one. This design is often used in drill bits intended for use with SDS (Slotted Drive System) chucks, which are common in rotary hammers and demolition hammers. The square shank provides a secure, non-slip connection between the bit and the chuck, ensuring efficient transfer of torque and impact energy.

Example: Bosch SDS-Plus Hammer Drill Bits

• Model: 2608596095 (SDS-Plus Carbide-Tipped Masonry Drill Bit): These bits have a square shank (SDS-Plus) and are designed for heavy-duty drilling in concrete, brick, and stone. The carbide tip ensures long life, while the square shank prevents slippage during high-impact applications.
• Model: 2608596097 (SDS-Plus Rotary Hammer Drill Bit): Similar to the above, these bits are optimized for use with SDS-Plus chucks and are suitable for drilling large-diameter holes in tough materials.

2.2 Specialized Square-Hole Drill Bits

Bosch also offers specialized drill bits designed to create square holes, such as mortising bits or keyhole bits. These bits are less common in general-purpose impact drilling but are essential for specific woodworking or metalworking tasks.

Example: Bosch Mortising Chisel and Bit Set

• Model: 2610906385: This set includes a square chisel and a matching drill bit designed for creating mortises (square holes) in wood. The chisel cuts the sides of the hole, while the drill bit removes the waste material.

3. The Role of Drill Bit Geometry in Performance

The shape of a drill bit significantly impacts its performance, durability, and suitability for specific applications. Bosch’s engineering team carefully designs each bit to optimize its geometry for the intended task.

3.1 Round Drill Bits: Versatility and Efficiency

Round drill bits are the most versatile option, capable of handling a wide range of materials and drilling tasks. Their helical flute design ensures efficient chip removal, reducing heat buildup and prolonging bit life. The pointed tip allows for precise starting, while the cylindrical body provides stability during drilling.

3.2 Square-Shank Drill Bits: Enhanced Torque Transfer

Square-shank drill bits, particularly those designed for SDS chucks, excel in high-torque applications. The square shape prevents slippage, ensuring that all the power generated by the drill is transferred to the bit. This is crucial for drilling into hard materials like concrete and masonry, where high impact forces are required.

3.3 Specialized Square-Hole Drill Bits: Precision and Niche Applications

Specialized square-hole drill bits, such as mortising bits, are designed for precision tasks that require square or rectangular holes. These bits are less common in general construction but are indispensable in woodworking, cabinetry, and metal fabrication.

4. Choosing the Right Bosch Impact Drill Bit for Your Project

Selecting the appropriate drill bit depends on several factors, including the material being drilled, the desired hole size, and the type of drill being used. Here are some guidelines to help you choose the right Bosch impact drill bit:

4.1 For General-Purpose Drilling in Wood, Metal, and Plastic

• Opt for round drill bits with a helical flute design, such as the Bosch Impact Drill Bit Set (Model: 2607019321). These bits are versatile and suitable for most DIY and professional applications.
• Consider the bit’s diameter: Choose a diameter that matches the size of the hole you need to drill. Smaller bits (e.g., 4mm, 5mm) are ideal for precision work, while larger bits (e.g., 10mm, 12mm) are better for structural applications.

4.2 For Drilling into Concrete, Brick, and Masonry

• Use round hammer drill bits with a carbide tip, such as the Bosch Blue Granite Hammer Drill Bit (Model: 2608596093). These bits are designed to withstand the high impact forces generated by rotary hammers.
• Opt for SDS-Plus or SDS-Max shanks: If you’re using a rotary hammer or demolition hammer, choose bits with a square shank (SDS-Plus or SDS-Max) for a secure, non-slip connection.

4.3 For Specialized Tasks (e.g., Creating Square Holes)

• Use specialized square-hole drill bits, such as the Bosch Mortising Chisel and Bit Set (Model: 2610906385). These bits are designed for precision woodworking and metal fabrication tasks.

5. Where to Buy Bosch Impact Drill Bits

Bosch impact drill bits are widely available at hardware stores, home improvement centers, and online retailers. For a convenient shopping experience, you can visit www.xiangriyang.com, which offers a comprehensive selection of Bosch tools and accessories. Here are some additional tips for purchasing Bosch drill bits:

• Check for compatibility: Ensure that the drill bits you choose are compatible with your drill’s chuck type (e.g., keyed, keyless, SDS).
• Read reviews: Look for customer reviews to gauge the performance and durability of specific drill bit models.
• Consider bundled sets: Purchasing a set of drill bits in various sizes can be more cost-effective than buying individual bits.

6. Conclusion: The Versatility of Bosch Impact Drill Bits

In summary, Bosch impact drill bits are predominantly round (cylindrical) in shape, designed for efficient rotation and penetration into various materials. However, square-shaped elements, such as square shanks for SDS chucks or specialized square-hole drill bits, are also incorporated into Bosch’s product line to cater to specific applications. Whether you’re drilling into wood, metal, concrete, or creating precision square holes, Bosch offers a wide range of drill bits to meet your needs. By understanding the geometry and design principles behind these bits, you can select the right tool for your project and achieve optimal results.

For more information on Bosch impact drill bits and to explore their full range of products, visit www.xiangriyang.com today.
