How Long Should a High-Quality Water Drill Bit Last on Average?

Introduction

A high-quality water drill bit is an essential tool in industries such as construction, mining, geological exploration, water well drilling, and stone processing. These bits are designed to drill efficiently through hard materials while using water for cooling, lubrication, and debris removal. One of the most common questions among professionals and buyers is: How long should a high-quality water drill bit last on average?

The answer is not simple because the lifespan of a water drill bit depends on many factors, including the type of material being drilled, drilling speed, pressure, cooling efficiency, bit quality, and maintenance practices. In general, a premium water drill bit can last anywhere from 50 to 500 drilling hours, or in some applications, hundreds to thousands of holes before it requires replacement.

Understanding Water Drill Bits

What Is a Water Drill Bit?

A water drill bit is a specialized drilling tool that uses water during operation to cool the bit, reduce friction, and flush away debris. Water-assisted drilling is especially important when drilling through hard materials such as:

• Concrete
• Granite
• Marble
• Quartz
• Asphalt
• Metal and composite materials
• Rock formations in mining and well drilling

Main Types of Water Drill Bits

Diamond Core Drill Bits

These are widely used for drilling concrete, stone, and ceramics. They contain industrial-grade diamonds embedded in the cutting edge.

PDC (Polycrystalline Diamond Compact) Drill Bits

Common in oil, gas, and geological drilling, PDC bits use synthetic diamond cutters for extreme durability.

Tungsten Carbide Water Drill Bits

These bits are suitable for masonry, rock, and heavy-duty construction applications.

Roller Cone Water Drill Bits

Often used in deep well and mining operations, these bits use rotating cones with hard cutting teeth.

Average Lifespan of a High-Quality Water Drill Bit

The lifespan of a water drill bit varies significantly depending on the application. Below are typical averages for high-quality bits.

Diamond Core Drill Bits

• Average lifespan: 100–500 holes or 20–100 drilling hours
• Best for: Concrete, granite, marble, tiles
• Factors affecting life: Aggregate hardness, reinforcement steel, water flow, drilling speed

A premium diamond core bit used on reinforced concrete with proper water cooling can often drill 200–300 holes before noticeable wear occurs. In softer stone materials, the same bit may exceed 500 holes.

PDC Drill Bits

• Average lifespan: 50–300 drilling hours
• Best for: Geological exploration, oil and gas drilling
• Factors affecting life: Rock abrasiveness, drilling pressure, rotational speed, mud/water circulation

High-end PDC bits are engineered for long continuous operation and can drill thousands of meters in suitable formations.

Tungsten Carbide Water Drill Bits

• Average lifespan: 50–200 drilling hours
• Best for: Masonry, rock, heavy construction
• Factors affecting life: Impact force, material hardness, cooling efficiency

Carbide bits generally wear faster than diamond or PDC bits but are more affordable and versatile.

Roller Cone Drill Bits

• Average lifespan: 30–200 drilling hours
• Best for: Deep wells, mining, large-scale rock drilling
• Factors affecting life: Rock type, weight on bit, rotation speed, bearing quality

Premium roller cone bits with sealed bearings and advanced tooth materials can achieve exceptional longevity in demanding environments.

Factors That Determine Drill Bit Lifespan

Material Hardness

The hardness and abrasiveness of the material being drilled is the single biggest factor affecting bit life.

• Soft materials (limestone, soft concrete): longer bit life
• Medium-hard materials (standard concrete, sandstone): moderate bit life
• Hard materials (granite, quartz, basalt): shorter bit life

For example, drilling quartz-rich granite can wear out a bit much faster than drilling ordinary concrete.

Drilling Speed and RPM

Using the correct rotational speed is critical. Excessive RPM can overheat the bit and accelerate wear, while too low RPM may cause inefficient cutting and increased friction.

Manufacturers usually provide recommended speed ranges based on bit diameter and material type.

Feed Pressure

Applying too much pressure can damage the cutting segments, while too little pressure may cause glazing and reduced cutting efficiency. Proper feed pressure allows the bit to cut smoothly without excessive stress.

Water Flow and Cooling

Adequate water supply is essential for:

• Cooling the bit
• Reducing friction
• Flushing debris
• Preventing segment damage

Insufficient water can drastically reduce bit lifespan, especially for diamond bits.

Bit Quality and Manufacturing

High-quality bits use superior materials and precision manufacturing, including:

• Industrial-grade diamonds
• High-density carbide
• Advanced bonding matrices
• Precision-balanced bodies
• Heat-resistant alloys

Cheap or poorly manufactured bits may wear out quickly, lose segments, or crack under stress.

Operator Skill

Experienced operators can significantly extend bit life by:

• Maintaining proper alignment
• Using correct pressure and speed
• Ensuring adequate cooling
• Avoiding sudden impacts and binding

Maintenance Practices

Regular cleaning, inspection, and proper storage help prevent premature wear and damage. For example, removing debris buildup and checking for segment wear can extend the usable life of the bit.

Signs That a Water Drill Bit Is Worn Out

A drill bit should be replaced when it shows signs of excessive wear or reduced performance. Common indicators include:

• Slower drilling speed
• Increased vibration or wobbling
• Overheating despite adequate water flow
• Visible segment wear or loss
• Reduced hole accuracy
• Cracking or damage to the bit body
• Excessive noise during operation

Continuing to use a worn-out bit can damage the drill, reduce productivity, and compromise safety.

How to Extend the Lifespan of a Water Drill Bit

Use the Correct Bit for the Material

Different materials require different bit designs and bonding matrices. For example:

• Soft concrete: softer bond diamond bit
• Hard granite: harder bond diamond bit
• Reinforced concrete: turbo or segmented diamond bit

Maintain Proper Water Flow

Ensure a consistent and adequate water supply during drilling. Clean clogged water channels and use clean water to prevent sediment buildup.

Follow Recommended Speeds and Pressure

Always follow the manufacturer’s guidelines for RPM and feed pressure. Avoid forcing the bit through the material.

Dress Diamond Bits When Necessary

Diamond bits can become glazed, especially when drilling hard materials. Dressing the bit with an abrasive stone can expose fresh diamonds and restore cutting performance.

Avoid Dry Drilling Unless Designed for It

Water drill bits are designed for wet operation. Dry drilling can cause overheating and rapid wear unless the bit is specifically rated for dry use.

Store Bits Properly

Store bits in a dry, clean environment and protect them from impacts and corrosion.

Popular High-Quality Water Drill Bit Brands and Models

Below are some well-known brands and models recognized for durability and performance.

Husqvarna

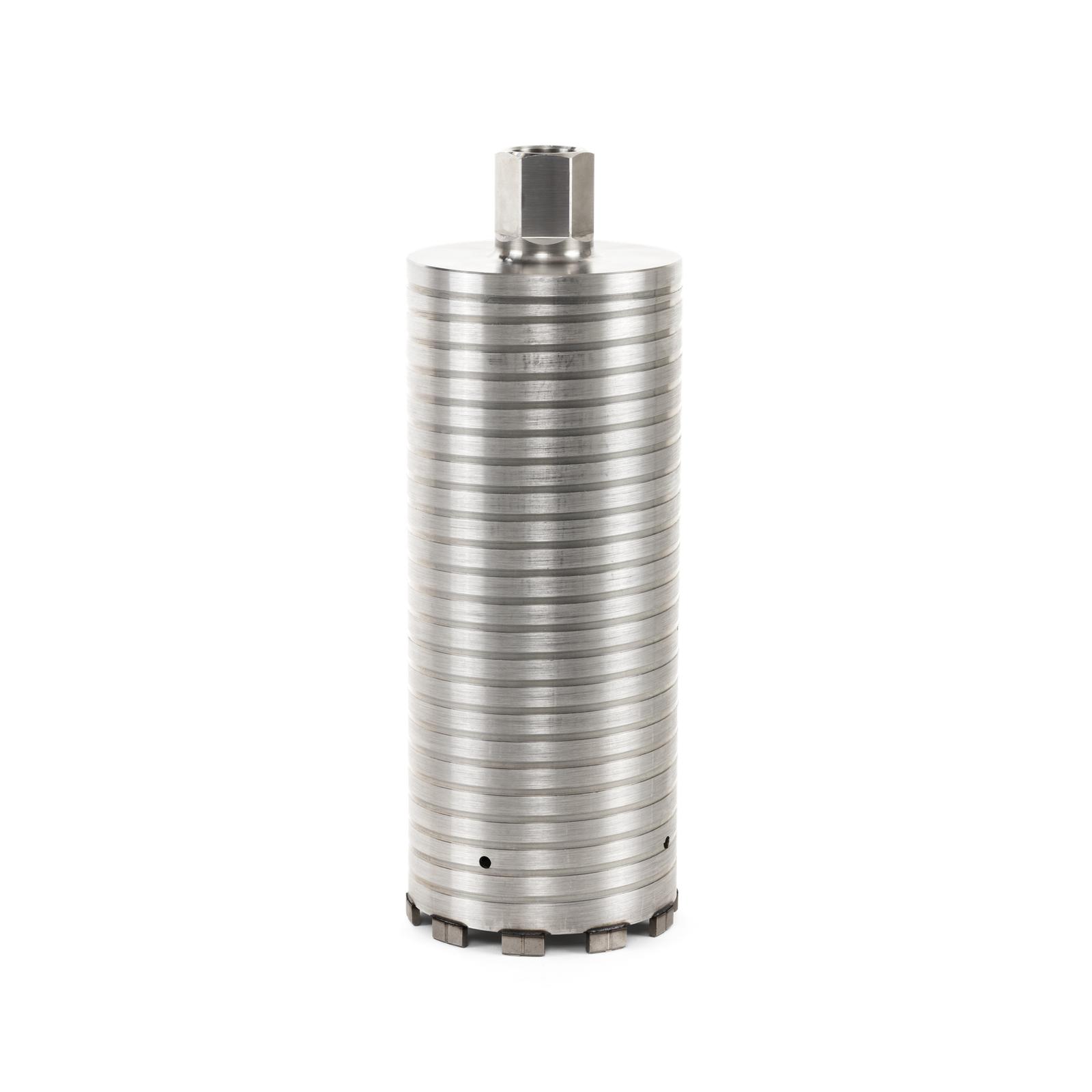

Husqvarna Elite-Drill D 20

• Premium diamond core bit for concrete and reinforced concrete
• Excellent cooling and debris removal design
• Long service life in professional applications

Husqvarna Vari-Drill

• Versatile diamond drill bit for masonry and stone
• Optimized for wet drilling with efficient water channels

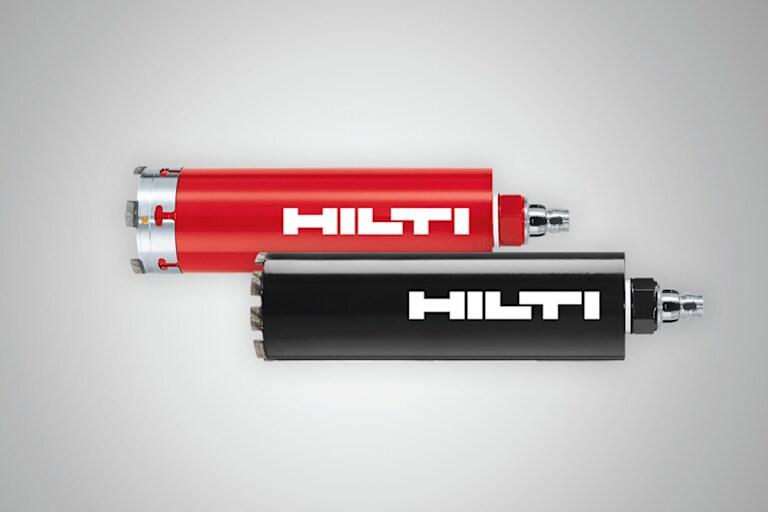

Hilti

4

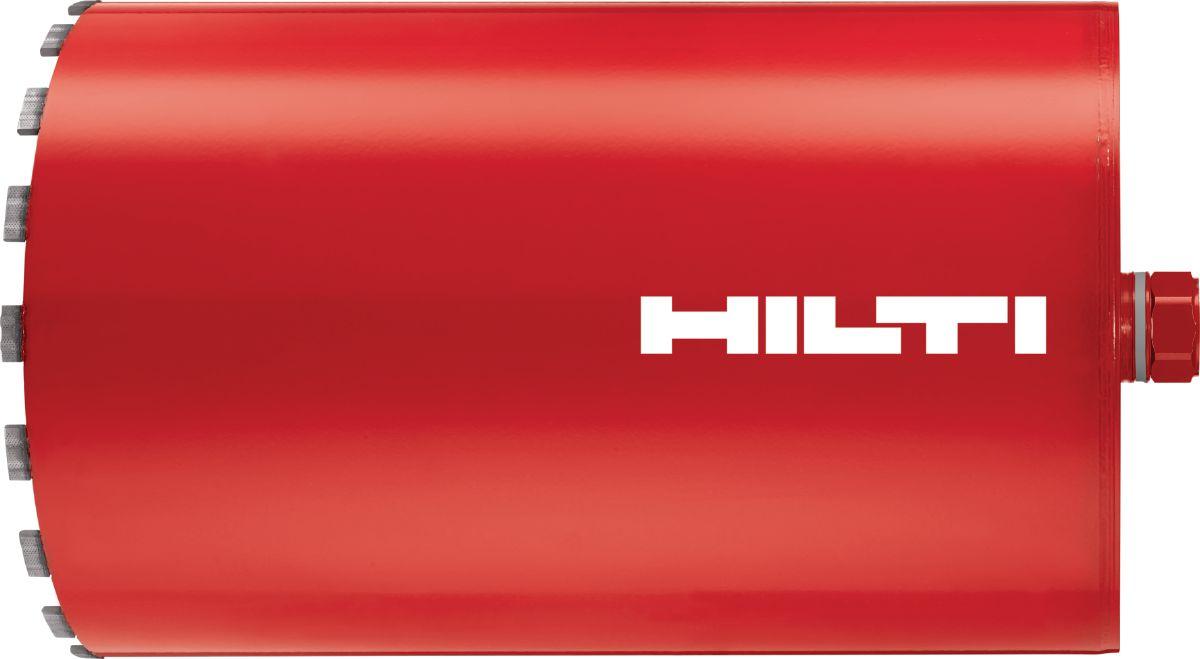

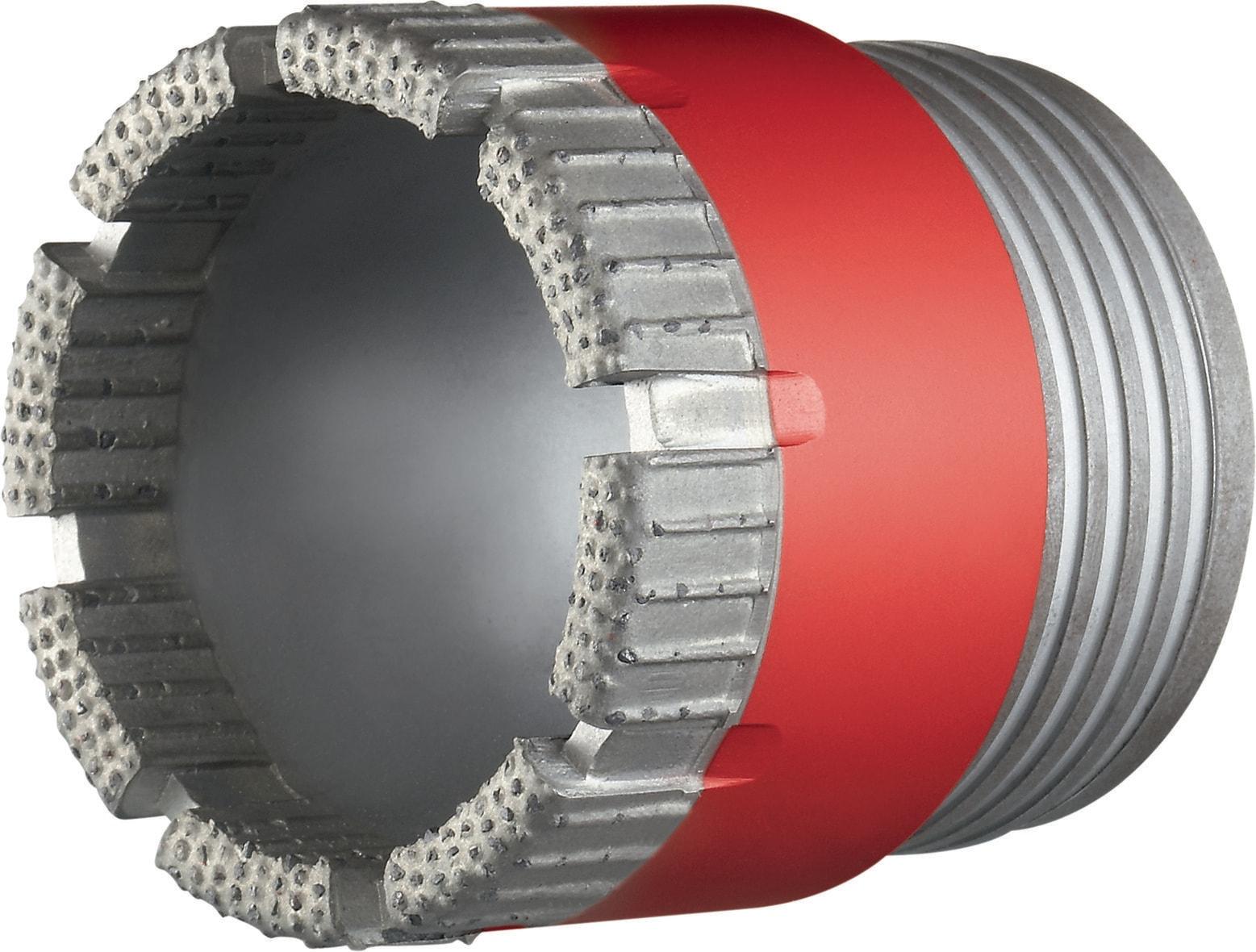

Hilti DD-C Premium

• High-performance diamond core bit for reinforced concrete
• Advanced segment technology for extended lifespan
• Suitable for heavy-duty construction work

Hilti DD-BI

• Premium wet drilling bit with fast cutting speed
• Designed for long-lasting performance in tough materials

Bosch

6

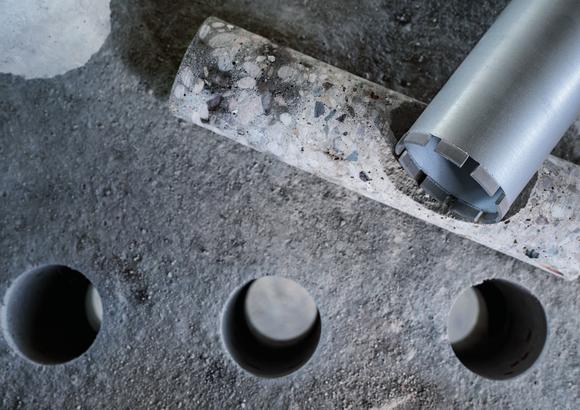

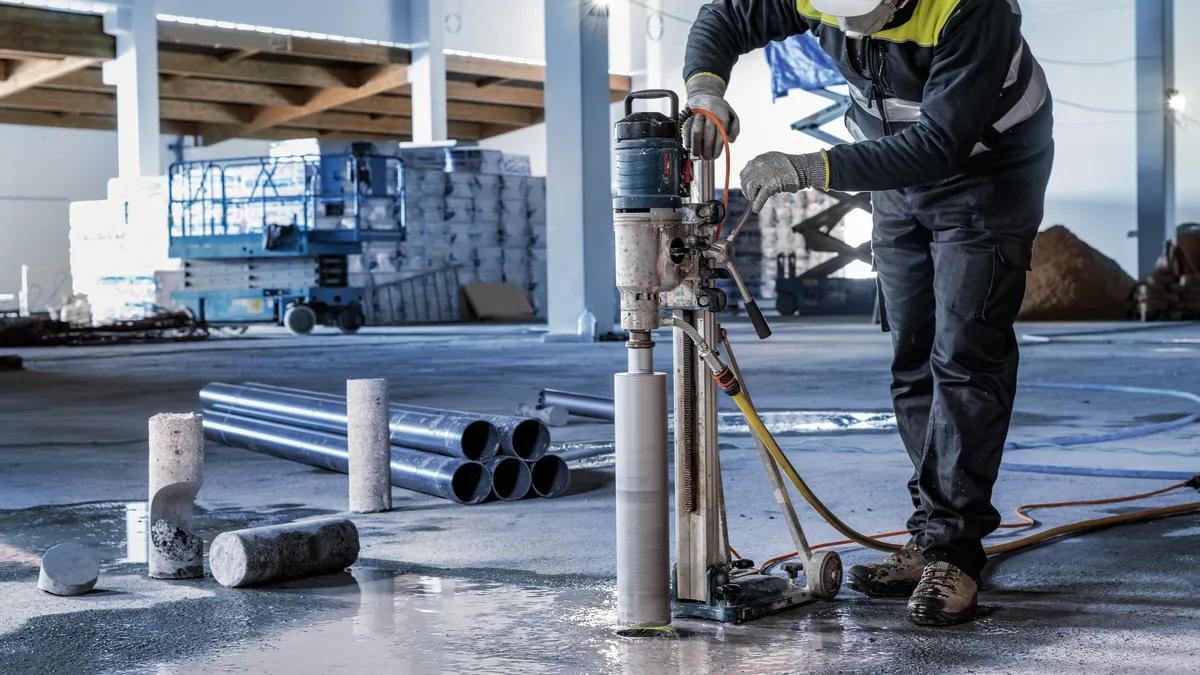

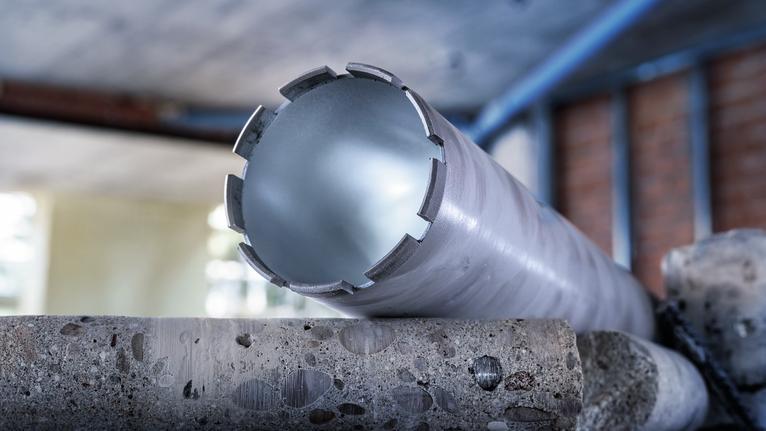

Bosch Diamond Wet Core Bit

• Reliable wet drilling bit for concrete and masonry
• Efficient water-assisted cooling system
• Durable diamond segments for extended use

Bosch Best for Concrete Diamond Core Bit

• Optimized for reinforced concrete drilling
• Long lifespan and consistent performance

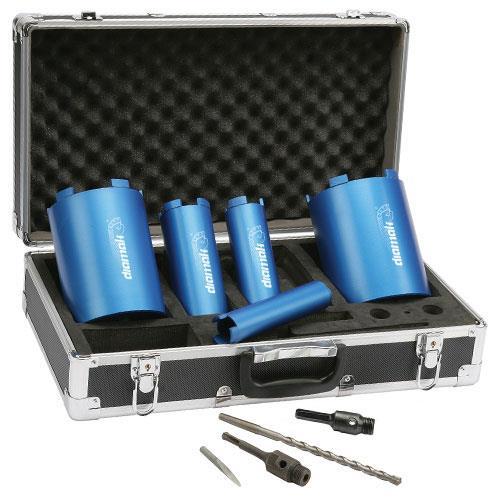

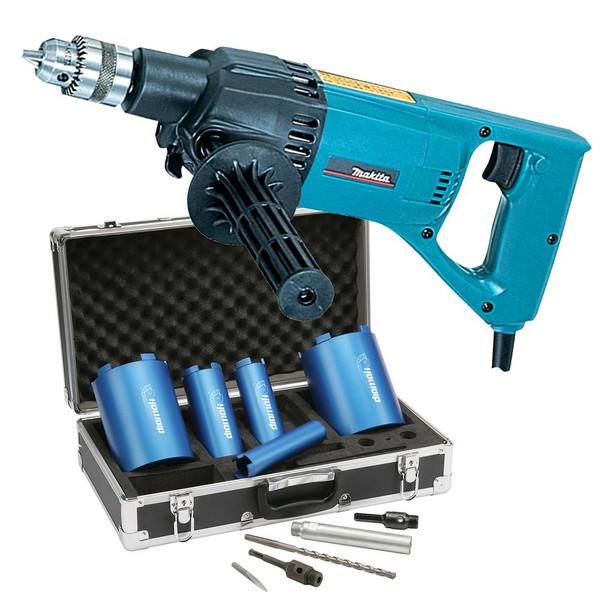

Makita

4

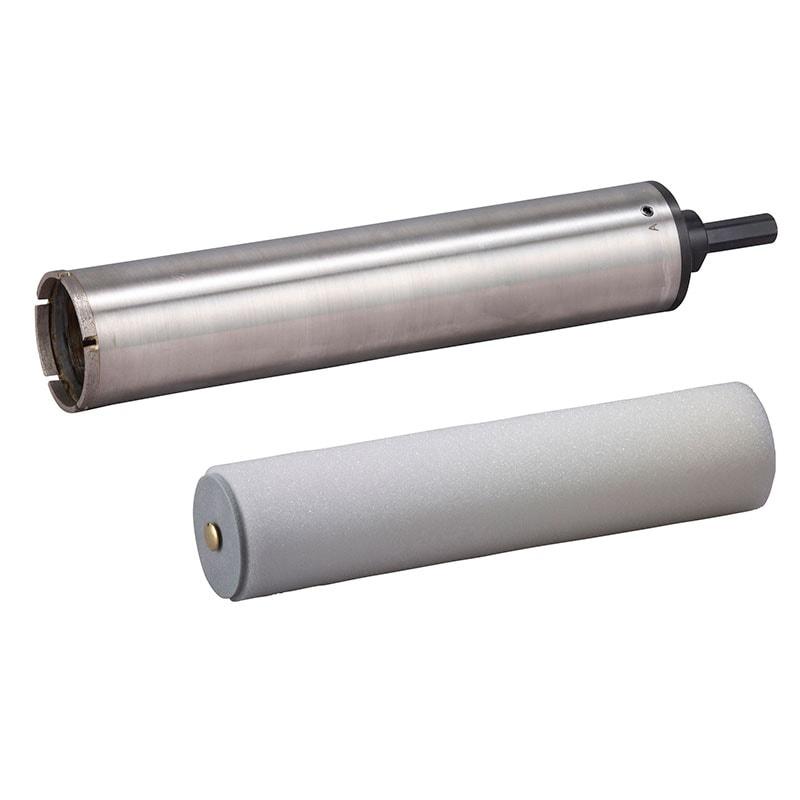

Makita Wet Diamond Core Bit

• Designed for wet drilling in concrete and stone
• High-quality diamond segments for durability
• Smooth drilling with reduced vibration

Makita Diamond Core Drill Bit Premium

• Professional-grade bit for demanding applications
• Excellent wear resistance and cutting efficiency

Xiangriyang

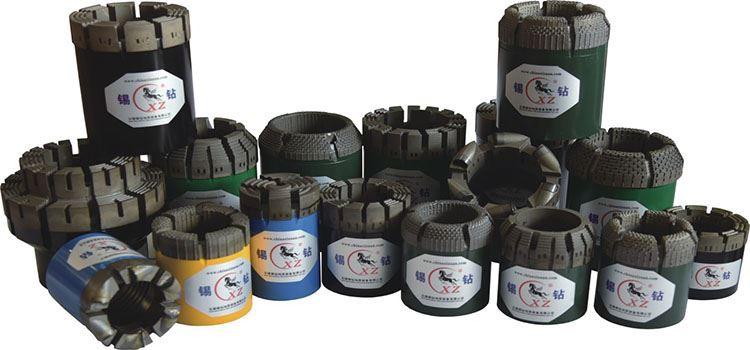

Xiangriyang Diamond Core Drill Bit

• Suitable for concrete, granite, and marble drilling
• Industrial-grade diamond segments for long service life
• Efficient water cooling design for stable performance

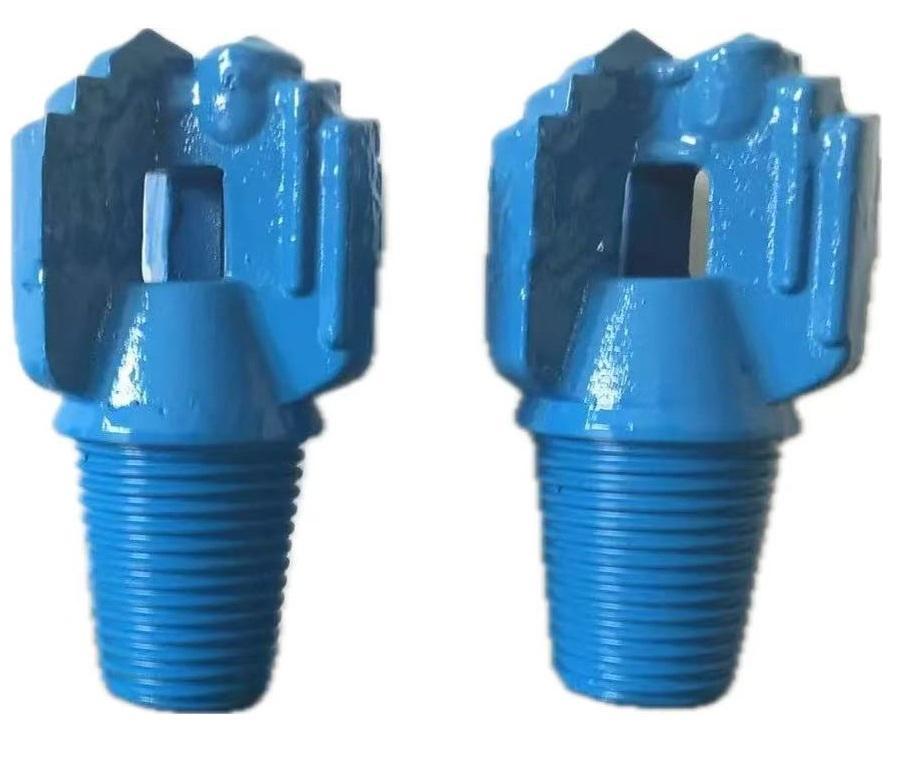

Xiangriyang Tungsten Carbide Water Drill Bit

• Heavy-duty carbide bit for masonry and rock drilling
• Strong wear resistance and reliable durability
• Designed for professional construction applications

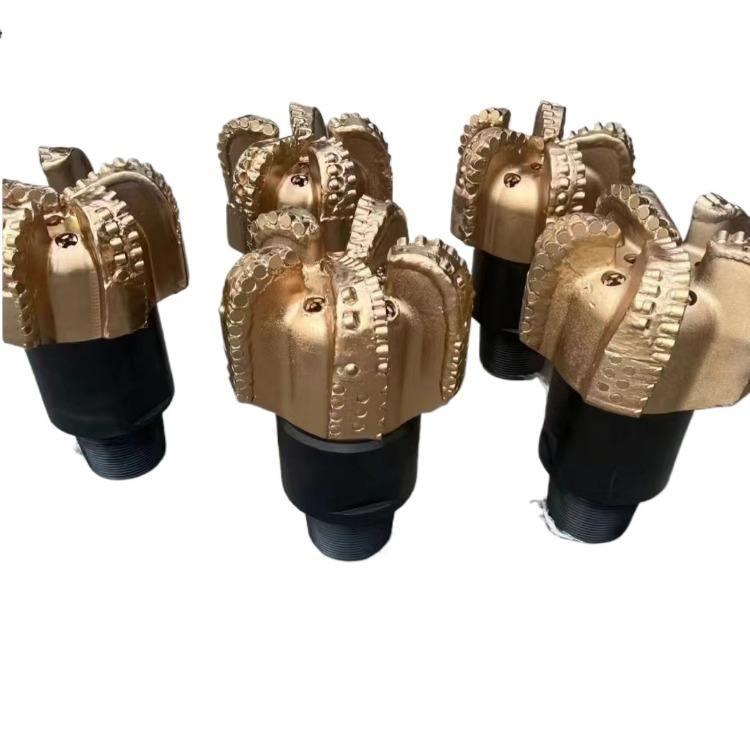

Xiangriyang PDC Water Drill Bit

• Advanced PDC cutter technology for geological and well drilling
• High drilling efficiency and extended lifespan
• Suitable for demanding rock formations

For professional-grade water drill bits and related drilling tools, visit www.xiangriyang.com.

Comparing Lifespan by Application

Cost vs. Lifespan: Is a Premium Bit Worth It?

High-quality water drill bits are more expensive upfront, but they often provide better value over time due to:

• Longer lifespan
• Faster drilling speed
• Reduced downtime
• Fewer replacements
• Better hole quality
• Improved safety and reliability

For example, a premium diamond core bit may cost twice as much as a budget bit, but if it lasts three times longer and drills faster, the overall cost per hole is significantly lower.

Real-World Examples

Example 1: Concrete Contractor

A contractor drilling anchor holes in reinforced concrete uses a high-quality 1-inch diamond core bit. With proper water cooling and correct operating parameters, the bit lasts for approximately 250 holes before replacement.

Example 2: Granite Fabrication Shop

A stone fabrication shop drills faucet holes in granite countertops. Using a premium wet diamond bit, they achieve 120–180 holes per bit, depending on the granite hardness.

Example 3: Water Well Drilling Company

A well drilling company uses a PDC bit in medium-hard rock formations. The bit operates continuously for about 180 drilling hours before performance declines.

When to Replace vs. Recondition a Drill Bit

Replace the Bit When:

• Diamond segments are worn down significantly
• Carbide teeth are chipped or broken
• The bit body is cracked or damaged
• Drilling performance drops sharply
• Excessive vibration occurs

Recondition the Bit When:

• Diamond bits become glazed
• Minor wear can be corrected by dressing
• Segments can be re-tipped or rebuilt by specialized services

Some professional diamond bits can be re-tipped, extending their total usable life significantly.

Environmental and Operational Considerations

Water Quality

Dirty or mineral-heavy water can clog channels and reduce cooling efficiency. Using clean water helps maintain optimal performance.

Temperature Conditions

Extreme temperatures can affect bit performance and wear rates. Proper cooling becomes even more important in hot environments.

Drill Machine Compatibility

Using a bit with the correct drill machine ensures proper alignment, speed control, and power delivery. Mismatched equipment can cause premature wear.

Future Trends in Water Drill Bit Technology

Modern water drill bits continue to evolve with innovations such as:

• Enhanced diamond bonding technology
• Advanced PDC cutter materials
• Improved water channel designs
• Laser-welded segments for greater durability
• Smart drilling systems with real-time monitoring
• Eco-friendly manufacturing processes

These advancements are helping extend bit lifespan, improve drilling efficiency, and reduce operational costs.

Conclusion

A high-quality water drill bit should last significantly longer than low-cost alternatives, but its exact lifespan depends on the application, material hardness, operating conditions, and maintenance practices. On average:

• Diamond core bits can last 100–500 holes or 20–100 hours
• PDC bits can last 50–300 hours
• Tungsten carbide bits can last 50–200 hours
• Roller cone bits can last 30–200 hours

By using the correct bit, maintaining proper water flow, following recommended operating parameters, and choosing reputable brands, users can maximize the lifespan and performance of their water drill bits.

Premium brands such as Husqvarna, Hilti, Bosch, Makita, and Xiangriyang offer durable and reliable options for professional drilling applications. For high-quality water drill bits and related tools, visit www.xiangriyang.com.
