Types of Shank for Impact Drill Bits: A Comprehensive Guide with Brand and Model Examples

Impact drill bits are engineered to handle high-torque applications, making them indispensable in construction, renovation, and industrial settings. The shank—the part of the drill bit that connects to the drill chuck—plays a critical role in ensuring stability, torque transmission, and compatibility with various power tools. Below is an in-depth exploration of the primary shank types for impact drill bits, along with notable brands and models that exemplify each category.

1. SDS (Slotted Drive System) Shank

The SDS shank is a cornerstone of modern masonry and concrete drilling, designed to withstand the intense hammering action of rotary hammers. Its unique slot-and-ball mechanism allows the bit to slide within the chuck, absorbing impacts while maintaining precise alignment. This design minimizes slippage and ensures optimal energy transfer, making SDS bits ideal for heavy-duty tasks.

Key Features:

• Secure Fit: The grooved shank locks into SDS chucks, preventing wobbling during operation.
• High Impact Resistance: Engineered to endure the forceful blows of hammer drills without deforming.
• Efficient Dust Removal: Fluted designs help clear debris, reducing heat buildup and extending bit life.

Brands and Models:

• Bosch SDS-Plus Drill Bits: The Bosch BlueGranite Turbo series features carbide-tipped bits with a 4-flute design for faster chip removal. Models like the BlueGranite Turbo 10mm x 210mm are optimized for drilling into reinforced concrete and masonry.
• Hilti TE-C SDS Bits: Hilti’s TE-C line, such as the TE-C 12mm x 260mm, combines a precision 2-cutter tip with a robust shank for clean holes in brick and hollow block. These bits are tool-free compatible with Hilti’s TE-C chucks.
• DeWalt SDS-Max Drill Bits: The DeWalt DW5808 18mm x 600mm SDS-Max bit is designed for deep drilling in foundations and demolition work. Its tungsten carbide tip and reinforced shank handle extreme torque and impact forces.

Applications:

• Drilling into concrete, brick, stone, and block.
• Foundation work, anchor installations, and structural renovations.
• Demolition and core sampling tasks.

2. Straight Shank

The straight shank is a universal design compatible with most standard drills and drill presses. It features a uniform cylindrical shape that fits into three-jaw chucks or collet systems, making it versatile for general-purpose drilling. While straight shanks may slip under high torque, they remain popular for light-duty tasks and applications where precision is less critical.

Key Features:

• Universal Compatibility: Works with a wide range of drills, including cordless models and drill presses.
• Cost-Effective: Straight shank bits are often more affordable than specialized alternatives.
• Easy Replacement: Widely available in standard sizes, making them convenient for DIY projects.

Brands and Models:

• Makita High-Speed Steel (HSS) Straight Shank Bits: The Makita B-49373 6.5mm x 100mm HSS bit is ideal for drilling into wood, plastic, and mild steel. Its straight shank ensures compatibility with most handheld drills.
• Irwin Industrial Tools Cobalt Straight Shank Bits: Irwin’s 3018002 8mm x 150mm cobalt bit offers superior heat resistance for drilling into hardened metals like stainless steel and cast iron.
• Milwaukee Electric Tool Auger Straight Shank Bits: The Milwaukee 48-20-7410 10mm x 200mm auger bit features a screw-like tip for deep hole drilling in thick timber, with wide flutes for efficient chip removal.

Applications:

• Woodworking, metal fabrication, and plastic drilling.
• General-purpose maintenance and repair tasks.
• Light-duty construction projects.

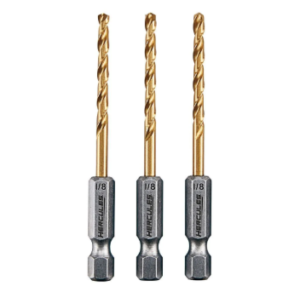

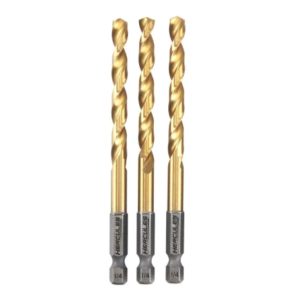

3. Hex Shank

The hex shank is characterized by its six-sided cross-section, which provides a secure grip in keyed or keyless chucks, particularly in cordless drills and impact drivers. This design prevents slippage during high-torque applications, making hex shank bits ideal for screwdriving, fastening, and confined-space drilling.

Key Features:

• Superior Grip: The hexagonal shape ensures the bit stays firmly seated in the chuck, reducing wear on both the bit and the tool.
• Quick Bit Changes: Many hex shank bits are compatible with magnetic bit holders or quick-change chucks for efficient tool swaps.
• Optimized for Impact Drivers: Designed to handle the high-torque, high-speed output of impact drivers without shearing.

Brands and Models:

• Bosch Daredevil Hex Shank Multipurpose Bits: The Bosch DA1010 10mm x 150mm Daredevil bit features a carbide tip for drilling into wood, metal, and masonry. Its hex shank ensures compatibility with impact drivers.
• DeWalt Impact Ready Hex Shank Bits: DeWalt’s DWARA100 8mm x 100mm Impact Ready bit is engineered for use with impact drivers, offering a 1/4-inch hex shank and a precision-ground tip for clean holes in various materials.
• Milwaukee Shockwave Hex Shank Impact Bits: The Milwaukee 48-32-4025 6mm x 50mm Shockwave bit is part of Milwaukee’s Shockwave line, designed to absorb the torque of impact drivers while maintaining bit integrity.

Applications:

• Screwdriving and fastening tasks.
• Drilling into wood, metal, and light masonry.
• Confined-space applications where a compact tool is required.

4. Tapered Shank

The tapered shank features a conical design that fits precisely into a matching tapered spindle, creating a self-holding connection without the need for a chuck. This design ensures excellent concentricity and alignment, making tapered shank bits ideal for high-precision tasks like deep-hole drilling and metalworking.

Key Features:

• High Torque Transmission: The tapered design allows for efficient power transfer from the drill to the bit, reducing slippage.
• Self-Holding Connection: Once seated in the spindle, the bit remains securely in place without additional clamping mechanisms.
• Precision Alignment: The conical shape ensures the bit is perfectly centered, minimizing runout and improving hole quality.

Brands and Models:

• Morse Taper Shank Drill Bits: Morse offers a range of tapered shank bits, such as the MT2 12mm x 200mm bit, designed for use with lathes and drill presses. These bits are ideal for high-precision metalworking applications.
• Jacobs Taper Shank Drill Bits: Jacobs’ JT6 10mm x 150mm tapered shank bit is compatible with industrial drill presses and CNC machines, offering superior stability for deep-hole drilling in metal.
• Cle-Line Taper Shank Drill Bits: Cle-Line’s T10 8mm x 125mm bit features a high-speed steel construction and a precision-ground taper for optimal performance in heavy-duty drilling tasks.

Applications:

• High-precision metalworking and machining.
• Deep-hole drilling in industrial settings.
• CNC machine operations and lathe work.

5. Coated Shank

Coated shank bits feature a protective layer applied to the shank surface to enhance wear resistance, reduce friction, and improve heat dissipation. Common coatings include titanium nitride (TiN), titanium carbon nitride (TiCN), and diamond-like carbon (DLC). These coatings extend the bit’s lifespan and maintain performance in abrasive or high-cycle environments.

Key Features:

• Increased Wear Resistance: The coating protects the shank from abrasion, reducing the need for frequent replacements.
• Reduced Friction: A smoother surface minimizes heat buildup during operation, improving bit efficiency.
• Corrosion Resistance: Coatings like TiN and TiCN prevent rust and corrosion, extending the bit’s usability in harsh conditions.

Brands and Models:

• Bosch BlueGranite Coated Shank Bits: The Bosch BlueGranite 12mm x 250mm bit features a TiN coating on both the tip and shank, enhancing durability and heat resistance for drilling into concrete and masonry.
• Irwin Industrial Tools Black Oxide Coated Shank Bits: Irwin’s 3018005 10mm x 150mm black oxide bit offers a corrosion-resistant coating for general-purpose drilling in wood, metal, and plastic.
• Milwaukee Thunderweb Coated Shank Bits: The Milwaukee 48-20-7450 14mm x 300mm Thunderweb bit features a DLC coating on the shank for reduced friction and improved performance in high-torque applications.

Applications:

• High-performance drilling in abrasive materials.
• Automated and OEM manufacturing lines.
• Repetitive industrial tasks where bit longevity is critical.

Conclusion

Selecting the right shank type for your impact drill bits is essential for achieving optimal performance, precision, and longevity. Whether you’re drilling into concrete with an SDS shank, tackling general-purpose tasks with a straight shank, or ensuring a secure grip with a hex shank, understanding the strengths and limitations of each design will help you make informed decisions. Brands like Bosch, Hilti, DeWalt, Makita, and Milwaukee offer a wide range of high-quality bits tailored to specific applications, ensuring you have the right tool for the job. For more information on drill bits and other power tool accessories, visit www.xiangriyang.com, your trusted source for industrial-grade tools and supplies.
