Fast and Durable Water Drill Bits: A Comprehensive Guide to Brands and Models

Water drilling operations demand tools that balance speed, durability, and precision to meet the challenges of diverse geological conditions. From soft sedimentary layers to hard rock formations, the choice of drill bit significantly impacts efficiency, cost, and operational success. This guide explores the most advanced and reliable water drill bits available globally, focusing on their technical specifications, material composition, performance benefits, and real-world applications. Brands such as Atlas Copco, Hughes Christensen, Smith Bits, Baker Hughes, and Hilti are highlighted for their innovative designs and proven track records in the field.

1. Diamond-Impregnated Drill Bits: The Pinnacle of Durability and Speed

Diamond-impregnated drill bits are engineered for high-performance drilling in hard and abrasive formations, including granite, basalt, and reef limestone. These bits utilize industrial-grade diamonds embedded in a matrix of tungsten carbide or other wear-resistant materials, enabling them to cut through rock with minimal wear and tear. Their design ensures consistent performance over extended periods, making them ideal for deep-well drilling projects where durability is paramount.

Key Brands and Models:

• Atlas Copco Secoroc QD Series
  The QD (Quick Drill) Series from Atlas Copco is renowned for its high penetration rates and long service life. These bits feature a premium diamond matrix that resists thermal degradation, ensuring optimal cutting efficiency even in extreme temperatures. The QD series is available in various configurations, including concave, convex, and flat-face designs, to suit different drilling conditions.
  • Technical Specifications:
    • Diamond concentration: 30–40%
    • Matrix hardness: HRC 45–50
    • Operating pressure: 10–30 MPa
    • Rotational speed: 50–200 RPM
  • Applications:
    • Deep water wells (300–1,000 meters)
    • Geothermal drilling
    • Mineral exploration
• Hughes Christensen Kinetic Series
  The Kinetic Series by Hughes Christensen combines advanced diamond technology with a proprietary matrix formulation to deliver unmatched durability and speed. These bits are designed to minimize vibration and maximize energy transfer, resulting in faster drilling rates and reduced downtime. The Kinetic series is widely used in oil and gas exploration but has also proven effective in water well drilling.
  • Technical Specifications:
    • Diamond size: 10–20 mesh
    • Matrix composition: Tungsten carbide + cobalt
    • Flow rate: 100–300 L/min
    • Torque: 5,000–10,000 Nm
  • Applications:
    • Hard rock formations (e.g., granite, basalt)
    • Deep boreholes (>500 meters)
    • High-pressure drilling environments
• Smith Bits Talon Series
  The Talon Series from Smith Bits is engineered for high-efficiency drilling in abrasive formations. These bits feature a unique “talon-shaped” cutting structure that enhances rock fragmentation and reduces drilling torque. The Talon series is available in both surface-set and impregnated designs, offering flexibility for various applications.
  • Technical Specifications:
    • Diamond grade: Synthetic industrial diamonds
    • Matrix hardness: HRC 40–45
    • Weight on bit: 5–15 kN
    • Drilling depth: Up to 800 meters
  • Applications:
    • Water well drilling in abrasive soils
    • Environmental sampling
    • Construction site investigations

2. Polycrystalline Diamond Compact (PDC) Bits: Speed and Efficiency in Soft to Medium Formations

PDC drill bits are a popular choice for water well drilling in soft to medium-hard formations, such as sandstone, shale, and limestone. These bits feature fixed polycrystalline diamond cutters that provide exceptional wear resistance and cutting efficiency. Unlike traditional roller cone bits, PDC bits operate with a continuous shearing action, reducing vibration and improving hole quality.

Key Brands and Models:

• Baker Hughes StingBlade Series
  The StingBlade Series from Baker Hughes is designed for high-speed drilling in soft and medium formations. These bits incorporate advanced cutter placement and hydraulic optimization to maximize ROP (rate of penetration) while minimizing wear. The StingBlade series is available in various sizes and configurations to suit different well profiles.
  • Technical Specifications:
    • Cutter size: 13–16 mm
    • Number of blades: 3–6
    • Flow rate: 50–200 L/min
    • Rotational speed: 100–300 RPM
  • Applications:
    • Shallow water wells (<300 meters)
    • Agricultural irrigation systems
    • Municipal water supply projects
• Hilti TE-YX Series
  The TE-YX Series from Hilti is a line of PDC bits specifically designed for rotary drilling rigs. These bits feature a robust steel body and premium PDC cutters that ensure long service life and consistent performance. The TE-YX series is optimized for use with Hilti’s TE 3000-AVR drilling rig, providing a seamless integration for high-efficiency operations.
  • Technical Specifications:
    • Cutter grade: Thermally stable PDC
    • Bit diameter: 100–300 mm
    • Operating pressure: 5–15 MPa
    • Drilling depth: Up to 200 meters
  • Applications:
    • Residential water wells
    • Geotechnical investigations
    • Soil sampling
• Varel International V-Series
  The V-Series from Varel International is a range of PDC bits engineered for versatility and durability. These bits feature a modular design that allows for easy customization based on specific drilling conditions. The V-Series is widely used in water well drilling, geothermal exploration, and environmental sampling.
  • Technical Specifications:
    • Cutter layout: Spiral or straight
    • Matrix material: Steel or tungsten carbide
    • Flow rate: 30–150 L/min
    • Torque: 1,000–5,000 Nm
  • Applications:
    • Mixed formations (sandstone, shale, limestone)
    • Horizontal drilling
    • Directional wellbores

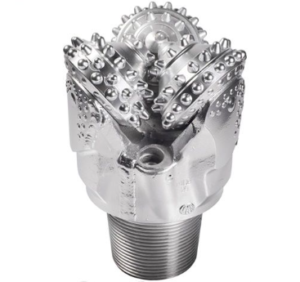

3. Tricone (Roller Cone) Bits: Versatility and Reliability in Diverse Formations

Tricone bits, also known as roller cone bits, are a classic choice for water well drilling due to their versatility and reliability. These bits feature three rotating cones with teeth or inserts that crush and grind the rock as the bit rotates. Tricone bits are available in various designs, including milled-tooth and tungsten carbide insert (TCI) bits, to suit different formations.

Key Brands and Models:

• ReedHycalog Strataclaw Series
  The Strataclaw Series from ReedHycalog is a line of TCI tricone bits designed for high-performance drilling in medium to hard formations. These bits feature advanced cone geometry and premium tungsten carbide inserts that provide exceptional durability and cutting efficiency. The Strataclaw series is widely used in water well drilling, oil and gas exploration, and mining operations.
  • Technical Specifications:
    • Insert material: Tungsten carbide
    • Cone angle: 35–45 degrees
    • Flow rate: 50–200 L/min
    • Rotational speed: 50–150 RPM
  • Applications:
    • Medium-hard formations (e.g., dolomite, sandstone)
    • Deep water wells (>300 meters)
    • High-pressure drilling environments
• Security DBS Series
  The DBS Series from Security is a range of milled-tooth tricone bits designed for soft to medium formations. These bits feature hardened steel teeth that provide excellent penetration rates and long service life. The DBS series is optimized for use with small to medium-sized drilling rigs, making it ideal for residential and agricultural water wells.
  • Technical Specifications:
    • Tooth material: Hardened steel
    • Cone count: 3
    • Flow rate: 30–100 L/min
    • Weight on bit: 2–8 kN
  • Applications:
    • Shallow water wells (<150 meters)
    • Soil and gravel formations
    • Environmental monitoring
• Kingdream K Series
  The K Series from Kingdream is a line of tricone bits engineered for versatility and cost-effectiveness. These bits are available in both milled-tooth and TCI designs, allowing users to select the most appropriate option based on formation hardness. The K series is widely used in water well drilling, geothermal exploration, and construction site investigations.
  • Technical Specifications:
    • Insert or tooth material: Tungsten carbide or hardened steel
    • Cone bearing type: Sealed or open
    • Flow rate: 20–150 L/min
    • Drilling depth: Up to 500 meters
  • Applications:
    • Mixed formations (soft to medium-hard)
    • Horizontal drilling
    • Directional wellbores

4. Auger Bits: Simplicity and Efficiency in Soft Soils

Auger bits are a specialized type of drill bit designed for shallow water well drilling in soft, unconsolidated soils such as sand, silt, and clay. These bits feature a helical screw blade that lifts soil to the surface as it advances, eliminating the need for complex drilling fluids or high-pressure systems. Auger bits are available in various configurations, including hand-operated, mechanical, and truck-mounted designs, to suit different project requirements.

Key Brands and Models:

• Little Beaver Unibit Series
  The Unibit Series from Little Beaver is a line of auger bits designed for high-efficiency drilling in soft soils. These bits feature a continuous flight design that ensures smooth soil removal and minimal downtime. The Unibit series is available in various diameters and lengths to suit different well sizes and depths.
  • Technical Specifications:
    • Flight diameter: 100–300 mm
    • Flight pitch: 100–150 mm
    • Material: High-strength steel
    • Drilling depth: Up to 30 meters
  • Applications:
    • Residential water wells
    • Agricultural irrigation systems
    • Environmental sampling
• Amsler Bucket Auger Series
  The Bucket Auger Series from Amsler is a range of auger bits designed for removing loose or granular material from boreholes. These bits consist of a cylindrical bucket with a cutting edge and a hinged or removable bottom, allowing for easy emptying of soil. The Bucket Auger series is ideal for small-scale drilling projects and soil sampling.
  • Technical Specifications:
    • Bucket diameter: 150–400 mm
    • Bucket height: 200–500 mm
    • Material: Stainless steel or aluminum
    • Drilling depth: Up to 15 meters
  • Applications:
    • Soil sampling
    • Cleaning existing boreholes
    • DIY water well projects
• Ditch Witch Continuous Flight Auger Series
  The Continuous Flight Auger Series from Ditch Witch is a line of auger bits designed for professional-grade drilling in cohesive soils such as clay and silty clay. These bits feature a continuous helical flight wrapped around a central core shaft, enabling continuous soil removal as the auger penetrates deeper. The Continuous Flight Auger series is widely used in municipal water supply projects and large-scale agricultural irrigation systems.
  • Technical Specifications:
    • Flight diameter: 200–600 mm
    • Flight pitch: 150–200 mm
    • Material: Tungsten carbide-tipped steel
    • Drilling depth: Up to 50 meters
  • Applications:
    • Professional water well drilling
    • Municipal water supply projects
    • Large-scale irrigation systems

Conclusion: Selecting the Right Drill Bit for Your Project

Choosing the right drill bit for water well drilling involves evaluating several factors, including formation hardness, well depth, project budget, and operational efficiency. Diamond-impregnated bits are ideal for hard and abrasive formations, offering unmatched durability and speed. PDC bits excel in soft to medium formations, providing high ROP and excellent hole quality. Tricone bits offer versatility and reliability in diverse conditions, while auger bits are perfect for shallow drilling in soft soils.

By selecting a drill bit from a reputable brand like Atlas Copco, Hughes Christensen, Smith Bits, Baker Hughes, or Hilti, you can ensure optimal performance, longevity, and cost-effectiveness for your water drilling project. Whether you’re drilling a shallow residential well or a deep geothermal borehole, the right drill bit will make all the difference in achieving your goals efficiently and reliably.
