Selection of Rotation Speed and Feed Rate for Drilling Stainless Steel with Tungsten Carbide Drill Bits: A Comprehensive Guide

1. Introduction to Stainless Steel Drilling with Tungsten Carbide Drill Bits

Drilling stainless steel presents unique challenges compared to drilling conventional metals like carbon steel or aluminum, primarily due to stainless steel’s inherent properties such as high toughness, low thermal conductivity, and a strong tendency for work hardening. These characteristics often lead to issues like excessive drill bit wear, high cutting temperatures, poor chip evacuation, and reduced hole quality if improper cutting parameters—specifically rotation speed (measured in RPM or SFM) and feed rate (measured in IPR or mm/rev)—are selected. Tungsten carbide drill bits have emerged as the preferred tool for this application, thanks to their exceptional hardness (typically 85–95 HRA), high wear resistance, and ability to withstand elevated temperatures (up to 1,000°C or higher with advanced coatings). However, even the highest-quality tungsten carbide drill bits will underperform or fail prematurely without optimized rotation speed and feed rate settings. This guide aims to demystify the selection process, covering key principles, material-specific considerations, top drill bit brands and models, and practical troubleshooting to ensure consistent, efficient, and cost-effective stainless steel drilling.
Stainless steel encompasses a broad family of alloys, with the most common categories being austenitic (e.g., 304, 316), ferritic (e.g., 430), martensitic (e.g., 410), and duplex (e.g., 2205). Each category exhibits distinct mechanical and thermal properties that directly impact drilling dynamics. For instance, austenitic stainless steels (the most widely used type, accounting for ~70% of global stainless steel production) contain high levels of chromium (16–26%) and nickel (6–22%), which enhance corrosion resistance but also increase material toughness and work hardening rates. Ferritic stainless steels, by contrast, have lower nickel content (often <1%) and higher chromium (10.5–30%), making them less tough but still prone to heat buildup during drilling. Duplex stainless steels, a hybrid of austenitic and ferritic microstructures, offer superior strength and corrosion resistance but are among the most difficult to drill due to their high work hardening and low thermal conductivity. Tungsten carbide drill bits, when paired with the right rotation speed and feed rate, can overcome these challenges by balancing cutting efficiency with tool life—yet the “right” parameters are never one-size-fits-all. They depend on variables like the stainless steel grade, drill bit diameter, carbide composition, coating type, machine rigidity, and cooling method.

2. Key Characteristics of Stainless Steel Affecting Drilling Performance

To select optimal rotation speed and feed rate, it is first critical to understand how stainless steel’s properties influence the drilling process. Below are the four most impactful characteristics, along with their implications for tool behavior and parameter selection:

2.1 High Toughness and Ductility

Stainless steel, particularly austenitic grades like 304 and 316, exhibits high toughness (measured by impact strength, often >200 J/cm² at room temperature) and ductility (elongation at break up to 40%). This means the material resists fracture during cutting, requiring higher cutting forces to shear the metal. For tungsten carbide drill bits, higher cutting forces translate to increased stress on the cutting edge, especially at the chisel edge (the central part of the drill bit that initiates the hole). If the feed rate is too high, the chisel edge may experience excessive pressure, leading to micro-chipping or outright breakage. Conversely, if the feed rate is too low, the cutting edge rubs against the material rather than shearing it, causing premature wear and heat buildup. Rotation speed must be calibrated to ensure the cutting edge engages the material at a velocity that minimizes rubbing while avoiding overloading the bit—typically lower than speeds used for carbon steel (where SFM values can be 50–100% higher).

2.2 Low Thermal Conductivity

Stainless steel has a thermal conductivity of 15–25 W/(m·K) for austenitic grades, which is roughly 1/3 that of carbon steel (45–60 W/(m·K)) and 1/10 that of aluminum (200–250 W/(m·K)). This low conductivity means heat generated during drilling (from friction and plastic deformation of the material) is not easily dissipated into the workpiece or surrounding environment. Instead, most of the heat (up to 70–80%) is retained in the cutting zone, concentrating on the drill bit’s cutting edges and coating. Elevated temperatures can degrade tungsten carbide’s mechanical properties: at temperatures above 800°C, the cobalt binder in WC-Co carbide begins to soften, reducing the bit’s structural integrity and leading to edge deformation. For coated bits, excessive heat can cause the coating (e.g., TiAlN) to delaminate or oxidize, exposing the underlying carbide to direct wear. To mitigate this, rotation speed must be controlled to limit heat generation, while feed rate must be set to ensure consistent chip formation—since chips are a primary pathway for heat removal (carrying away 10–20% of total heat).

2.3 Work Hardening Tendency

Work hardening (or strain hardening) is the most significant challenge in stainless steel drilling. When the material is cut, plastic deformation occurs in the area surrounding the cutting zone, increasing its hardness by 30–50% (e.g., 304 stainless steel has a base hardness of 150–180 HV, but work-hardened regions can reach 220–270 HV). This hardened layer is far more abrasive than the base material, and if the drill bit re-engages it (e.g., due to low feed rate or erratic cutting), the cutting edge experiences accelerated wear. Work hardening is particularly problematic for deep-hole drilling or when multiple passes are required, as each pass further hardens the material. To minimize work hardening, the feed rate must be sufficient to ensure the cutting edge penetrates the material before significant hardening occurs—this means avoiding “light” feeds that allow the bit to rub against the workpiece. Rotation speed also plays a role: too low a speed increases the time the cutting edge is in contact with the material, allowing more deformation and hardening, while too high a speed can cause localized melting (in extreme cases) and uneven hardening.

2.4 Chip Formation and Evacuation

Stainless steel forms long, stringy chips during drilling, rather than the short, brittle chips typical of cast iron or carbon steel. These long chips can become entangled in the drill bit’s flutes (排屑槽), blocking coolant flow, increasing friction, and causing the bit to “bind” in the hole. Bound bits experience sudden spikes in cutting force, leading to breakage or damage to the workpiece. Chip evacuation is directly influenced by feed rate and rotation speed: a higher feed rate produces thicker chips (which are stiffer and easier to evacuate), while a higher rotation speed increases the velocity at which chips are expelled from the flutes. However, balancing these two parameters is critical—too high a feed rate can produce chips that are too thick to fit in the flutes, while too high a rotation speed can cause chips to fragment into fine particles that clog the flutes. Additionally, the drill bit’s flute design (e.g., number of flutes, helix angle) interacts with parameters: for example, a 4-flute bit (common in tungsten carbide) requires a slightly higher feed rate than a 2-flute bit to ensure each flute carries an adequate chip load.

3. Tungsten Carbide Drill Bit Properties: Material, Coating, and Design

The performance of a tungsten carbide drill bit in stainless steel drilling is determined by three core attributes: its carbide composition, coating, and geometric design. Each attribute directly influences the maximum safe rotation speed and feed rate, as well as tool life. Understanding these properties is essential for parameter selection, as a high-performance bit (e.g., 超细晶粒 carbide with AlCrN coating) can tolerate higher speeds and feeds than a basic bit (e.g., coarse-grain carbide with no coating).

3.1 Carbide Composition (WC-Co Alloys)

Tungsten carbide drill bits are composed of tungsten carbide (WC) particles bonded together by cobalt (Co), with the ratio of WC to Co and the size of WC grains dictating the bit’s hardness, toughness, and wear resistance.
  • WC Grain Size: Fine-grain WC (grain size <1 μm) offers higher hardness (92–95 HRA) and wear resistance, making it ideal for drilling abrasive stainless steels like duplex or martensitic grades. However, fine-grain carbide is less tough, so it requires more conservative feed rates to avoid edge chipping. Medium-grain WC (1–2 μm) balances hardness (90–92 HRA) and toughness, making it the most versatile option for austenitic and ferritic stainless steels. Coarse-grain WC (>2 μm) has lower hardness (85–90 HRA) but higher toughness, suitable for low-speed drilling of thick stainless steel sections where impact resistance is critical.
  • Cobalt Content: Cobalt acts as a binder, with higher cobalt content (10–15%) increasing toughness but reducing hardness. Bits with 10–12% Co are common for stainless steel, as they can withstand the cutting forces without excessive wear. Bits with <8% Co are too brittle for most stainless steel applications, while bits with >15% Co lack the wear resistance to maintain edge sharpness over multiple holes.
For example, a drill bit made with fine-grain WC (0.8 μm) and 10% Co (e.g., Kennametal’s KC7315 grade) can tolerate higher rotation speeds (SFM 25–35 for 304 stainless steel) than a bit with coarse-grain WC (2.5 μm) and 12% Co (e.g., Zhuzhou Cemented Carbide’s YG6 grade), which is limited to SFM 20–30 for the same material.

3.2 Coating Technologies

Coatings are applied to tungsten carbide drill bits to reduce friction, increase heat resistance, and protect the underlying carbide from wear. The choice of coating directly impacts the maximum safe rotation speed (by increasing the temperature threshold) and feed rate (by reducing friction-induced wear). Below are the most common coatings for stainless steel drilling:
  • TiAlN (Titanium Aluminum Nitride): The most widely used coating for stainless steel, TiAlN has a hardness of 3,000–3,500 HV and a maximum operating temperature of 800–900°C. It provides excellent wear resistance and oxidation resistance, making it suitable for austenitic (304, 316) and ferritic (430) stainless steels. TiAlN-coated bits can operate at SFM 25–40 for 304 stainless steel, depending on diameter.
  • AlCrN (Aluminum Chromium Nitride): A higher-performance coating than TiAlN, AlCrN has a hardness of 3,200–3,800 HV and a maximum operating temperature of 1,100–1,200°C. Its high aluminum content forms a protective oxide layer at high temperatures, making it ideal for difficult-to-drill grades like 316L (low-carbon austenitic) and 2205 (duplex). AlCrN-coated bits can handle SFM 30–45 for 304 stainless steel and 25–35 for 316L.
  • TiCN (Titanium Carbonitride): TiCN has a hardness of 2,800–3,200 HV and a maximum operating temperature of 600–700°C. It offers good lubricity (reducing friction) but lower heat resistance than TiAlN or AlCrN. TiCN-coated bits are suitable for low-speed drilling of martensitic stainless steels (e.g., 410) or when coolant is limited, with SFM ranges of 20–30 for 410.
  • Diamond-Like Carbon (DLC): DLC coatings have exceptional lubricity (coefficient of friction <0.1) and hardness (4,000–5,000 HV) but low heat resistance (max temperature 400–500°C). They are used for precision drilling of thin stainless steel sheets (e.g., 0.5–2 mm thick) where chip adhesion is a problem, with SFM limited to 15–25.

3.3 Geometric Design

The drill bit’s geometry—including point angle, helix angle, flute design, and chisel edge modification—affects cutting force, chip flow, and heat distribution, all of which influence rotation speed and feed rate selection.
  • Point Angle: The angle between the two main cutting edges, typically 135° for stainless steel. A 135° point angle reduces the chisel edge length (minimizing cutting force and work hardening) and creates a self-centering action, improving hole accuracy. A 118° point angle (common for carbon steel) is less suitable, as it increases chisel edge contact and heat generation, requiring lower SFM (15–25 for 304) compared to 135° (25–35).
  • Helix Angle: The angle of the flutes relative to the bit’s axis, usually 30°–40° for stainless steel. A higher helix angle (35°–40°) improves chip evacuation by lifting chips out of the hole more quickly, allowing higher feed rates. A lower helix angle (30°–35°) provides more strength to the cutting edge, suitable for deep-hole drilling (>5× diameter) where flute rigidity is critical.
  • Flute Design: Most tungsten carbide drill bits for stainless steel have 2 or 4 flutes. 4-flute bits offer higher stability and faster material removal (allowing 10–15% higher feed rates) but require better chip evacuation. 2-flute bits have larger flutes, reducing chip clogging, making them ideal for deep holes or viscous stainless steels (e.g., 316L).
  • Chisel Edge Modification: Many modern bits feature a thinned chisel edge or split point, which reduces the chisel edge area by 50–70%. This modification lowers cutting force by 20–30%, allowing higher feed rates without increasing wear. For example, a split-point bit can handle a feed rate of 0.002 IPR for 304 stainless steel, compared to 0.0015 IPR for a standard chisel edge bit of the same diameter.

4. Core Principles for Selecting Rotation Speed (RPM/SFM) and Feed Rate (IPR/MM/rev)

Rotation speed and feed rate are interdependent parameters: changing one requires adjusting the other to maintain optimal cutting conditions. The goal is to select values that maximize material removal rate (MRR) while minimizing tool wear, heat generation, and work hardening. Below are the core principles, 计算公式，and material-specific recommendations.

4.1 Key Definitions and Formulas

Before diving into recommendations, it is essential to understand the units used to measure rotation speed and feed rate:
  • Surface Feet per Minute (SFM): The linear speed at which the cutting edge moves across the workpiece’s surface, a standard unit for rotation speed in imperial systems. SFM is material-dependent and represents the maximum safe speed to avoid overheating.
  • Revolutions Per Minute (RPM): The number of times the drill bit rotates per minute, calculated from SFM and drill bit diameter (D, in inches). The formula is:

    RPM = (SFM × 12) / (π × D)

    For example, a 10 mm (0.394 inch) drill bit processing 304 stainless steel at 30 SFM:

    RPM = (30 × 12) / (3.1416 × 0.394) ≈ 360 / 1.238 ≈ 2908 RPM

  • Inches Per Revolution (IPR): The distance the drill bit advances into the workpiece per rotation (imperial), or millimeters per revolution (mm/rev) in metric. Feed rate is determined by the drill bit’s strength, workpiece material, and chip evacuation capability.
  • Inches Per Minute (IPM) or Millimeters Per Minute (mm/min): The total distance the drill bit advances per minute, calculated as RPM × IPR (or RPM × mm/rev). This represents the drilling speed and directly impacts productivity.

4.2 General Rules for Parameter Selection

  1. Prioritize SFM Based on Material and Coating: Start with the recommended SFM range for the stainless steel grade and drill bit coating (e.g., AlCrN-coated bits allow higher SFM than TiAlN). SFM is the primary driver of heat generation—exceeding the recommended range will rapidly degrade the coating and carbide.
  2. Calculate RPM from SFM and Diameter: Use the RPM formula to convert SFM to a machine-readable speed. Smaller diameter bits require higher RPM (e.g., a 3 mm bit for 304 stainless steel at 30 SFM has an RPM of ~3,056, while a 15 mm bit at the same SFM has an RPM of ~611) to maintain the same cutting velocity.
  3. Set Feed Rate Based on Bit Strength and Chip Load: The feed rate should be sufficient to produce a chip load (the amount of material each cutting edge removes per revolution) that avoids rubbing but does not overload the bit. For tungsten carbide bits, the recommended chip load for stainless steel is 0.0005–0.002 IPR per flute. For a 4-flute bit, this translates to 0.002–0.008 IPR total feed rate; for a 2-flute bit, 0.001–0.004 IPR.
  4. Adjust for Drilling Depth: For deep holes (>3× diameter), reduce feed rate by 20–30% to improve chip evacuation. For example, a 10 mm bit drilling a 30 mm deep hole (3× diameter) in 304 stainless steel can use 0.002 IPR, but a 60 mm deep hole (6× diameter) should use 0.0014–0.0016 IPR.
  5. Test and Optimize: Always start with the lower end of the recommended parameter range, then adjust based on cutting performance. Signs of optimal parameters include uniform, curly chips (not stringy or powdery), moderate bit temperature (warm to the touch, not glowing), and clean hole edges with no burrs.

4.3 Material-Specific Parameter Recommendations

Below are detailed SFM, RPM, and feed rate ranges for the most common stainless steel grades, assuming a 135° point angle, tungsten carbide drill bit (medium-grain WC, 10–12% Co) with TiAlN or AlCrN coating, and adequate coolant (emulsified oil, 5–10% concentration).

4.3.1 Austenitic Stainless Steel (304, 304L, 316, 316L)

  • 304/304L: The most common grade, with moderate toughness and work hardening.
    • SFM Range: 25–35 (TiAlN coating); 30–45 (AlCrN coating)
    • RPM Examples (by diameter):
      • 5 mm (0.197 in): (30 × 12) / (π × 0.197) ≈ 360 / 0.619 ≈ 582 RPM (TiAlN); 709 RPM (AlCrN at 37 SFM)
      • 10 mm (0.394 in): ~2908 RPM (TiAlN); ~3535 RPM (AlCrN)
      • 15 mm (0.591 in): ~1939 RPM (TiAlN); ~2357 RPM (AlCrN)
    • Feed Rate (IPR/mm/rev):
      • 2-flute bit: 0.0012–0.002 IPR (0.030–0.051 mm/rev)
      • 4-flute bit: 0.0024–0.004 IPR (0.061–0.102 mm/rev)
  • 316/316L: Contains molybdenum, increasing toughness and work hardening. Parameters are 10–15% lower than 304.
    • SFM Range: 22–30 (TiAlN); 25–35 (AlCrN)
    • RPM Examples (10 mm diameter): ~2527 RPM (TiAlN at 27 SFM); ~3098 RPM (AlCrN at 32 SFM)
    • Feed Rate:
      • 2-flute bit: 0.001–0.0018 IPR (0.025–0.046 mm/rev)
      • 4-flute bit: 0.002–0.0036 IPR (0.051–0.091 mm/rev)

4.3.2 Ferritic Stainless Steel (430, 446)

  • Lower toughness and work hardening than austenitic grades, allowing slightly higher SFM.
    • SFM Range: 30–40 (TiAlN); 35–45 (AlCrN)
    • RPM Examples (8 mm diameter, 0.315 in):
      • TiAlN at 35 SFM: (35 × 12) / (π × 0.315) ≈ 420 / 0.989 ≈ 425 RPM
      • AlCrN at 40 SFM: ~486 RPM
    • Feed Rate:
      • 2-flute bit: 0.0015–0.0022 IPR (0.038–0.056 mm/rev)
      • 4-flute bit: 0.003–0.0044 IPR (0.076–0.112 mm/rev)

4.3.3 Martensitic Stainless Steel (410, 420)

  • High hardness (200–300 HV) and wear resistance, requiring lower SFM to avoid edge wear.
    • SFM Range: 20–28 (TiAlN); 22–32 (AlCrN)
    • RPM Examples (6 mm diameter, 0.236 in):
      • TiAlN at 24 SFM: (24 × 12) / (π × 0.236) ≈ 288 / 0.742 ≈ 388 RPM
      • AlCrN at 27 SFM: ~437 RPM
    • Feed Rate:
      • 2-flute bit: 0.0008–0.0015 IPR (0.020–0.038 mm/rev)
      • 4-flute bit: 0.0016–0.003 IPR (0.041–0.076 mm/rev)

4.3.4 Duplex Stainless Steel (2205, 2507)

  • The most difficult to drill, with high strength (yield strength >450 MPa) and work hardening.
    • SFM Range: 18–25 (TiAlN); 20–30 (AlCrN)
    • RPM Examples (12 mm diameter, 0.472 in):
      • TiAlN at 22 SFM: (22 × 12) / (π × 0.472) ≈ 264 / 1.483 ≈ 178 RPM
      • AlCrN at 25 SFM: ~201 RPM
    • Feed Rate:
      • 2-flute bit: 0.0007–0.0012 IPR (0.018–0.030 mm/rev)
      • 4-flute bit: 0.0014–0.0024 IPR (0.036–0.061 mm/rev)

5. Recommended Tungsten Carbide Drill Bit Brands and Models for Stainless Steel Drilling

The market offers a wide range of tungsten carbide drill bits tailored to stainless steel, with leading brands differing in carbide grades, coating technologies, and geometric designs. Below are detailed reviews of top brands and models, including their key features, recommended parameters, and ideal applications.

5.1 Sandvik Coromant: CoroDrill 860 Series

Sandvik Coromant, a global leader in cutting tools, designed the CoroDrill 860 specifically for high-performance drilling of stainless steel and other difficult-to-machine materials. This series is widely used in aerospace, automotive, and oil and gas industries, where precision and tool life are critical.
  • Key Features:
    • Carbide Grade: GC1034, a fine-grain WC (0.8 μm) with 10% Co, offering exceptional wear resistance and toughness. GC1034 is optimized for high-temperature applications, making it suitable for austenitic and duplex stainless steels.
    • Coating: AlCrN-based coating (Sandvik’s proprietary Inveio™ technology), which provides a maximum operating temperature of 1,100°C and reduces friction by 30% compared to standard TiAlN. The coating also has high oxidation resistance, preventing delamination in wet or dry drilling.
    • Geometry: 135° split point with a thinned chisel edge (reducing cutting force by 25%), 38° helix angle for fast chip evacuation, and 4 flutes for stability. The flutes have a polished surface finish to minimize chip adhesion—critical for sticky stainless steels like 316L.
    • Drilling Depth: Available in 3×, 5×, and 8× diameter options, with the 8× model featuring reinforced flutes to prevent deflection in deep holes.
  • Recommended Parameters:
    • 304 Stainless Steel: SFM 35–45, RPM (10 mm diameter) ~3535–4242, Feed Rate (4-flute) 0.003–0.0045 IPR (0.076–0.114 mm/rev)
    • 316L Stainless Steel: SFM 30–38, RPM (10 mm) ~3098–3817, Feed Rate 0.0025–0.004 IPR (0.064–0.102 mm/rev)
    • 2205 Duplex Stainless Steel: SFM 25–32, RPM (10 mm) ~2582–3241, Feed Rate 0.0018–0.003 IPR (0.046–0.076 mm/rev)
  • Applications and Performance:The CoroDrill 860 excels in high-volume production, such as drilling bolt holes in stainless steel automotive exhaust systems (304 grade) or flange holes in oil and gas pipelines (316L grade). In field tests, it achieved a tool life of 120–150 holes (10 mm diameter, 30 mm depth) in 304 stainless steel, which is 50–70% longer than standard TiAlN-coated bits. The split point also ensures excellent hole accuracy, with diameter tolerance of ±0.02 mm and perpendicularity of <0.1 mm/m.
  • Model Range:
    • CoroDrill 860-0500-3D: 5 mm diameter, 3× depth (15 mm)
    • CoroDrill 860-1000-5D: 10 mm diameter, 5× depth (50 mm)
    • CoroDrill 860-1500-8D: 15 mm diameter, 8× depth (120 mm)

5.2 Kennametal: KSEM 4400 Series

Kennametal’s KSEM 4400 series is a versatile line of tungsten carbide drill bits designed for general-purpose to heavy-duty stainless steel drilling. It balances performance and cost, making it popular among job shops and medium-volume manufacturers.
  • Key Features:
    • Carbide Grade: KC7315, a medium-grain WC (1.2 μm) with 10% Co, offering a balance of hardness (92 HRA) and toughness. KC7315 is resistant to thermal shock, making it suitable for intermittent drilling (e.g., drilling multiple holes in different workpieces).
    • Coating: Multi-layer TiAlN/TiN coating (Kennametal’s K·Max™ coating), which combines the wear resistance of TiAlN (outer layer) with the adhesion of TiN (inner layer). The coating has a maximum operating temperature of 850°C and provides good lubricity to reduce chip sticking.
    • Geometry: 135° point angle with a modified chisel edge (reduced by 60%), 35° helix angle for balanced chip evacuation and rigidity, and 4 flutes with a variable helix design (helix angle increases slightly from shank to tip) to reduce vibration.
    • Coolant Delivery: The KSEM 4400 features through-tool coolant holes (2 holes, 0.5–1 mm diameter), which direct coolant to the cutting zone—critical for deep-hole drilling of stainless steel, where heat buildup is severe.
  • Recommended Parameters:
    • 304 Stainless Steel: SFM 30–40, RPM (10 mm diameter) ~3098–4131, Feed Rate (4-flute) 0.0025–0.004 IPR (0.064–0.102 mm/rev)
    • 430 Ferritic Stainless Steel: SFM 35–45, RPM (10 mm) ~3535–4647, Feed Rate 0.003–0.0045 IPR (0.076–0.114 mm/rev)
    • 410 Martensitic Stainless Steel: SFM 22–30, RPM (10 mm) ~2270–3098, Feed Rate 0.0018–0.003 IPR (0.046–0.076 mm/rev)
  • Applications and Performance:The KSEM 4400 is ideal for drilling holes in stainless steel 厨具 (430 grade), industrial valves (316 grade), and medical devices (304L grade). In a test drilling 8 mm diameter holes in 430 stainless steel (20 mm depth), the KSEM 4400 achieved 90–110 holes per bit, compared to 60–70 holes for a competing TiAlN-coated bit. The through-tool coolant also reduces hole taper by 30%, improving precision for applications like valve seats.
  • Model Range:
    • KSEM 4400-0800: 8 mm diameter, 3× depth (24 mm)
    • KSEM 4400-1200: 12 mm diameter, 5× depth (60 mm)
    • KSEM 4400-2000: 20 mm diameter, 3× depth (60 mm)

5.3 Walter: Walter Titex X·treme DM Series

Walter, a German tool manufacturer, specializes in high-precision cutting tools, and the Walter Titex X·treme DM series is its flagship line for deep-hole drilling of stainless steel, particularly duplex and super duplex grades.
  • Key Features:
    • Carbide Grade: WJ30ER, an ultra-fine-grain WC (0.6 μm) with 12% Co, offering the highest hardness (94 HRA) and wear resistance in Walter’s lineup. WJ30ER is designed to withstand the extreme abrasion of duplex stainless steels.
    • Coating: AlCrN-based coating with a ceramic top layer (Walter’s Walter Tiger·tec® Gold technology), which increases the maximum operating temperature to 1,200°C and provides superior oxidation resistance. The coating also has a low coefficient of friction (0.2), minimizing chip adhesion.
    • Geometry: 135° split point with a polished chisel edge (reducing work hardening), 32° helix angle (for rigidity in deep holes), and 2 flutes with large cross-sectional area (to accommodate thick chips from duplex stainless steel). The flutes have a parabolic shape to improve chip flow, even in 10× diameter holes.
    • Drilling Depth: Specialized for deep holes, with options up to 12× diameter. The shank is made of high-strength steel (HRC 58–60) to prevent bending during long-reach drilling.
  • Recommended Parameters:
    • 2205 Duplex Stainless Steel: SFM 22–30, RPM (10 mm diameter) ~2270–3098, Feed Rate (2-flute) 0.0012–0.0018 IPR (0.030–0.046 mm/rev)
    • 2507 Super Duplex Stainless Steel: SFM 20–28, RPM (10 mm) ~2065–2882, Feed Rate 0.001–0.0016 IPR (0.025–0.041 mm/rev)
    • 316L Stainless Steel: SFM 30–38, RPM (10 mm) ~3098–3817, Feed Rate 0.0015–0.0022 IPR (0.038–0.056 mm/rev)
  • Applications and Performance:The Walter Titex X·treme DM is widely used in offshore oil and gas (drilling duplex stainless steel risers) and marine engineering (2507 super duplex hull components). In a test drilling 10 mm diameter, 100 mm deep holes (10× depth) in 2205 duplex stainless steel, the X·treme DM completed 70–80 holes per bit, while a standard deep-hole bit failed after 30–40 holes. The parabolic flutes also eliminated chip clogging, reducing drill bit breakage by 60%.
  • Model Range:
    • Walter Titex X·treme DM 10.0×100: 10 mm diameter, 10× depth (100 mm)
    • Walter Titex X·treme DM 15.0×150: 15 mm diameter, 10× depth (150 mm)
    • Walter Titex X·treme DM 8.0×80: 8 mm diameter, 10× depth (80 mm)

5.4 Zhuzhou Cemented Carbide: ZCC·CT D100 Series

Zhuzhou Cemented Carbide (ZCC·CT), a leading Chinese tool manufacturer, offers the ZCC·CT D100 series as a cost-effective alternative to imported brands, suitable for small to medium-volume stainless steel drilling.
  • Key Features:
    • Carbide Grade: YG6X, a medium-grain WC (1.5 μm) with 6% Co, offering good hardness (91 HRA) and wear resistance at a lower cost. YG6X is optimized for austenitic and ferritic stainless steels, where high toughness is not the primary requirement.
    • Coating: Single-layer TiAlN coating, with a maximum operating temperature of 800°C and good adhesion to the carbide substrate. The coating is cost-effective and provides sufficient protection for general-purpose drilling.
    • Geometry: 135° point angle with a standard chisel edge (simplified for cost), 30° helix angle for rigidity, and 2 flutes with a straight design (easy to manufacture and sharpen). The cutting edges are lightly honed (0.01 mm radius) to prevent chipping.
    • Price Point: The ZCC·CT D100 is 30–40% cheaper than imported brands like Sandvik or Kennametal, making it ideal for budget-conscious manufacturers.
  • Recommended Parameters:
    • 304 Stainless Steel: SFM 25–35, RPM (10 mm diameter) ~2582–3535, Feed Rate (2-flute) 0.001–0.0018 IPR (0.025–0.046 mm/rev)
    • 430 Ferritic Stainless Steel: SFM 30–40, RPM (10 mm) ~3098–4131, Feed Rate 0.0012–0.0022 IPR (0.030–0.056 mm/rev)
    • 316 Stainless Steel: SFM 22–30, RPM (10 mm) ~2270–3098, Feed Rate 0.0009–0.0016 IPR (0.023–0.041 mm/rev)
  • Applications and Performance:The ZCC·CT D100 is commonly used in stainless steel furniture (304 grade), electrical enclosures (430 grade), and small appliances (304L grade). In a test drilling 6 mm diameter holes in 304 stainless steel (15 mm depth), the D100 achieved 50–60 holes per bit, which is 20–30% less than the Sandvik CoroDrill 860 but at a significantly lower cost. It is also easy to regrind, with most users reporting 2–3 regrinds before the bit is retired.
  • Model Range:
    • ZCC·CT D100-0600: 6 mm diameter, 3× depth (18 mm)
    • ZCC·CT D100-1000: 10 mm diameter, 5× depth (50 mm)
    • ZCC·CT D100-1400: 14 mm diameter, 3× depth (42 mm)

6. Factors Influencing Rotation Speed and Feed Rate Adjustment

Even with material-specific recommendations and high-quality drill bits, external factors like machine rigidity, cooling method, and workpiece setup can require adjustments to rotation speed and feed rate. Below are the most critical factors and their impact on parameter selection.

6.1 Machine Rigidity

Machine rigidity refers to the ability of the drilling machine (e.g., CNC machining center, bench drill, radial drill) to resist deflection under cutting forces. Poor rigidity leads to vibration, which causes uneven cutting, increased wear, and reduced hole quality.
  • High Rigidity Machines (CNC Machining Centers): Machines like the Haas VF-2 or FANUC Robodrill have a rigid frame, high-precision spindles (runout <0.005 mm), and heavy-duty feed systems. These machines can handle the upper end of the recommended SFM and feed rate ranges. For example, a CNC center drilling 304 stainless steel with a Sandvik CoroDrill 860 can use SFM 45 (max for AlCrN coating) and feed rate 0.0045 IPR, as vibration is minimal.
  • Low Rigidity Machines (Bench Drills): Bench drills like the Jet J-2530 have a lighter frame and less precise spindles (runout >0.01 mm). Vibration is more common, so parameters must be reduced by 15–25%. For the same CoroDrill 860 and 304 stainless steel, a bench drill should use SFM 32–35 and feed rate 0.003–0.0035 IPR to avoid vibration-induced wear.
  • Adjustment Tip: To assess rigidity, perform a “test drill” with a scrap workpiece. If the drill bit vibrates (audible noise or visible workpiece movement), reduce feed rate by 10% first—vibration is often caused by excessive feed force. If vibration persists, reduce SFM by 10%.

6.2 Cooling Method

Cooling is critical for stainless steel drilling, as it dissipates heat, reduces friction, and flushes away chips. The type of cooling method directly impacts the maximum safe SFM and feed rate.
  • Emulsified Oil (Flood Cooling): The most common method, using a mixture of water and mineral oil (5–10% oil concentration). Emulsified oil has high heat capacity, making it ideal for medium to high SFM (25–45). It is suitable for most stainless steel grades and drill bit types. For example, flood cooling allows a TiAlN-coated bit to use SFM 35 for 304 stainless steel, compared to 25–30 without cooling.
  • Oil Mist Lubrication (Minimum Quantity Lubrication, MQL): MQL systems like the Unist MistBuster deliver a fine mist of oil (1–5 mL/hour) and compressed air to the cutting zone. MQL provides excellent lubricity (reducing friction by 40% compared to flood cooling) but lower heat capacity. It is ideal for high SFM (35–45) drilling of thin stainless steel sheets (0.5–5 mm) or when coolant cleanup is a concern. For 316L stainless steel with an AlCrN-coated bit, MQL allows SFM 38 (vs. 35 with flood cooling) due to better lubrication.
  • Dry Drilling: No coolant is used, which is rare for stainless steel but sometimes necessary for applications where coolant contamination is a problem (e.g., medical devices). Dry drilling requires a 20–30% reduction in SFM to limit heat buildup. For example, a dry-drilled 304 stainless steel with a TiAlN-coated bit should use SFM 18–25, compared to 25–35 with flood cooling.
  • Coolant Application Tip: Ensure coolant reaches the cutting zone directly. For deep holes (>5× diameter), use a coolant nozzle that directs flow into the flute—this prevents chips from blocking the coolant path. For through-tool coolant bits (e.g., Kennametal KSEM 4400), maintain a coolant pressure of 5–10 bar to ensure adequate flow.

6.3 Workpiece Setup and Clamping

The way the workpiece is clamped (secured) affects its stability during drilling. Unstable workpieces shift under cutting forces, leading to hole misalignment, increased work hardening, and drill bit breakage.
  • Secure Clamping (Vises or Fixtures): Using a machine vise (e.g., Kurt D688) or custom fixture to clamp the workpiece tightly (no movement when pushed) ensures stability. Secure clamping allows higher feed rates, as the workpiece does not shift. For example, a 304 stainless steel plate clamped in a Kurt vise can use feed rate 0.004 IPR (4-flute bit), while an unclamped plate should use 0.0025–0.003 IPR to avoid shifting.
  • Unstable Clamping (Hand-Held or Light Clamps): Workpieces clamped with light clamps (e.g., C-clamps) or held by hand are prone to movement. Feed rate must be reduced by 25–30% to minimize cutting force. For a 430 stainless steel sheet held with C-clamps, a 2-flute bit should use feed rate 0.0009–0.0012 IPR, compared to 0.0015–0.0022 IPR with secure clamping.
  • Clamping Tip: For large or irregular workpieces, use multiple clamps to distribute pressure evenly. Avoid clamping near the drilling location—clamps should be placed at least 2× the hole diameter away from the hole center to prevent workpiece deformation.

6.4 Hole Depth

Drilling depth affects chip evacuation and drill bit rigidity. Deep holes (>3× diameter) are more prone to chip clogging and bit deflection, requiring parameter adjustments.
  • Shallow Holes (<3× Diameter): Chips are easily evacuated, and the drill bit has minimal deflection. Parameters can be at the upper end of the recommended range. For example, a 10 mm diameter, 20 mm deep hole (2× depth) in 304 stainless steel can use SFM 40 and feed rate 0.004 IPR (4-flute bit).
  • Medium Depth Holes (3×–5× Diameter): Chip evacuation becomes more challenging, and the bit may deflect slightly. Reduce feed rate by 15–20%. For a 10 mm diameter, 40 mm deep hole (4× depth), use feed rate 0.0032–0.0034 IPR, keeping SFM at 40.
  • Deep Holes (>5× Diameter): Chip clogging is common, and bit deflection is significant. Reduce feed rate by 25–30% and SFM by 10–15%. For a 10 mm diameter, 60 mm deep hole (6× depth), use SFM 34–36 and feed rate 0.0028–0.003 IPR. Additionally, use a “啄钻” (peck drilling) cycle—drill 5–10 mm, retract the bit to evacuate chips, then continue.
  • Depth Adjustment Tip: For deep holes, use a drill bit with through-tool coolant (e.g., Kennametal KSEM 4400) or parabolic flutes (e.g., Walter Titex X·treme DM) to improve chip flow. Peck drilling cycles should be programmed to retract the bit fully out of the hole each time to ensure all chips are removed.

7. Practical Drilling Techniques and Precautions

Even with optimized parameters and high-quality tools, improper drilling techniques can lead to tool failure, poor hole quality, or workpiece damage. Below are practical techniques and precautions to ensure successful stainless steel drilling.

7.1 Pre-Drilling and Spot Drilling

Pre-drilling (drilling a smaller pilot hole before the final hole) and spot drilling (drilling a small indentation to guide the main drill bit) improve accuracy and reduce cutting forces, especially for large diameter holes (>15 mm) or hard stainless steel grades.
  • Spot Drilling: Use a spot drill (120°–135° point angle) to create a 2–3 mm deep indentation at the hole location. This guides the main drill bit, preventing it from “walking” (drifting off-center) during the initial cut. Spot drilling should use a low feed rate (0.0005–0.001 IPR) and SFM 15–20 (lower than the main drill) to avoid work hardening the guide hole.
  • Pre-Drilling: For final hole diameters >15 mm, drill a pilot hole with a diameter 30–50% of the final diameter (e.g., 6 mm pilot hole for a 15 mm final hole). The pilot hole reduces the cutting area of the main drill bit, lowering cutting force by 40–50%. The main drill bit can then use a higher feed rate (10–15% higher than without a pilot hole) since it only needs to remove material from the pilot hole’s circumference.
  • Example: Drilling a 20 mm diameter hole in 316L stainless steel.
    1. Spot drill with a 6 mm spot drill: SFM 18, RPM ~1146, Feed Rate 0.0008 IPR.
    2. Pre-drill with an 8 mm drill bit: SFM 25, RPM ~1243, Feed Rate 0.002 IPR.
    3. Final drill with a 20 mm drill bit: SFM 30, RPM ~587, Feed Rate 0.0035 IPR (15% higher than the 0.003 IPR recommended without pre-drilling).

7.2 Drill Bit Sharpening and Maintenance

Tungsten carbide drill bits can be resharpened 2–5 times (depending on wear) to extend their life. Proper sharpening maintains the original geometry, ensuring consistent performance.
  • Sharpening Guidelines:
    • Use a diamond grinding wheel (120–180 grit) for sharpening—carbide is too hard for conventional aluminum oxide wheels.
    • Maintain the original point angle (135° for stainless steel) and helix angle. A deviation of >5° in point angle will increase cutting force and wear.
    • Hone the cutting edge with a 800–1200 grit diamond stone to create a 0.01–0.02 mm edge radius—this prevents micro-chipping.
    • After sharpening, clean the flutes with a wire brush to remove carbide dust, which can cause friction during drilling.
  • Wear Inspection:
    • Check the drill bit after every 20–30 holes for signs of wear:
      • Rear Wear: Wear on the back of the cutting edge (most common). If wear exceeds 0.1 mm, resharpen the bit.
      • Edge Chipping: Small chips on the cutting edge. If chipping is <0.05 mm, hone the edge; if larger, resharpen.
      • Coating Damage: Delamination or discoloration of the coating. If the coating is damaged over >10% of the cutting edge, the bit should be resharpened (removing the damaged coating) or replaced.
  • Storage Tip: Store drill bits in a foam-lined case or drill bit holder to prevent edge damage. Avoid stacking bits, as this can chip the cutting edges.

7.3 Chip Management

Poor chip management leads to chip clogging, which causes overheating, bit binding, and breakage. Effective chip management ensures chips are evacuated quickly and safely.
  • Chip Shape: Optimal chips for stainless steel are short, curly “C” or “9” shaped chips. Long, stringy chips indicate low feed rate—increase feed rate by 10–15% to thicken the chips and make them stiffer. Powdery chips indicate high SFM or dull edges—reduce SFM by 10% or resharpen the bit.
  • Chip Evacuation Techniques:
    • For 2-flute bits, use a higher helix angle (35°–40°) to lift chips out of the hole.
    • For deep holes, use peck drilling with a retract distance of 2–3× the flute depth to ensure chips are cleared.
    • Use compressed air (5–8 bar) to blow chips out of the hole between pecks—this is especially useful for MQL or dry drilling.
  • Safety Note: Always wear safety glasses and gloves when handling chips—stainless steel chips are sharp and can cause cuts. Use a chip rake or brush to remove chips from the workpiece, not your hands.

7.4 Hole Quality Inspection

After drilling, inspect the hole for accuracy, surface finish, and burrs to ensure it meets specifications.
  • Accuracy Checks:
    • Diameter: Use a micrometer to measure the hole diameter. For most applications, the tolerance is ±0.1 mm. If the diameter is too large, reduce feed rate (excessive feed causes hole expansion); if too small, check for tool wear (dull bits produce smaller holes).
    • Perpendicularity: Use a square or coordinate measuring machine (CMM) to check if the hole is perpendicular to the workpiece surface. A tolerance of <0.1 mm/m is typical. If perpendicularity is poor, check workpiece clamping (uneven clamping causes tilting) or machine rigidity (vibration causes deflection).
  • Surface Finish:
    • The recommended surface finish for stainless steel holes is Ra 1.6–3.2 μm. A rough finish (Ra >6.3 μm) indicates dull edges or low feed rate—resharpen the bit or increase feed rate.
    • Use a deburring tool (e.g., a countersink or deburring knife) to remove burrs from the hole edges. Burrs can cause assembly issues (e.g., difficulty inserting fasteners) and are a safety hazard.

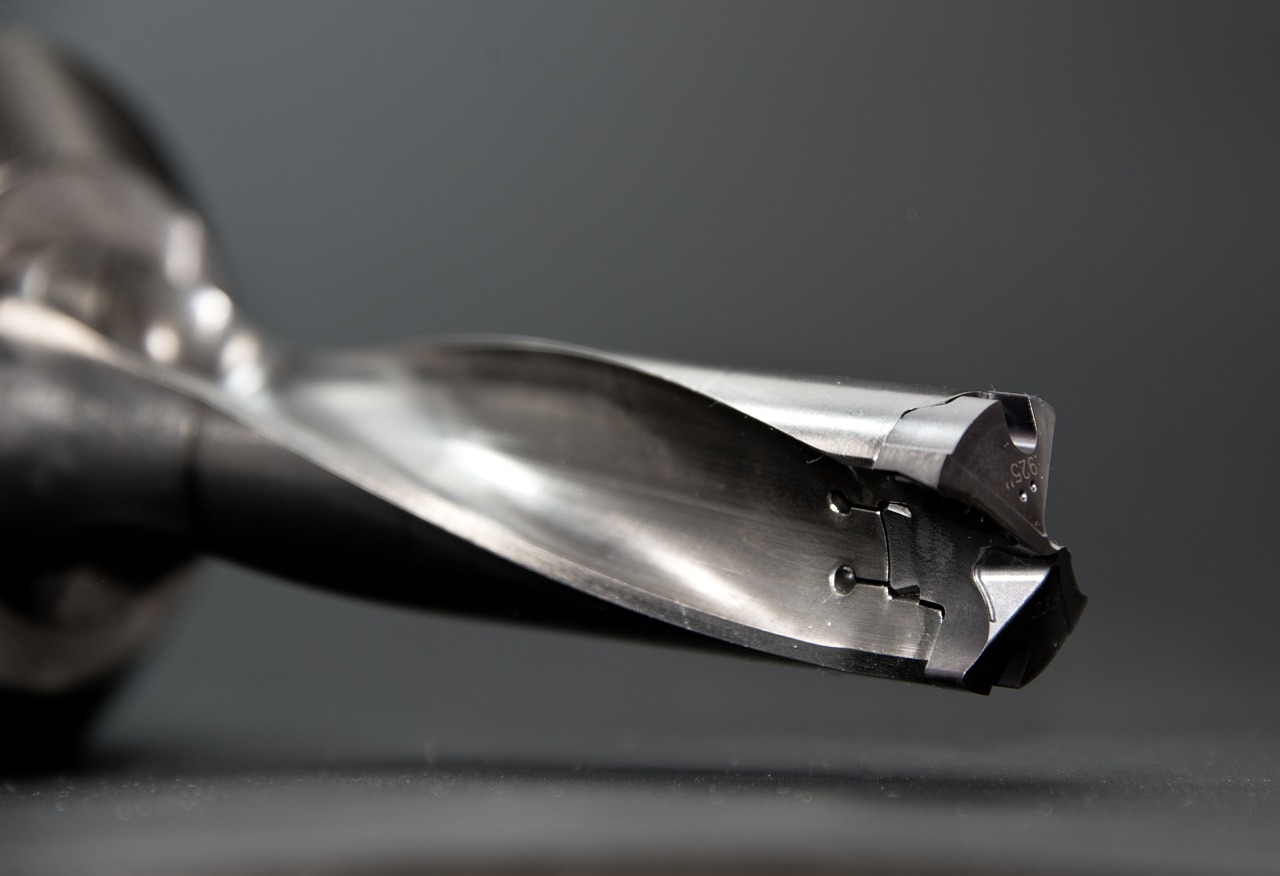

drill head, drill bit, drill, metal, metal drill, milling, milling machine, tool, metal processing, industry, cnc, rotate, machine, cnc machine, production, lathe, to cut, metal construction, engineering, rounding, drilling machine, mechanics, technology, cutting, drill bit, drill bit, drill bit, drill bit, drill bit, drill, drill, drill, drill, drill, milling, milling, milling machine, cnc, cnc, cnc, cnc, cnc machine

8. Common Drilling Issues and Troubleshooting Strategies

Even with careful parameter selection and technique, issues can arise during stainless steel drilling. Below are the most common problems, their root causes, and step-by-step solutions.

8.1 Drill Bit Wear Too Fast

Symptoms: The drill bit becomes dull after 10–20 holes (far fewer than the expected 50–100 for tungsten carbide in stainless steel), with visible rear wear (a flat, worn area on the back of the cutting edge), coating discoloration (blue or brown from overheating), or micro-chipping along the edge. Holes may also show increased roughness or inconsistent diameter as wear progresses.Root Causes:
  1. Excessive SFM: When rotation speed (converted to SFM) exceeds the coating or carbide grade’s thermal limit, cutting temperatures spike above 800°C (for TiAlN) or 1,100°C (for AlCrN). This softens the cobalt binder in the carbide, weakening the bond between WC particles and accelerating edge wear. For example, running a TiAlN-coated bit at 45 SFM on 304 stainless steel (well above its 25–35 SFM range) can reduce tool life by 70% due to rapid coating oxidation and carbide degradation.
  2. Insufficient Cooling: Poor coolant delivery—such as a blocked nozzle, low coolant pressure (below 3 bar), or improper alignment—fails to dissipate heat from the cutting zone. Without adequate cooling, 70–80% of heat remains in the drill bit, rather than being carried away by coolant or chips. This continuous thermal stress wears down the cutting edge and causes coating delamination. Even with a high-performance bit like the Sandvik CoroDrill 860, inadequate cooling can reduce its life from 150 holes to 40–50 holes in 316L stainless steel.
  3. Work Hardening Due to Low Feed Rate: A feed rate that is too low (below the recommended 0.001 IPR for 2-flute bits) causes the cutting edge to rub against the workpiece instead of shearing the metal. This rubbing induces plastic deformation in the stainless steel’s surface layer, increasing its hardness by 30–50% (e.g., 304 stainless steel’s base hardness of 170 HV jumps to 240 HV). The hardened layer acts like an abrasive, wearing down the drill bit’s edge much faster than the base material. This issue is especially common with martensitic grades like 410, where even minor rubbing can create a highly abrasive surface.
  4. Abrasive Contaminants in the Workpiece: Stainless steel may contain small inclusions (e.g., titanium carbides, oxides) or residual scale from manufacturing (e.g., heat treatment or forging). These hard particles act as miniature cutting tools, scraping against the drill bit’s edge and causing premature wear. For example, duplex stainless steel 2205 often has titanium nitride inclusions that can reduce tool life by 30% if not accounted for.
Troubleshooting Solutions:
  • Reduce SFM to the Lower End of the Recommended Range: If wear is linked to overheating, lower SFM by 10–15% first. For a TiAlN-coated bit on 304 stainless steel, reduce SFM from 35 to 30–31.5. Monitor the bit’s temperature after drilling—if it remains cool to the touch (not warm enough to sizzle when touched to water), the new SFM is appropriate.
  • Optimize Coolant Delivery:
    • Check coolant nozzles for clogs; clean them with a wire brush or compressed air if needed.
    • Increase coolant pressure to 5–8 bar for deep holes (>5× diameter) to ensure flow reaches the cutting zone.
    • For through-tool coolant bits (e.g., Kennametal KSEM 4400), verify that coolant flows evenly from both holes—uneven flow causes localized overheating.
  • Increase Feed Rate to Avoid Rubbing: Raise feed rate to the mid-to-upper end of the recommended range. For a 2-flute bit on 304 stainless steel, increase feed rate from 0.001 IPR to 0.0015–0.0018 IPR. This ensures the cutting edge shears the material before work hardening occurs. Confirm with chip shape—curly, “C”-shaped chips indicate proper shearing, while powdery or stringy chips mean feed rate is still too low.
  • Pre-Treat the Workpiece to Remove Contaminants: If inclusions or scale are present, grind or sand the drilling area to remove the top 0.1–0.2 mm of material. For large workpieces, use a chemical descaling agent (e.g., nitric acid-based solutions) to dissolve oxide scale before drilling. This step can extend tool life by 25–40% for contaminated stainless steel.

8.2 Drill Bit Breakage

Symptoms: The drill bit snaps suddenly during drilling, often accompanied by a loud “click” or vibration. Broken bits may leave a jagged hole edge, and the workpiece may have burrs or deformation around the hole. Breakage typically occurs at the shank-tip junction or along the flute, depending on the cause.Root Causes:
  1. Excessive Feed Rate: A feed rate that exceeds the drill bit’s structural capacity creates extreme axial force on the cutting edge. Tungsten carbide, while hard, has low toughness—excessive force can cause the bit to bend and snap, especially at the flute root (a stress concentration point). For example, running a 10 mm diameter, 2-flute ZCC·CT D100 bit at 0.0025 IPR (above its 0.001–0.0018 IPR range) on 316 stainless steel can generate axial forces of 1,200 N, well above the bit’s 800 N maximum load.
  2. Machine Rigidity Issues: Low-rigidity machines (e.g., old bench drills with worn spindles) or loose setups cause the drill bit to vibrate horizontally during drilling. This lateral vibration creates alternating stress on the bit, leading to fatigue failure (cracks that grow until the bit breaks). For instance, a bench drill with spindle runout of 0.02 mm drilling 15 mm holes in 430 stainless steel will cause the bit to wobble, increasing stress and breaking the bit after 5–10 holes.
  3. Chip Clogging: Long, stringy stainless steel chips can become trapped in the drill bit’s flutes, blocking coolant flow and increasing torque. As torque builds, the bit may bind in the hole, and the sudden increase in rotational force can snap the bit. This is common with 2-flute bits that have narrow flutes or when drilling deep holes (>8× diameter) without pecking.
  4. Incorrect Pilot Hole or Spot Drilling: A misaligned pilot hole (off by >0.1 mm) or missing spot drill causes the main drill bit to “walk” (drift off-center) when starting the hole. This off-center load creates bending stress on the bit—over time, the stress causes the bit to break at the tip. For example, a 20 mm diameter Walter Titex X·treme DM bit drilling into a misaligned 8 mm pilot hole will experience uneven force on one cutting edge, leading to breakage after 2–3 holes.
  5. Drill Bit Dullness: A dull bit requires more force to cut through the material, as the worn edge cannot shear the stainless steel efficiently. The increased force puts extra stress on the bit, making it more prone to breaking. A dull bit may also generate more heat, further weakening the carbide and increasing brittleness.
Troubleshooting Solutions:
  • Reduce Feed Rate to the Recommended Range: Lower feed rate by 15–20% if breakage is due to excessive force. For the 10 mm ZCC·CT D100 bit mentioned earlier, reduce feed rate from 0.0025 IPR to 0.0018 IPR—this lowers axial force to ~750 N, below the bit’s limit. Test with a force gauge (if available) to ensure forces stay within the manufacturer’s specifications (typically 500–1,000 N for 5–15 mm carbide bits).
  • Improve Machine Rigidity and Setup:
    • Tighten all machine components (spindle clamps, feed slides) to reduce play. For bench drills, replace worn spindle bearings to reduce runout to <0.01 mm.
    • Use a rigid workholding solution, such as a machine vise with serrated jaws (e.g., Kurt D688) instead of C-clamps. Secure the vise to the machine table with T-bolts to prevent movement.
  • Prevent Chip Clogging with Peck Drilling: Program a peck drilling cycle where the bit drills 3–5× its diameter, then retracts fully to evacuate chips. For a 10 mm bit drilling a 60 mm deep hole (6× depth) in 2205 duplex stainless steel, peck every 30 mm. This reduces torque by 40–50% and eliminates binding. Additionally, use a 4-flute bit (e.g., Sandvik CoroDrill 860) with polished flutes to improve chip flow.
  • Ensure Proper Pilot Hole Alignment:
    • Use a spot drill with the same point angle as the main bit (135°) to create a precise guide indentation. Drill the spot hole to a depth of 1–2× the bit’s diameter (e.g., 10 mm depth for a 10 mm main bit).
    • For pilot holes, ensure the pilot bit diameter is 30–50% of the main bit diameter (e.g., 8 mm pilot for a 20 mm main bit) and that the pilot hole is drilled on-center using a center punch. If alignment is critical, use a CNC machine with linear scales to ensure accuracy.
  • Replace Dull Bits Promptly: Inspect bits after every 20 holes for signs of dullness (e.g., shiny, flattened cutting edges or increased drilling time). Resharpen or replace bits before they become too dull—this reduces cutting force and prevents breakage.

8.3 Poor Hole Quality

Symptoms: Holes fail to meet specifications, including excessive diameter deviation (>±0.1 mm), rough surface finish (Ra >6.3 μm), large burrs on the entry/exit sides, or poor perpendicularity (>0.1 mm/m). In severe cases, holes may be tapered (wider at the top than the bottom) or out of round (>0.05 mm ovality).Root Causes:
  1. Drill Bit Wear or Dullness: A worn cutting edge cannot produce a clean shear cut, leading to a rough surface finish and irregular diameter. As the bit dulls, it pushes material aside rather than cutting it, causing the hole to expand (diameter larger than intended) or become tapered. For example, a dull 8 mm Kennametal KSEM 4400 bit on 430 stainless steel may drill holes with a diameter of 8.15 mm (0.15 mm oversize) and a surface finish of Ra 8 μm.
  2. Incorrect Feed Rate:
  • Excessive Feed Rate: Too high a feed rate causes the cutting edge to “plow” through the material, creating a rough surface and burrs on the exit side. It also increases lateral force, leading to hole expansion (e.g., a 10 mm bit at 0.0045 IPR on 304 stainless steel may drill 10.1 mm holes).
  • Insufficient Feed Rate: Too low a feed rate results in rubbing, which work-hardens the material and leaves a rough, torn surface. The slow advance also causes the bit to vibrate slightly, leading to out-of-round holes.
  1. Inadequate Workpiece Clamping: Loose clamping allows the workpiece to shift or tilt during drilling, leading to poor perpendicularity. For example, a 304 stainless steel plate held with a single C-clamp may tilt 0.5° when drilled, resulting in a hole that is 0.5 mm off perpendicular over a 50 mm depth.
  2. Drill Bit Geometry Errors: Improper sharpening (e.g., uneven cutting edges, incorrect point angle) or manufacturing defects (e.g., unequal flute depth) cause the bit to cut unevenly. A bit with one cutting edge longer than the other will drill an out-of-round hole, while a 118° point angle (instead of 135°) will generate more heat and rough surfaces.
  3. Coolant Contamination: Coolant contaminated with chips, dirt, or oil breakdown products loses its lubricity and heat-dissipating capacity. Contaminated coolant increases friction between the bit and workpiece, leading to rough surfaces and burrs. For example, coolant with >5% chip content can increase surface roughness by 50% on 316L stainless steel.
Troubleshooting Solutions:
  • Replace or Resharpen Worn Bits: If the bit is dull, resharpen it using a diamond grinding wheel to restore the original 135° point angle and cutting edge sharpness. For bits with excessive wear (rear wear >0.15 mm), replace them with new ones. After resharpening, hone the cutting edge with a 1200-grit diamond stone to achieve a smooth edge (Ra <0.4 μm), which improves surface finish.
  • Adjust Feed Rate to Optimal Levels:
    • For oversize holes or burrs, reduce feed rate by 10–15%. For a 10 mm bit on 304 stainless steel, lower feed rate from 0.004 IPR to 0.0034–0.0036 IPR to reduce plowing.
    • For rough surfaces or out-of-round holes, increase feed rate to the mid-range. For a 8 mm bit on 430 stainless steel, raise feed rate from 0.0012 IPR to 0.0015–0.0018 IPR to ensure proper shearing.
  • Secure Workpieces with Rigid Clamping:
    • Use a 4-jaw chuck or machine vise with multiple clamps to distribute pressure evenly. For large workpieces, add support blocks under the drilling area to prevent flexing.
    • Use a dial indicator to check for workpiece movement before drilling—ensure no movement (>0.01 mm) when force is applied to the workpiece.
  • Verify Drill Bit Geometry:
    • Use a drill bit gauge to check the point angle and flute symmetry. Ensure both cutting edges are the same length (±0.02 mm) and that the helix angle matches the manufacturer’s specification (30°–40° for stainless steel).
    • For 新买 bits, inspect them for defects (e.g., uneven flutes) before use—defective bits should be returned to the supplier.
  • Maintain Clean Coolant:
    • Replace coolant every 2–3 months (or as recommended by the manufacturer) to prevent breakdown.
    • Use a coolant filter (10–20 μm) to remove chips and debris. Check the filter weekly and clean or replace it when clogged.
    • Add coolant additives (e.g., anti-wear agents) to restore lubricity if contamination is mild—this can improve surface finish by 30–40%.

8.4 Chip Clogging

Symptoms: Chips accumulate in the drill bit’s flutes, preventing coolant from reaching the cutting zone. Drilling resistance increases, and the bit may slow down or bind. Chips may also wrap around the bit’s shank, creating a safety hazard. In severe cases, clogging causes the bit to overheat (discolored coating) or break.Root Causes:
  1. Low Feed Rate: A feed rate that is too low produces thin, stringy chips (thickness <0.1 mm) that are flexible and easily wrap around the bit or become trapped in the flutes. For example, a 2-flute 10 mm bit on 316L stainless steel running at 0.0008 IPR (below its 0.001–0.0018 IPR range) creates chips that are 0.08 mm thick—too thin to evacuate effectively.
  2. Inappropriate Helix Angle: A low helix angle (<30°) reduces the bit’s ability to lift chips out of the hole. Helix angle determines the “lift” force of the flutes—lower angles mean chips slide more slowly, increasing the chance of clogging. This is common with general-purpose bits (25° helix angle) used for deep-hole drilling of stainless steel.
  3. Insufficient Cooling or Lubrication: Without adequate coolant, stainless steel chips stick to the drill bit’s flutes due to high friction and heat. The sticky chips accumulate, blocking the flute channels. This is especially problematic with dry drilling or MQL systems that deliver insufficient oil (less than 1 mL/hour).
  4. Deep Hole Drilling Without Pecking: Drilling holes deeper than 5× the bit’s diameter (e.g., 50 mm deep with a 10 mm bit) means chips have to travel a long distance to exit. Without periodic retraction (pecking), chips pile up at the bottom of the hole and clog the flutes.
  5. Flute Design Limitations: 2-flute bits have narrower flutes than 4-flute bits, reducing chip capacity. While 2-flute bits are better for chip evacuation in some materials, their narrow flutes can clog with stainless steel’s long chips, especially if the feed rate is not optimized.
Troubleshooting Solutions:
  • Increase Feed Rate to Thicken Chips: Raise feed rate to produce thicker, stiffer chips (0.15–0.2 mm thick) that are easier to evacuate. For the 10 mm 2-flute bit on 316L stainless steel, increase feed rate from 0.0008 IPR to 0.0012–0.0015 IPR. Thicker chips will curl into “C” shapes and be lifted out of the hole by the flutes.
  • Use a Drill Bit with a Higher Helix Angle: Switch to a bit with a helix angle of 35°–40°, such as the Sandvik CoroDrill 860 (38° helix angle) or Walter Titex X·treme DM (35° helix angle). Higher helix angles increase chip lift force, moving chips out of the hole 20–30% faster than low-angle bits.
  • Optimize Cooling and Lubrication:
    • For flood cooling, increase coolant flow rate to 5–10 L/min for bits 10–15 mm in diameter—higher flow flushes chips out of the flutes.
    • For MQL systems, increase oil delivery to 3–5 mL/hour and adjust air pressure to 6–8 bar to ensure the mist reaches the cutting zone. Add a lubricity additive to the MQL oil to reduce chip adhesion.
  • Implement Peck Drilling for Deep Holes: Program the machine to peck (drill and retract) every 3–4× the bit’s diameter. For a 10 mm bit drilling a 60 mm deep hole, peck at 30 mm and 50 mm depths, retracting fully each time to clear chips. This eliminates clogging and reduces heat buildup.
  • Switch to a 4-Flute Bit for High-Volume Drilling: 4-flute bits like the Kennametal KSEM 4400 have wider flutes than 2-flute bits, increasing chip capacity. While they require higher feed rates (0.002–0.004 IPR), their flutes can handle more chips without clogging. For high-volume production (100+ holes), 4-flute bits reduce downtime from chip clearing by 50%.

9. Conclusion: Achieving Optimal Drilling Performance in Stainless Steel

Drilling stainless steel with tungsten carbide drill bits requires a strategic balance of rotation speed, feed rate, tool selection, and process control. The unique properties of stainless steel—high toughness, low thermal conductivity, work hardening, and stringy chip formation—demand precise parameter tuning to maximize tool life, productivity, and hole quality. By following the guidelines outlined in this guide, manufacturers and machinists can overcome the challenges of stainless steel drilling and achieve consistent, cost-effective results.
Key takeaways include:
  • Prioritize SFM Based on Coating and Material: AlCrN-coated bits tolerate higher SFM (30–45) for austenitic grades like 304, while TiAlN-coated bits are better for lower-SFM applications (20–30) with martensitic or duplex grades. Always calculate RPM from SFM and bit diameter to ensure consistent cutting velocity.
  • Set Feed Rate for Chip Quality and Tool Strength: Aim for 0.001–0.002 IPR for 2-flute bits and 0.002–0.004 IPR for 4-flute bits, adjusting based on hole depth and machine rigidity. Curly, “C”-shaped chips indicate optimal feed rate, while stringy or powdery chips signal the need for adjustment.
  • Choose the Right Drill Bit: Select bits with fine-grain carbide (for wear resistance) and 135° split points (to reduce cutting force) for stainless steel. Trusted models like the Sandvik CoroDrill 860 (high performance), Kennametal KSEM 4400 (versatility), and Walter Titex X·treme DM (deep holes) deliver reliable results.
  • Optimize External Factors: Ensure machine rigidity (use CNC centers for high-speed drilling), proper cooling (flood or MQL), and secure workpiece clamping to avoid vibration and overheating. Use peck drilling for deep holes and pre-drilling for large diameters to reduce tool stress.
  • Monitor and Maintain: Inspect bits regularly for wear, resharpen them to maintain geometry, and troubleshoot issues like breakage or clogging promptly. Proper maintenance extends tool life by 2–3× and reduces downtime.
By integrating these practices into daily operations, even challenging stainless steel grades—such as 316L, 2205 duplex, and 410 martensitic—can be drilled efficiently. The result is not only higher productivity and lower tool costs but also high-quality holes that meet strict industry standards for accuracy and surface finish.

Share your love

Leave a Reply

Related Posts
