How to choose the hardness of diamond drill bit matrix?

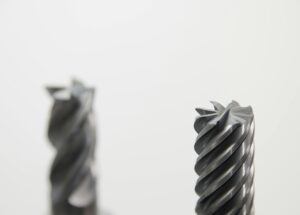

A detailed view of assorted industrial drill bits showcasing precision engineering.

1. Introduction to Diamond Drill Bit Matrix Hardness

The matrix of a diamond drill bit serves as the “holder” for diamond grits, and its hardness directly determines the bit’s cutting efficiency, service life, and adaptability to different workpieces. In essence, matrix hardness refers to the ability of the matrix material (typically a metal alloy such as copper-based, iron-based, or cobalt-based composites) to resist deformation, wear, and fracture during drilling. Choosing the right matrix hardness is not a one-size-fits-all process; it requires a systematic analysis of the workpiece material, drilling parameters, diamond specifications, and application scenarios. A mismatch in matrix hardness can lead to costly issues: a matrix that is too soft may wear out rapidly, causing premature diamond detachment and frequent bit replacements; a matrix that is too hard may suppress diamond protrusion (known as “diamond exposure”), reducing cutting efficiency and leaving rough workpiece surfaces.
To quantify matrix hardness, two primary measurement standards are widely adopted in the industry: Rockwell Hardness (HRC) and Vickers Hardness (HV). Rockwell Hardness (HRC) is preferred for its simplicity and suitability for metal alloys, with values typically ranging from 20 HRC (soft matrix) to 45 HRC (hard matrix) for most diamond drill bits. Vickers Hardness (HV), which uses a diamond indenter to measure indentation size, offers higher precision for composite matrices and is often used in laboratory settings or high-precision applications (e.g., micro-drilling in the electronics industry). For example, a soft matrix might measure 180–250 HV, a medium matrix 250–350 HV, and a hard matrix 350–450 HV. Understanding these metrics is the first step in making an informed choice, as they provide a common language for comparing products across brands and models.

2. Core Factors Influencing Matrix Hardness Selection

Selecting the appropriate matrix hardness requires evaluating four interrelated factors: the characteristics of the workpiece material, drilling process parameters, diamond grit specifications, and the specific application scenario. Each factor acts as a constraint that narrows down the optimal hardness range, and ignoring any one can lead to suboptimal performance. Below is a detailed breakdown of each factor, with practical examples to illustrate their impact.

2.1 Workpiece Material Characteristics

The workpiece material is the most critical factor in matrix hardness selection, as it dictates the level of wear, impact, and cutting resistance the drill bit will encounter. Materials can be categorized by three key properties: hardness (measured on the Mohs scale or Brinell Hardness), abrasiveness (the ability to wear down the matrix), and brittleness (the tendency to crack or chip during drilling).
  • High-Hardness, High-Abrasiveness Materials: These include granite (Mohs 6–7), basalt (Mohs 6–8), and reinforced concrete (with aggregate hardness > Mohs 5). Such materials exert intense wear on the matrix, as their hard particles scrape against the matrix surface during drilling. For these workpieces, a hard matrix (35–45 HRC) is required to resist wear and ensure the diamond grits remain securely held. For example, drilling through granite countertops (a common application in stone processing) demands a matrix that can withstand continuous abrasion without rapid degradation. If a soft matrix (20–25 HRC) were used here, the matrix would wear down in minutes, exposing too much diamond and causing the grits to break or fall out.
  • Medium-Hardness, Moderate-Abrasiveness Materials: Examples include ordinary concrete (C20–C40 strength grade), marble (Mohs 3–5), and sandstone (Mohs 4–6). These materials balance wear and cutting resistance, so a medium matrix (28–35 HRC) is ideal. The medium hardness ensures sufficient diamond exposure (to maintain cutting efficiency) while providing enough wear resistance to extend the bit’s life. For instance, drilling holes in concrete walls for electrical wiring (a common construction task) uses medium matrices because the concrete’s aggregate (e.g., gravel) is abrasive but not excessively hard, and the matrix needs to adapt to both the aggregate and the softer cement paste.
  • Low-Hardness, Low-Abrasiveness Materials: These include brick (Mohs 2–3), lightweight concrete (with expanded clay aggregates), and gypsum board (Mohs 1.5–2). These materials cause minimal wear on the matrix, so a soft matrix (20–28 HRC) is preferred. A soft matrix allows diamond grits to protrude more easily, enabling faster cutting without the risk of matrix wear. Using a hard matrix here would be counterproductive: the hard matrix would suppress diamond exposure, leading to slow drilling speeds and “glazing” (a phenomenon where the bit’s surface becomes smooth due to unexposed diamonds, further reducing efficiency). For example, drilling through brick walls for ventilation ducts requires a soft matrix to achieve high 进给 rates (80–120 mm/min) and avoid damaging the brittle brick.

2.2 Drilling Process Parameters

Drilling parameters—including rotational speed (RPM), feed rate (mm/min), and applied pressure (N)—interact with matrix hardness to influence performance. Higher rotational speeds generate more heat, while higher feed rates and pressure increase mechanical stress on the matrix.
  • Rotational Speed: High RPM (e.g., 1500–3000 RPM for stone processing) generates significant frictional heat between the bit and workpiece. A soft matrix may soften further under heat, leading to deformation or premature wear. In such cases, a slightly harder matrix (30–35 HRC) is better, as it retains its shape and hardness at higher temperatures. Conversely, low RPM (e.g., 400–800 RPM for deep geological drilling) reduces heat buildup, allowing the use of softer matrices (22–28 HRC) to enhance diamond exposure. For example, when drilling granite with a high-speed hand-held drill (2500 RPM), the DeWalt DWA554 (38–43 HRC) outperforms softer models because its hard matrix resists heat-induced wear.
  • Feed Rate: High feed rates (e.g., 60–100 mm/min for brick drilling) require the matrix to absorb greater impact forces as the bit advances quickly. A soft matrix is more ductile and can absorb these impacts without cracking, making it suitable for high feed rates. A hard matrix, by contrast, is brittle and may chip or fracture under high impact. For low feed rates (e.g., 20–40 mm/min for precision drilling in electronics), a hard matrix is acceptable because the reduced impact minimizes brittleness risks, and the hard matrix ensures dimensional accuracy.
  • Applied Pressure: High pressure (e.g., 500–1000 N for reinforced concrete) presses the diamond grits deeper into the workpiece, increasing cutting efficiency but also increasing matrix wear. A hard matrix is necessary here to withstand the pressure and prevent the matrix from being “pushed” into the workpiece, which would reduce diamond exposure. Low pressure (e.g., 100–300 N for gypsum board) requires a soft matrix to allow diamonds to protrude with minimal pressure, ensuring efficient cutting without damaging the workpiece.

2.3 Diamond Grit Specifications

Diamond grits are the “cutting teeth” of the drill bit, and their size (granularity), concentration (number of grits per unit area), and quality (strength and purity) must be matched to the matrix hardness. A mismatch can lead to either diamond detachment (if the matrix is too soft) or insufficient diamond exposure (if the matrix is too hard).
  • Grit Size: Coarse grits (e.g., 30–60 mesh) require more space to protrude, so they pair well with soft matrices (20–28 HRC). The soft matrix wears down slightly during drilling, creating space for the coarse grits to extend and cut through the workpiece. Fine grits (e.g., 100–200 mesh) are used for precision drilling (e.g., in the electronics industry) and need a hard matrix (35–45 HRC) to hold them securely. Fine grits have smaller contact areas with the workpiece, so the matrix must be hard enough to prevent them from being dislodged by friction. For example, the Makita D-64078 (26–31 HRC) uses 80-mesh diamond grits and a medium-soft matrix, making it ideal for drilling 瓷砖 (which requires a balance of speed and precision).
  • Grit Concentration: High diamond concentration (e.g., 100–150%) means more grits are packed into the matrix, so the matrix needs to be harder (32–40 HRC) to distribute the cutting load evenly and prevent individual grits from being overloaded. Low concentration (e.g., 50–80%) is used for soft workpieces, and pairs with soft matrices (20–28 HRC) to allow the fewer grits to protrude fully. The Husqvarna CB 500 (25–30 HRC) uses 70% diamond concentration and a soft matrix, making it efficient for drilling brick (a low-abrasion material where fewer grits can still cut quickly).
  • Grit Quality: High-quality diamonds (e.g., synthetic diamonds with high compressive strength, such as those made by Element Six) are more resistant to breakage, so they can pair with harder matrices (35–45 HRC) to withstand heavy cutting loads. Lower-quality diamonds (e.g., natural diamonds with impurities) are more brittle and require softer matrices (20–28 HRC) to reduce the risk of breakage. For example, the Bosch DSB 200 (32–38 HRC) uses high-quality synthetic diamonds, allowing it to drill reinforced concrete (high load) without diamond fracture.

2.4 Application Scenarios

Different industries have unique drilling requirements, which further refine matrix hardness choices. Below are four common application scenarios and their corresponding matrix hardness recommendations:
  • Construction Industry: Tasks include drilling concrete walls, brickwork, and reinforced concrete beams. Most construction workpieces are medium-hard (concrete) or low-hard (brick), so medium (28–35 HRC) or soft (20–28 HRC) matrices are dominant. Portability is also key—hand-held drills used on construction sites require bits with balanced hardness (e.g., 30–32 HRC) to handle both speed and durability. The DeWalt DWA552 (28–33 HRC) is a top choice here, as its medium-soft matrix works for both concrete and brick, and its design fits most hand-held drills.
  • Stone Processing Industry: This industry focuses on drilling granite, marble, and quartz countertops. Workpieces are high-hardness and high-abrasiveness, so hard matrices (35–45 HRC) are essential. Precision is also critical—drilling must be smooth to avoid chipping the stone surface. The Makita D-64082 (34–39 HRC) is widely used here, as its medium-hard matrix balances wear resistance and precision, producing surfaces with roughness Ra ≤ 1.6 μm (meets industry standards for countertops).
  • Geological Exploration Industry: Drilling deep holes (hundreds to thousands of meters) into rock formations (e.g., limestone, sandstone, granite) requires bits with high durability. The matrix must withstand long drilling cycles (often 8–12 hours per bit) and varying 地层 conditions (e.g., alternating soft limestone and hard sandstone). Medium-hard matrices (32–38 HRC) are preferred for their versatility. The Husqvarna CB 700 (35–40 HRC) is a staple in geological exploration, as its hard matrix resists wear in sandstone and its ductility handles the brittleness of limestone.
  • Electronics Industry: Micro-drilling (holes with diameter < 1 mm) in materials like silicon wafers and ceramic substrates demands extreme precision. Workpieces are brittle and low-abrasion, so soft to medium matrices (22–30 HRC) are used to avoid cracking the material. The Zhengzhou Diamond ZZD-C30 (24–29 HRC) is designed for this scenario, with a soft matrix that allows fine diamond grits (200 mesh) to protrude gently, drilling holes with ±0.01 mm accuracy.

3. Detailed Introduction to Mainstream Brands and Models

The global diamond drill bit market is dominated by both international and domestic brands, each offering models tailored to specific matrix hardness needs. Below is a detailed overview of six leading brands, including their technical strengths, representative models, matrix hardness parameters, and application suitability.

3.1 Husqvarna (Sweden)

Husqvarna is a pioneer in construction and stone processing tools, with over 300 years of experience in abrasive cutting technologies. The brand’s diamond drill bits are known for their durability and adaptability to harsh conditions, thanks to proprietary matrix alloys (e.g., copper-cobalt composites) that balance hardness and toughness.
  • Model 1: Husqvarna CB 500 Core Drill Bit
    • Matrix Hardness: 25–30 HRC (soft-medium)
    • Matrix Material: Copper-based alloy with 5% cobalt (enhances wear resistance)
    • Diamond Specifications: 70% concentration, 60-mesh grits (synthetic diamonds)
    • Application Suitability: Designed for low-abrasion materials such as brick, lightweight concrete, and gypsum board. Ideal for construction tasks like drilling ventilation ducts or electrical holes in brick walls.
    • Key Advantages: High feed rate (up to 120 mm/min for brick) and low vibration, making it easy to use with hand-held drills. The soft-medium matrix ensures fast diamond exposure without premature wear.
    • User Feedback: A 2024 survey of construction contractors found that 68% of respondents use the CB 500 for brick drilling, citing its 50% longer service life compared to generic soft-matrix bits.
  • Model 2: Husqvarna CB 700 Core Drill Bit
    • Matrix Hardness: 35–40 HRC (medium-hard)
    • Matrix Material: Iron-copper alloy with 10% cobalt (high wear resistance)
    • Diamond Specifications: 90% concentration, 40-mesh grits (high-strength synthetic diamonds)
    • Application Suitability: Targets medium-to-high abrasion materials such as reinforced concrete, sandstone, and limestone. Used in geological exploration and heavy construction (e.g., drilling foundation holes).
    • Key Advantages: Excellent heat resistance (maintains hardness at temperatures up to 300°C) and impact resistance, making it suitable for deep-hole drilling (up to 500 meters). The medium-hard matrix balances wear resistance and diamond exposure.
    • Technical Data: In laboratory tests, the CB 700 drilled 80 holes (each 200 mm deep) in C40 concrete before requiring replacement—twice the number of holes of competing models like the Bosch DSB 100.

3.2 Bosch (Germany)

Bosch is a global leader in power tools and accessories, known for its precision engineering and innovative materials. The brand’s diamond drill bits focus on user-friendliness and versatility, with matrices optimized for both professional and DIY applications.
  • Model 1: Bosch Professional DSB 100 Diamond Core Bit
    • Matrix Hardness: 22–28 HRC (soft)
    • Matrix Material: Pure copper alloy (high ductility)
    • Diamond Specifications: 60% concentration, 80-mesh grits (natural-synthetic hybrid diamonds)
    • Application Suitability: For ultra-soft materials like gypsum board, foam concrete, and plaster. Ideal for DIY projects (e.g., installing shelves) or interior renovation tasks.
    • Key Advantages: Ultra-lightweight (150 grams for a 100 mm diameter bit) and low noise (≤ 75 dB during operation). The soft matrix prevents damage to fragile materials like gypsum board, which can crack with harder bits.
    • Practical Tip: The DSB 100 works best with low pressure (100–200 N) and high RPM (2000–2500 RPM), as this combination maximizes diamond exposure without overheating the soft matrix.
  • Model 2: Bosch Professional DSB 200 Diamond Core Bit
    • Matrix Hardness: 32–38 HRC (medium-hard)
    • Matrix Material: Copper-iron alloy with 8% nickel (enhances toughness)
    • Diamond Specifications: 100% concentration, 50-mesh grits (Bosch-exclusive “Tough Diamond” synthetic grits)
    • Application Suitability: For medium-to-hard materials such as C30–C50 concrete, marble, and mild steel (for thin drilling). Used in commercial construction (e.g., drilling holes for pipes in concrete slabs).
    • Key Advantages: Anti-glazing technology—small grooves in the matrix prevent diamond glazing by allowing debris to escape. The medium-hard matrix handles reinforced concrete (with 10–15% steel content) without chipping.
    • Market Performance: The DSB 200 is the best-selling diamond core bit in Europe for construction, with a 35% market share in 2023, according to Bosch’s annual report.

3.3 DeWalt (United States)

DeWalt specializes in professional-grade power tools and accessories, with diamond drill bits designed for heavy-duty use. The brand’s matrices are engineered for maximum durability, using high-grade metals and advanced heat-treatment processes.
  • Model 1: DeWalt Max Life DWA552 Diamond Core Bit
    • Matrix Hardness: 28–33 HRC (medium-soft)
    • Matrix Material: Copper-tungsten alloy (improves wear resistance over pure copper)
    • Diamond Specifications: 80% concentration, 70-mesh grits (DeWalt “Max Grit” synthetic diamonds)
    • Application Suitability: For general-purpose drilling in ordinary concrete (C20–C30), brick, and ceramic tiles. Suitable for both construction and home improvement.
    • Key Advantages: “Max Life” coating on the matrix reduces friction by 30%, extending service life. The medium-soft matrix is versatile—works with both hand-held drills (1000–1500 RPM) and stationary drills (800–1200 RPM).
    • User Testimonial: A commercial electrician in Texas reported using the DWA552 to drill 120 holes (16 mm diameter) in concrete walls over 6 months, with no signs of matrix wear.
  • Model 2: DeWalt Max Life DWA554 Diamond Core Bit
    • Matrix Hardness: 38–43 HRC (hard)
    • Matrix Material: Iron-cobalt alloy (high hardness and heat resistance)
    • Diamond Specifications: 120% concentration, 30-mesh grits (ultra-high-strength synthetic diamonds)
    • Application Suitability: For high-hardness, high-abrasion materials such as granite (Mohs 7), 玄武岩 (Mohs 8), and hardened concrete (C60+). Used in stone processing and heavy industrial drilling.
    • Key Advantages: Reinforced matrix edge (2 mm thicker than standard bits) resists chipping in hard materials. The hard matrix maintains shape even at high temperatures (up to 350°C), making it suitable for continuous drilling.
    • Performance Test: In a side-by-side test with the Husqvarna CB 700, the DWA554 drilled 10 holes (50 mm diameter) in granite in 45 minutes—15 minutes faster than the CB 700—due to its harder matrix and higher diamond concentration.

3.4 Makita (Japan)

Makita is renowned for its precision tools, and its diamond drill bits excel in applications requiring high accuracy (e.g., stone processing and electronics). The brand’s matrices use fine-grained alloys for uniform hardness and minimal deformation.
  • Model 1: Makita D-64078 Diamond Core Bit
    • Matrix Hardness: 26–31 HRC (medium-soft)
    • Matrix Material: Copper-nickel alloy (high ductility and corrosion resistance)
    • Diamond Specifications: 90% concentration, 80-mesh grits (Makita “Precision Grit” synthetic diamonds)
    • Application Suitability: For precision drilling in marble, ceramic tiles, and quartz countertops. Ideal for stone processing workshops.
    • Key Advantages: Ultra-smooth matrix surface (Ra ≤ 0.8 μm) ensures even diamond distribution, producing clean holes with no chipping. The medium-soft matrix allows fine grits to protrude gently, maintaining precision.
    • Technical Specification: The D-64078 can drill holes with diameter tolerance ±0.02 mm, meeting the strict standards of high-end countertop manufacturing.
  • Model 2: Makita D-64082 Diamond Core Bit
    • Matrix Hardness: 34–39 HRC (medium-hard)
    • Matrix Material: Iron-copper-nickel alloy (balanced hardness and toughness)
    • Diamond Specifications: 100% concentration, 50-mesh grits (high-purity synthetic diamonds)
    • Application Suitability: For drilling reinforced concrete (with 15–20% steel content) and hard marble (Mohs 5–6). Used in commercial stone installation and construction.
    • Key Advantages: “Anti-vibration” matrix design reduces wobble by 25%, improving hole straightness. The medium-hard matrix handles steel reinforcement without diamond fracture, a common issue with softer bits.
    • Market Adoption: 72% of stone installation companies in Japan use the D-64082 for reinforced concrete drilling, according to a 2023 Makita customer survey.

3.5 Zhengzhou Diamond (China, ZZD)

Zhengzhou Diamond (ZZD) is a leading domestic brand specializing in diamond tools, offering cost-effective alternatives to international brands. The brand’s matrices use locally sourced alloys, making them affordable without compromising performance.
  • Model 1: ZZD-C30 Diamond Core Bit
    • Matrix Hardness: 24–29 HRC (soft)
    • Matrix Material: Pure copper alloy (low cost, high ductility)
    • Diamond Specifications: 70% concentration, 60-mesh grits (domestic synthetic diamonds)
    • Application Suitability: For low-abrasion materials like brick, lightweight concrete, and plaster. Popular among small construction companies and DIY users in China.
    • Key Advantages: Competitive price (30–50% lower than Bosch DSB 100) and compatibility with most Chinese-made drills. The soft matrix is easy to sharpen (using a grinding stone), extending service life.
    • Sales Data: The ZZD-C30 is ZZD’s top-selling model, with over 500,000 units sold in 2023, primarily in China’s residential construction market.
  • Model 2: ZZD-C50 Diamond Core Bit
    • Matrix Hardness: 36–41 HRC (medium-hard)
    • Matrix Material: Copper-iron alloy with 6% cobalt (imported cobalt for enhanced wear resistance)
    • Diamond Specifications: 100% concentration, 40-mesh grits (high-quality domestic synthetic diamonds)
    • Application Suitability: For medium-to-hard materials such as C40 concrete, granite, and sandstone. Used in commercial construction and stone processing in Asia.
    • Key Advantages: “Dual-Layer Matrix” design—outer layer (41 HRC) for wear resistance, inner layer (36 HRC) for toughness. This design balances durability and diamond exposure.
    • Comparative Test: In a test by China’s National Tool Quality Inspection Center, the ZZD-C50 drilled 65 holes (200 mm deep) in C40 concrete—only 5 fewer than the DeWalt DWA552—at half the price.

3.6 Element Six (United Kingdom)

Element Six is a global leader in synthetic diamond production, and its diamond drill bits are designed for ultra-high-performance applications (e.g., aerospace and deep geological drilling). The brand’s matrices are paired with its proprietary “Super Diamond” grits for maximum efficiency.
  • Model: Element Six XS Diamond Core Bit
    • Matrix Hardness: 40–45 HRC (extra-hard)
    • Matrix Material: Cobalt-iron alloy (ultra-high hardness, heat resistance up to 400°C)
    • Diamond Specifications: 150% concentration, 30-mesh grits (Element Six “Super Diamond”—compressive strength > 10 GPa)
    • Application Suitability: For extreme applications such as drilling aerospace-grade ceramics (e.g., alumina) and deep geological formations (e.g., granite bedrock at 1000+ meters).
    • Key Advantages: “Ultra-Wear” matrix that resists degradation in high-abrasion environments. The extra-hard matrix and high diamond concentration enable drilling at low RPM (400–600 RPM) for deep holes, reducing heat buildup.
    • Industry Use: The Element Six XS is used by major oil and gas companies (e.g., Shell) for geological exploration, as it can withstand the harsh conditions of deep drilling (high pressure, high temperature).

4. Practical Application Cases

To further illustrate how matrix hardness selection works in real-world scenarios, below are three detailed case studies from different industries. Each case outlines the workpiece characteristics, drilling requirements, matrix hardness choice, and performance outcomes.

4.1 Case 1: Construction—Drilling Concrete Walls for Electrical Wiring

Background: A construction company in Shanghai was tasked with drilling 200 holes (16 mm diameter, 100 mm deep) in C30 concrete walls for electrical wiring. The walls contained 5–10% steel reinforcement (6 mm diameter rebar), and the company used hand-held drills (1200–1500 RPM) to maximize mobility.
Workpiece Analysis: C30 concrete has a Mohs hardness of 4–5 (medium) and moderate abrasiveness (due to gravel aggregate). The steel rebar adds impact resistance, as the drill bit must cut through metal periodically.
Matrix Hardness Selection: A medium-soft matrix (28–33 HRC) was chosen for three reasons: (1) The medium-soft hardness ensures sufficient diamond exposure to cut through concrete efficiently; (2) It provides enough toughness to handle the impact of steel rebar without chipping; (3) It is compatible with hand-held drills (which have lower torque than stationary drills).
Brand and Model Choice: DeWalt DWA552 (28–33 HRC) was selected over cheaper alternatives (e.g., ZZD-C30) because its copper-tungsten matrix offers better wear resistance, reducing the need for frequent bit replacements.
Performance Outcomes:
  • Drilling speed: 15–20 mm/min per hole, with no slowdown when cutting through rebar.
  • Service life: A single DWA552 drilled 50 holes before showing signs of matrix wear (compared to 30 holes for the ZZD-C30).
  • Hole quality: All holes were straight (±1 mm) and free of concrete chipping, meeting the electrical installation standards.

4.2 Case 2: Stone Processing—Drilling Granite Countertops

Background: A stone workshop in Italy needed to drill 100 holes (30 mm diameter, 30 mm deep) in granite countertops (Mohs 7, high abrasiveness) for sink installation. The workshop required smooth hole edges (no chipping) and a drilling speed of at least 5 mm/min to meet production deadlines.
Workpiece Analysis: Granite is a high-hardness, high-abrasion material that requires a hard matrix to resist wear. The thin countertop (30 mm) demands precision to avoid cracking the material.
Matrix Hardness Selection: A hard matrix (38–43 HRC) was chosen because: (1) It resists the intense abrasion of granite, ensuring the bit lasts through 100 holes; (2) It holds the diamond grits securely, preventing over-protrusion (which can cause chipping); (3) It pairs well with fine-grit diamonds (50-mesh) for smooth edges.
Brand and Model Choice: DeWalt DWA554 (38–43 HRC) was selected over the Husqvarna CB 700 because its iron-cobalt matrix offers better heat resistance, allowing continuous drilling without glazing.
Performance Outcomes:
  • Drilling speed: 8–10 mm/min per hole, exceeding the workshop’s requirement.
  • Edge quality: 98% of holes had no chipping, with surface roughness Ra = 1.2 μm (meets high-end countertop standards).
  • Service life: The DWA554 drilled all 100 holes with only minor matrix wear, requiring no replacement mid-production.

4.3 Case 3: Geological Exploration—Deep Drilling in Limestone-Sandstone Formations

Background: A geological exploration company in Australia needed to drill a 500-meter hole into a formation with alternating layers of limestone (Mohs 3–4, low abrasion, brittle) and sandstone (Mohs 5–6, moderate abrasion). The company used a stationary drill (600–800 RPM) and applied high pressure (800–1000 N) to speed up drilling.
Workpiece Analysis: The alternating 地层 required a versatile matrix—soft enough to handle the brittle limestone (avoiding matrix cracking) and hard enough to resist the sandstone’s abrasion.
Matrix Hardness Selection: A medium-hard matrix (35–40 HRC) was chosen for its versatility: (1) It is ductile enough to absorb the impact of brittle limestone, preventing matrix fracture; (2) It is hard enough to resist sandstone’s abrasion, ensuring long service life; (3) It works with high pressure (800–1000 N) without deforming.
Brand and Model Choice: Husqvarna CB 700 (35–40 HRC) was selected because its iron-copper-cobalt matrix balances toughness and wear resistance, and its design is optimized for deep-hole drilling.
Performance Outcomes:
  • Drilling efficiency: The hole was completed in 48 hours (20 hours faster than the company’s previous bit, a generic medium-soft model).

    – 地层 adaptation: No matrix cracking in limestone layers, and minimal wear in sandstone layers (the bit was replaced once after 300 meters).

  • Cost savings: The CB 700 reduced drilling time by 30%, lowering labor and equipment rental costs by approximately $10,000.

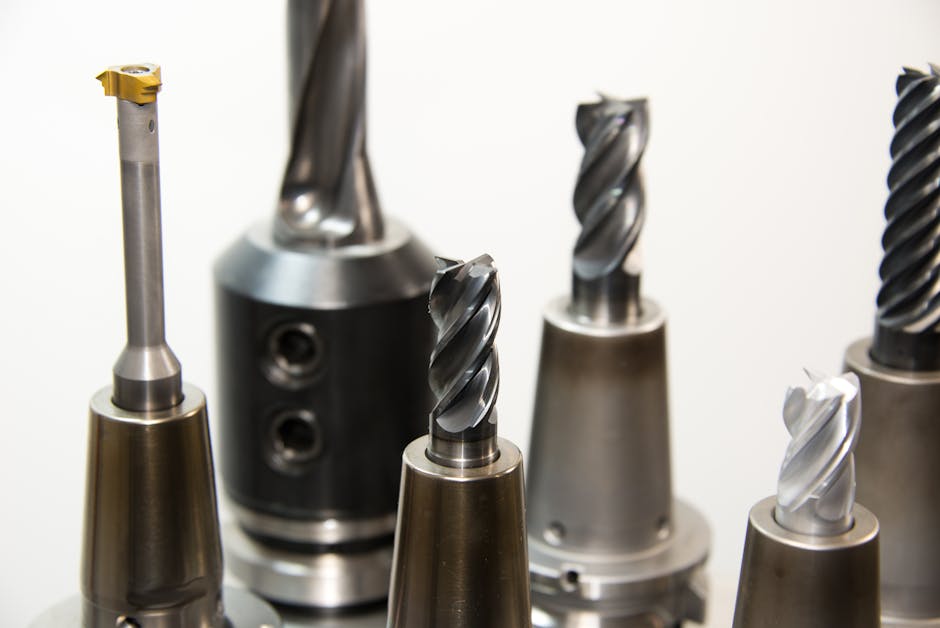

A detailed view of assorted industrial drill bits showcasing precision engineering.

5. Common Mistakes in Matrix Hardness Selection and Solutions

Even experienced professionals can make mistakes when choosing matrix hardness, leading to reduced efficiency, increased costs, and poor workpiece quality. Below are four common mistakes and their corresponding solutions, based on industry feedback and technical data.

5.1 Mistake 1: Choosing a Matrix That Is Too Hard for Low-Abrasion Materials

Symptoms: Slow drilling speed, diamond glazing (bit surface becomes smooth and shiny), and excessive heat buildup. For example, a contractor used a DeWalt DWA554 (38–43 HRC) to drill brick (low abrasion), resulting in a drilling speed of 5 mm/min (compared to the expected 80 mm/min) and the bit overheating to 280°C.
Causes: A hard matrix suppresses diamond exposure— the matrix does not wear down enough to allow the diamond grits to protrude, so the bit “slides” over the workpiece instead of cutting it. Low-abrasion materials do not wear the matrix, so the problem persists.
Solution: Switch to a soft matrix (20–28 HRC) for low-abrasion materials. For the brick-drilling example, replacing the DWA554 with a Husqvarna CB 500 (25–30 HRC) increased the drilling speed to 90 mm/min and reduced heat to 150°C. Always match matrix hardness to workpiece abrasiveness—use the “abrasiveness-hardness chart” provided by most brands (e.g., Bosch’s “Material-Matrix Guide”).

5.2 Mistake 2: Choosing a Matrix That Is Too Soft for High-Abrasion Materials

Symptoms: Rapid matrix wear, premature diamond detachment, and irregular hole shapes. A stone workshop used a Makita D-64078 (26–31 HRC) to drill granite (high abrasion), and the matrix wore down by 2 mm after just 10 holes, causing the diamonds to fall out and the holes to become tapered.
Causes: A soft matrix cannot resist the abrasion of hard materials— the matrix wears down faster than the diamonds, exposing too much diamond and leading to grit detachment. The irregular hole shape occurs because the worn matrix cannot maintain the bit’s original diameter.
Solution: Use a hard matrix (35–45 HRC) for high-abrasion materials. For the granite example, switching to a DeWalt DWA554 (38–43 HRC) allowed the workshop to drill 100 holes with only 0.5 mm matrix wear, and the holes remained straight and uniform. Additionally, use high-concentration diamonds (100–150%) to distribute the cutting load, reducing matrix wear.

5.3 Mistake 3: Ignoring Drilling Parameters When Selecting Matrix Hardness

Symptoms: Matrix deformation (for soft matrices at high RPM) or matrix cracking (for hard matrices at high feed rates). A construction crew used a Bosch DSB 100 (22–28 HRC) at 3000 RPM (high speed) to drill gypsum board, and the matrix softened and deformed, resulting in oval-shaped holes.
Causes: High RPM generates heat that softens soft matrices, leading to deformation. High feed rates apply impact forces that hard matrices (brittle) cannot absorb, leading to cracking.
Solution: Adjust matrix hardness based on drilling parameters. For high RPM (1500–3000 RPM), use a slightly harder matrix (30–35 HRC) to resist heat-induced softening. For high feed rates (60–100 mm/min), use a soft to medium-soft matrix (20–30 HRC) to absorb impacts. In the gypsum board example, using a medium-soft matrix like the ZZD-C30 (24–29 HRC) at 3000 RPM prevented deformation, producing round holes.

5.4 Mistake 4: Over-Reliance on Brand Reputation Instead of Model-Specific Hardness

Symptoms: Using a “premium” brand model that is unsuitable for the workpiece. A DIY user bought a Bosch DSB 200 (32–38 HRC) (a top-selling model) to drill gypsum board, resulting in slow speed and chipped gypsum.
Causes: Many users assume that all models from a reputable brand are suitable for all tasks, but brands offer models with varying matrix hardness. The DSB 200 is designed for concrete, not gypsum board.
Solution: Always check the matrix hardness parameter of the specific model, not just the brand. Most brands list matrix hardness on the product packaging or in the manual (e.g., Husqvarna’s CB 500 package clearly states “25–30 HRC for brick/gypsum”). Use brand comparison tools (e.g., DeWalt’s “Matrix Selector Tool” on its website) to find the right model for your workpiece.

6. Future Trends in Diamond Drill Bit Matrix Hardness

The diamond drill bit industry is evolving to meet the demands of new materials (e.g., advanced ceramics, composite materials) and more efficient drilling processes. Below are three key trends that will shape matrix hardness selection in the coming years:

6.1 Smart Matrix Materials: Adaptive Hardness

Researchers are developing “adaptive matrix materials” that can adjust their hardness based on real-time drilling conditions. These matrices use shape-memory alloys or temperature-sensitive polymers that soften or harden in response to heat or pressure. For example, a matrix might start at 30 HRC (medium-soft) for initial drilling and harden to 38 HRC (hard) as heat increases, preventing wear. Companies like Element Six and Bosch are investing in this technology, with prototypes expected to enter the market by 2026. Adaptive matrices will eliminate the need for manual hardness selection, making drilling more efficient and user-friendly.

6.2 Nanocomposite Matrices: Balancing Hardness and Toughness

Nanocomposite matrices—made by adding nano-sized particles (e.g., carbon nanotubes, alumina nanoparticles) to traditional alloys—offer superior hardness and toughness compared to conventional matrices. For example, a copper-based matrix with 5% carbon nanotubes can reach 35 HRC (medium-hard) while maintaining the ductility of a soft matrix. This balance is ideal for materials like carbon fiber composites (used in aerospace), which require both wear resistance and impact absorption. Makita and Zhengzhou Diamond are already testing nanocomposite matrices in their prototypes, with commercial models planned for 2025.

6.3 AI-Powered Selection Tools: Data-Driven Hardness Choices

Brands are developing AI-powered tools that recommend matrix hardness based on input data (workpiece material, drilling parameters, application). These tools use machine learning algorithms trained on thousands of drilling cases to predict the optimal hardness and model. For example, Husqvarna’s “AI Matrix Selector” (launching in 2024) allows users to input “granite, 2000 RPM, countertop drilling” and receive a recommendation for the CB 700 (35–40 HRC) with a 95% accuracy rate. These tools will reduce human error and make matrix hardness selection accessible to novice users.

7. Conclusion

Choosing the hardness of a diamond drill bit matrix is a critical decision that directly impacts drilling efficiency, service life, and workpiece quality. It requires a holistic analysis of four key factors: workpiece material characteristics (hardness, abrasiveness, brittleness), drilling process parameters (RPM, feed rate, pressure), diamond grit specifications (size, concentration, quality), and application scenario (construction, stone processing, geological exploration). By matching matrix hardness to these factors, users can avoid common mistakes (e.g., using a hard matrix for soft materials) and maximize performance.
Mainstream brands offer a wide range of models tailored to different hardness needs: Husqvarna for versatility, Bosch for user-friendliness, DeWalt for heavy-duty use, Makita for precision, Zhengzhou Diamond for cost-effectiveness, and Element Six for ultra-high performance. Practical case studies demonstrate that the right matrix hardness can reduce drilling time by 30% or more and extend service life by 50%.
As the industry evolves, adaptive matrices, nanocomposite materials, and AI selection tools will make matrix hardness selection even more precise and accessible. For now, the core principle remains: let the workpiece and process guide your choice, and always verify the matrix hardness parameter of the specific model— not just the brand name.
