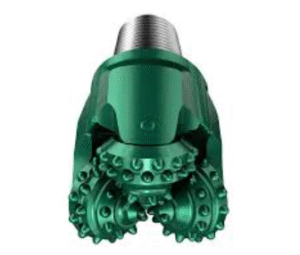

Specifications and models of roller drill bits?

1. Key Classification Criteria for Roller Drill Bits

• By Bearing Type: This is one of the most critical classification standards, as the bearing directly affects the bit’s service life and rotational stability. The main types include:
  1. Tapered Roller Bearings: Widely used in medium to heavy-duty drilling operations, these bearings can withstand both radial and axial loads, making them suitable for high-pressure drilling scenarios (e.g., deep mining or oil well drilling). They feature a conical inner ring, outer ring, and rolling elements, which distribute loads evenly to reduce wear.
  2. Ball Bearings: Characterized by low friction and high rotational speed, ball bearings are ideal for light to medium-duty drilling in soft to medium-hard formations (e.g., construction site foundation drilling). They are simpler in structure than tapered roller bearings and offer lower maintenance costs but have limited load-bearing capacity compared to the latter.
  3. Needle Roller Bearings: Designed with long, thin rolling elements (needles), these bearings have a high load-carrying capacity relative to their size, making them suitable for compact roller drill bits used in narrow drilling spaces (e.g., tunnel construction or geothermal drilling). They excel in withstanding radial loads but have lower axial load resistance.
• By Cutting Structure: The cutting structure determines how the bit interacts with the formation, directly impacting drilling speed and tooth wear. Common types include:
  1. Milled Tooth (Steel Tooth) Bits: The cutting teeth are milled directly from the bit body (typically high-strength alloy steel), making them cost-effective and easy to manufacture. They are suitable for soft to medium-hard formations (e.g., clay, shale, and soft limestone) but have lower wear resistance in abrasive formations.
  2. Insert Tooth Bits: The cutting teeth are made of hard materials (e.g., tungsten carbide, polycrystalline diamond compact (PDC)) and are inserted into the bit body through welding or press-fitting. These bits offer superior wear resistance and impact resistance, making them ideal for hard, abrasive formations (e.g., granite, quartzite, and hard sandstone). Insert tooth bits are further divided into spherical inserts, conical inserts, and wedge-shaped inserts, each optimized for different rock-breaking mechanisms.
• By Application Industry: Roller drill bits are customized to meet the unique demands of different industries:
  1. Mining Roller Drill Bits: Designed for large-scale open-pit or underground mining operations, these bits typically have larger diameters (8-24 inches) and high torque capacity to drill blast holes in hard rock formations. They prioritize durability and resistance to impact, as mining drilling often involves high drill pressure and frequent contact with uneven rock surfaces.
  2. Construction Roller Drill Bits: Used in infrastructure projects such as road construction, bridge foundation drilling, and building piling, these bits range in diameter from 2-16 inches and are optimized for medium-hard formations (e.g., gravel, sandstone, and weathered rock). They focus on drilling speed and stability to meet tight construction schedules.
  3. Oil and Gas Roller Drill Bits: Specifically engineered for upstream oil and gas exploration and production, these bits are designed to withstand extreme conditions (high temperature, high pressure, and corrosive fluids) in deep wells (up to 10,000 meters or more). They often feature advanced sealing technologies to prevent fluid intrusion into the bearing and are made of corrosion-resistant materials (e.g., stainless steel alloys).
  4. Geotechnical and Exploration Roller Drill Bits: Used in geological surveys, mineral exploration, and environmental sampling, these bits have smaller diameters (1-6 inches) and high precision to ensure accurate core sampling. They are lightweight and compatible with portable drilling rigs, making them suitable for remote exploration sites.

2. Specifications and Models of Roller Drill Bits from Top Global Brands

2.1 Atlas Copco (Sweden) – A Leader in Mining and Construction Drilling Solutions

2.1.1 Atlas Copco RD Series – Mining-Grade Roller Drill Bits for Hard Rock Formations

• Model: RD 310
  • Specifications:
    • Diameter: 10 inches (254 mm) – suitable for drilling blast holes with a final diameter of 10-10.5 inches
    • Speed Range: 80-120 RPM (optimized for high-torque mining rigs)
    • Torque Capacity: 1,800-2,200 N·m – ensures stable rotation even under high drill pressure
    • Drill Pressure Range: 180-250 kN – compatible with heavy-duty mining rigs (e.g., Atlas Copco Pit Viper 270)
    • Bearing Type: Tapered roller bearings (double-row design) with advanced grease sealing system to prevent contamination
    • Cutting Tooth Material: Tungsten carbide inserts (WC-Co alloy with 10-12% cobalt content for high toughness)
    • Tooth Design: Spherical inserts (12 mm diameter) arranged in a 3-row pattern to ensure uniform rock breaking and reduce tooth wear
    • Maximum Drilling Depth: Up to 30 meters (when used with 3-inch drill pipes)
    • Weight: 185 kg – provides sufficient downward force for efficient rock penetration
    • Compatibility: Designed for Atlas Copco Pit Viper 230, Pit Viper 270, and other mining rigs with a 4.5-inch drill rod connection
  • Technical Features: The RD 310 incorporates Atlas Copco’s proprietary “Hard Rock Optimization” (HRO) technology, which optimizes the tooth spacing and angle to minimize energy loss during drilling. The double-row tapered roller bearings are preloaded at the factory to ensure consistent performance throughout the bit’s service life, and the grease sealing system uses a 双唇 seal with a dust excluder to prevent rock particles and drilling fluid from entering the bearing cavity—this design extends the bearing life by up to 30% compared to standard seals.
  • Application Cases: The RD 310 is widely used in iron ore mines in Western Australia (e.g., Rio Tinto’s Pilbara iron ore operations) and copper mines in Chile (e.g., BHP’s Escondida mine). In a 2023 case study at the Pilbara site, the RD 310 achieved an average bit life of 850 meters per bit, which was 20% higher than competing models, and reduced drilling time per blast hole by 15%, leading to a 12% reduction in overall mining costs for Rio Tinto.
• Model: RD 415
  • Specifications:
    • Diameter: 15 inches (381 mm) – designed for large blast holes in open-pit mines (final diameter 15-15.5 inches)
    • Speed Range: 60-90 RPM – lower speed to handle high torque in hard formations
    • Torque Capacity: 2,800-3,500 N·m – suitable for ultra-heavy-duty drilling operations
    • Drill Pressure Range: 280-350 kN – requires high-powered mining rigs (e.g., Atlas Copco Pit Viper 351)
    • Bearing Type: Tapered roller bearings (triple-row design) with a pressure-compensated sealing system
    • Cutting Tooth Material: Tungsten carbide inserts (16 mm diameter, WC-Co alloy with 15% cobalt content for enhanced impact resistance)
    • Tooth Design: Conical inserts arranged in a 4-row pattern – conical shape improves penetration in hard rock by focusing pressure on a smaller contact area
    • Maximum Drilling Depth: Up to 45 meters (when used with 4-inch drill pipes)
    • Weight: 320 kg – provides high downward force for deep-hole drilling
    • Compatibility: Atlas Copco Pit Viper 351, Pit Viper 451, and Caterpillar MD6250 mining rigs
  • Technical Features: The RD 415 features a “Deep Hole Stability” (DHS) design, which includes a reinforced bit body with a thicker wall (25 mm vs. 20 mm in standard models) to prevent bending or deformation during deep drilling. The triple-row tapered roller bearings distribute loads across a larger surface area, reducing stress on individual components and extending bearing life by up to 40%. Additionally, the pressure-compensated sealing system maintains a constant pressure inside the bearing cavity, even as the drill depth increases (and external pressure rises), preventing fluid intrusion and ensuring consistent lubrication.
  • Application Cases: In 2024, the RD 415 was deployed at the Grasberg gold-copper mine in Indonesia (operated by Freeport-McMoRan), where it was used to drill 45-meter-deep blast holes in hard granite formations. The bit achieved an average service life of 720 meters per bit, which was 25% higher than the previous model used at the site, and reduced the number of bit changes per shift from 3 to 2—this improvement increased daily drilling productivity by 18% and lowered maintenance costs by 14%.

2.1.2 Atlas Copco CD Series – Construction-Grade Roller Drill Bits for Medium-Hard Formations

• Model: CD 208
  • Specifications:
    • Diameter: 8 inches (203 mm) – suitable for foundation drilling and piling (final diameter 8-8.5 inches)
    • Speed Range: 120-180 RPM – higher speed for faster drilling in medium-hard formations
    • Torque Capacity: 800-1,200 N·m – compatible with medium-duty construction rigs
    • Drill Pressure Range: 80-120 kN – lower pressure than mining models, suitable for construction equipment
    • Bearing Type: Ball bearings (double-row design) with rubber seals for dust and moisture protection
    • Cutting Tooth Material: Tungsten carbide inserts (10 mm diameter, WC-Co alloy with 8% cobalt content)
    • Tooth Design: Wedge-shaped inserts arranged in a 2-row pattern – wedge shape is effective for breaking layered rocks (e.g., sandstone) by creating shear forces
    • Maximum Drilling Depth: Up to 15 meters (when used with 2.5-inch drill pipes)
    • Weight: 75 kg – lightweight for easy handling and installation on construction rigs
    • Compatibility: Atlas Copco ROC D7, ROC D9, and Bobcat E165 construction rigs
  • Technical Features: The CD 208 incorporates a “Fast Penetration” (FP) design, which optimizes the tooth angle (30 degrees from the bit axis) to reduce the force required for penetration, thereby increasing drilling speed by up to 25% compared to standard construction bits. The double-row ball bearings have a low-friction design, which allows for higher rotational speeds without overheating, and the rubber seals are resistant to oil and water, making the bit suitable for wet drilling conditions (e.g., foundation drilling in rainy environments).
  • Application Cases: The CD 208 was used in the construction of the new highway between Mumbai and Ahmedabad (India) in 2023, where it was tasked with drilling foundation holes for bridge piers in gravel and sandstone formations. The bit achieved an average drilling speed of 1.2 meters per minute, which was 20% faster than the local brand bits previously used, and completed 120 foundation holes per week (compared to 95 holes with the old bits). This improvement helped the project meet its deadline three weeks ahead of schedule, reducing labor and equipment rental costs by 10%.
• Model: CD 312
  • Specifications:
    • Diameter: 12 inches (305 mm) – designed for large-diameter foundation drilling (e.g., bridge abutments, high-rise building piles)
    • Speed Range: 90-150 RPM – balanced speed for drilling in mixed formations (gravel + sandstone)
    • Torque Capacity: 1,500-2,000 N·m – higher torque to handle variable formation hardness
    • Drill Pressure Range: 150-200 kN – suitable for heavy-duty construction rigs
    • Bearing Type: Needle roller bearings (single-row) with a labyrinth seal system
    • Cutting Tooth Material: Tungsten carbide inserts (14 mm diameter, WC-Co alloy with 10% cobalt content)
    • Tooth Design: Combination of spherical and conical inserts (3-row pattern) – spherical inserts for soft sections, conical inserts for hard sections
    • Maximum Drilling Depth: Up to 25 meters (when used with 3-inch drill pipes)
    • Weight: 140 kg – provides sufficient stability for large-diameter drilling
    • Compatibility: Atlas Copco ROC L8, Caterpillar 336D, and Komatsu PC360 construction rigs
  • Technical Features: The CD 312’s “Mixed Formation Adaptation” (MFA) technology allows it to switch seamlessly between soft and hard sections of the formation, thanks to the combination of spherical and conical inserts. The needle roller bearings offer a high load-carrying capacity in a compact design, which is essential for large-diameter bits where space is limited. The labyrinth seal system uses multiple grooves to trap dust and debris, preventing them from reaching the bearing—this design is particularly effective in dry drilling conditions (e.g., road construction in arid regions) and extends seal life by up to 50%.
  • Application Cases: In 2024, the CD 312 was used in the construction of the new Dubai Creek Tower (United Arab Emirates), where it drilled 25-meter-deep foundation holes in mixed formations (sand, gravel, and weathered limestone). The bit maintained a consistent drilling speed of 0.9 meters per minute across all formations, compared to competing bits that slowed to 0.5 meters per minute in limestone sections. Over the course of the project, the CD 312 reduced the number of bit replacements by 30%, saving the contractor approximately $120,000 in equipment costs.

2.2 Boart Longyear (United States) – Specialized in Exploration and Mining Drilling

2.2.1 Boart Longyear XL Series – Exploration-Grade Roller Drill Bits for Core Sampling

• Model: XL 106
  • Specifications:
    • Diameter: 2.5 inches (63.5 mm) – ideal for core sampling in mineral exploration (core diameter 1.5 inches)
    • Speed Range: 200-300 RPM – high speed for efficient drilling in soft to medium-hard formations (e.g., clay, shale, soft limestone)
    • Torque Capacity: 200-350 N·m – low torque, compatible with portable exploration rigs
    • Drill Pressure Range: 30-50 kN – lightweight pressure requirements, suitable for manual or semi-automatic rigs
    • Bearing Type: Ball bearings (single-row) with a rubber O-ring seal
    • Cutting Tooth Material: High-speed steel (HSS) with a tungsten carbide coating – HSS provides flexibility, while the coating enhances wear resistance
    • Tooth Design: Milled teeth (6 teeth per row, 2 rows) – milled design is cost-effective for small-diameter bits and easy to sharpen
    • Maximum Drilling Depth: Up to 100 meters (when used with 1.25-inch drill rods) – suitable for deep exploration holes
    • Weight: 8 kg – lightweight for easy transportation and installation in remote areas
    • Compatibility: Boart Longyear LF90, LF130, and Schramm T64 exploration rigs
  • Technical Features: The XL 106 features a “Core Preservation” (CP) design, which includes a smooth inner bore (polished to a 0.8 μm finish) to prevent core damage during extraction—this is critical for mineral exploration, where core integrity directly affects sample analysis accuracy. The high-speed steel teeth with tungsten carbide coating balance durability and cost, as HSS teeth can be resharpened up to 3 times before replacement, reducing operational costs. The rubber O-ring seal is resistant to mineral oils and drilling fluids, ensuring reliable bearing performance in wet or dry conditions.
  • Application Cases: In 2023, the XL 106 was used by a Canadian mining company (Newmont Corporation) in its gold exploration project in the Yukon Territory, where it drilled 100-meter-deep core holes in shale and soft limestone formations. The bit achieved an average core recovery rate of 95%, which was 5% higher than the industry average, and each bit could drill 15-20 holes before needing resharpening—this reduced the number of bits transported to the remote site by 40%, lowering logistics costs by $15,000. The high-quality cores collected also allowed Newmont to accurately map the gold deposit, leading to a 10% increase in estimated reserves.
• Model: XL 210
  • Specifications:
    • Diameter: 4 inches (101.6 mm) – larger diameter for core sampling in hard rock exploration (core diameter 2.5 inches)
    • Speed Range: 150-250 RPM – moderate speed to balance penetration and core integrity
    • Torque Capacity: 500-700 N·m – higher torque for hard rock formations (e.g., granite, quartzite)
    • Drill Pressure Range: 70-100 kN – suitable for semi-heavy-duty exploration rigs
    • Bearing Type: Tapered roller bearings (single-row) with a mechanical face seal
    • Cutting Tooth Material: Tungsten carbide inserts (8 mm diameter, WC-Co alloy with 12% cobalt content)
    • Tooth Design: Conical inserts (8 inserts per row, 3 rows) – conical shape improves penetration in hard rock and reduces core damage
    • Maximum Drilling Depth: Up to 150 meters (when used with 2-inch drill rods)
    • Weight: 22 kg – still lightweight enough for remote transportation (can be carried by 2 people)
    • Compatibility: Boart Longyear LF160, LF200, and Atlas Copco ROC 306 exploration rigs
  • Technical Features: The XL 210 incorporates “Hard Rock Core Drilling” (HRCD) technology, which optimizes the insert angle (45 degrees from the bit axis) to create a clean, smooth core without fracturing—this is essential for hard rock exploration, where core fracturing can lead to sample loss. The single-row tapered roller bearings provide higher load capacity than ball bearings, ensuring stable rotation in hard formations, and the mechanical face seal uses two precision-ground metal faces to create a tight seal, preventing rock particles from entering the bearing even in dusty conditions. The bit body is made of heat-treated alloy steel (4340), which has a tensile strength of 1,200 MPa, ensuring durability in high-impact drilling scenarios.
  • Application Cases: In 2024, the XL 210 was deployed by BHP Billiton in its copper exploration project in the Andes Mountains (Peru), where it drilled 150-meter-deep core holes in hard granite formations. The bit achieved an average drilling speed of 0.4 meters per minute, which was 30% faster than competing exploration bits, and maintained a core recovery rate of 92%—a significant achievement in granite, where core fracturing is common. Each XL 210 bit could drill 8-10 holes before replacement, compared to 5-6 holes with other bits, reducing the number of bit changes by 40% and saving the project approximately $20,000 in equipment and labor costs.

2.2.2 Boart Longyear MT Series – Mining-Grade Roller Drill Bits for Underground Mining

• Model: MT 308
  • Specifications:
    • Diameter: 8 inches (203 mm) – suitable for underground blast holes (final diameter 8-8.5 inches)
    • Speed Range: 90-130 RPM – moderate speed for underground drilling (limited space prevents high-speed operation)
    • Torque Capacity: 1,200-1,600 N·m – compatible with underground mining rigs (e.g., Boart Longyear U6)
    • Drill Pressure Range: 120-180 kN – balanced pressure for underground formations (typically medium-hard rock)
    • Bearing Type: Needle roller bearings (double-row) with a 双唇 seal
    • Cutting Tooth Material: Tungsten carbide inserts (12 mm diameter, WC-Co alloy with 14% cobalt content for high impact resistance)
    • Tooth Design: Spherical inserts (10 inserts per row, 3 rows) – spherical shape absorbs impact, reducing tooth breakage in underground drilling
    • Maximum Drilling Depth: Up to 20 meters (underground tunnels rarely require deeper holes)
    • Weight: 95 kg – compact and lightweight for maneuvering in narrow tunnels (width 3-4 meters)
    • Compatibility: Boart Longyear U6, U8, and Atlas Copco ROC 104 underground mining rigs
  • Technical Features: The MT 308 features an “Underground Safety” (US) design, which includes a non-sparking bit body (coated with copper alloy) to prevent ignition of flammable gases (e.g., methane in coal mines)—this is a critical safety requirement for underground mining. The double-row needle roller bearings have a compact design, which reduces the bit’s overall diameter, making it easier to navigate through narrow tunnels. The 双唇 seal uses a nitrile rubber material that is resistant to oil and chemicals, ensuring reliable bearing performance in underground environments where drilling fluids may contain contaminants (e.g., coal dust, mineral particles).
  • Application Cases: The MT 308 was used in 2023 by China National Coal Group in its underground coal mine in Shanxi Province, China, where it drilled 20-meter-deep blast holes in medium-hard sandstone formations. The non-sparking design of the bit eliminated the risk of methane ignition, which had been a safety concern with previous bits. The bit achieved an average service life of 500 meters per bit, which was 25% higher than the previous model, and reduced the number of bit changes per shift from 4 to 3—this increased underground drilling productivity by 15% and lowered the risk of accidents (fewer bit changes mean fewer workers entering the drilling area).
• Model: MT 410
  • Specifications:
    • Diameter: 10 inches (254 mm) – larger diameter for underground blast holes in large tunnels (width 5-6 meters)
    • Speed Range: 70-110 RPM – lower speed to handle higher torque in hard underground formations (e.g., granite)
    • Torque Capacity: 1,800-2,300 N·m – higher torque for hard rock underground mining
    • Drill Pressure Range: 180-240 kN – suitable for heavy-duty underground rigs
    • Bearing Type: Tapered roller bearings (double-row) with a pressure-compensated seal
    • Cutting Tooth Material: Tungsten carbide inserts (14 mm diameter, WC-Co alloy with 16% cobalt content – highest impact resistance in the MT Series)
    • Tooth Design: Conical inserts (12 inserts per row, 4 rows) – conical shape improves penetration in hard underground rock
    • Maximum Drilling Depth: Up to 25 meters – for large underground tunnels (e.g., ore processing chambers)
    • Weight: 150 kg – still manageable with underground rig lifting systems
    • Compatibility: Boart Longyear U10, Caterpillar R1700, and Komatsu HD785 underground mining rigs
  • Technical Features: The MT 410 incorporates “Hard Rock Underground Drilling” (HRUD) technology, which includes a reinforced bit neck (thickness 30 mm) to withstand the high torque and impact forces in hard rock underground drilling—this prevents the bit from breaking at the connection point with the drill rod, a common failure mode in underground operations. The double-row tapered roller bearings are designed to withstand both radial and axial loads, ensuring stable rotation even when the drill rod is slightly misaligned (a common issue in underground tunnels with uneven walls). The pressure-compensated seal maintains a constant pressure inside the bearing cavity, even as the underground environment’s temperature and pressure fluctuate, preventing fluid leakage and ensuring consistent lubrication.
  • Application Cases: In 2024, the MT 410 was used by AngloGold Ashanti in its underground gold mine in South Africa (TauTona Mine), one of the deepest mines in the world (over 3,500 meters below the surface). The bit drilled 25-meter-deep blast holes in hard granite formations, achieving an average drilling speed of 0.6 meters per minute—this was 20% faster than the previous bit used at the site. The reinforced bit neck prevented any bit breakages, which had previously caused costly delays (each breakage required 4-6 hours to retrieve the broken bit). Over the course of six months, the MT 410 reduced downtime by 30% and increased gold production by 8%, generating an additional $2 million in revenue for AngloGold Ashanti.

2.3 Sandvik Mining and Rock Solutions (Sweden) – Innovations in Hard Rock Drilling

2.3.1 Sandvik SR Series – Surface Mining Roller Drill Bits with Diamond-Enhanced Inserts

• Model: SR 512
  • Specifications:
    • Diameter: 12 inches (305 mm) – suitable for surface blast holes (final diameter 12-12.5 inches)
    • Speed Range: 70-100 RPM – optimized for hard rock drilling (lower speed to prevent insert overheating)
    • Torque Capacity: 2,500-3,200 N·m – high torque for hard formation penetration
    • Drill Pressure Range: 250-320 kN – compatible with large surface mining rigs (e.g., Sandvik DR460i)
    • Bearing Type: Tapered roller bearings (triple-row) with a ceramic-coated inner ring
    • Cutting Tooth Material: Diamond-enhanced tungsten carbide inserts (16 mm diameter, WC-Co alloy with 12% cobalt content + 5% diamond particles)
    • Tooth Design: Pyramidal inserts arranged in a 5-row pattern – pyramidal shape focuses pressure on a small contact area, improving penetration in hard rock
    • Maximum Drilling Depth: Up to 40 meters (when used with 4-inch drill pipes)
    • Weight: 280 kg – provides high downward force for hard rock drilling
    • Compatibility: Sandvik DR460i, DR660i, and Caterpillar MD6310 surface mining rigs
  • Technical Features: The SR 512’s most notable feature is its diamond-enhanced inserts, which are manufactured using a proprietary “Diamond Fusion” (DF) process that bonds diamond particles to the tungsten carbide surface at the atomic level—this increases wear resistance by up to 50% compared to standard tungsten carbide inserts. The triple-row tapered roller bearings have a ceramic-coated inner ring, which reduces friction by 30% and improves heat resistance (ceramic can withstand temperatures up to 1,200°C, compared to 800°C for steel), extending bearing life in high-temperature drilling conditions (e.g., surface mining in desert regions). The bit body is made of Sandvik’s proprietary alloy steel (Sandvik 350), which has a yield strength of 900 MPa, ensuring durability in high-impact scenarios.
  • Application Cases: The SR 512 was deployed in 2023 at the Oyu Tolgoi copper-gold mine in Mongolia (operated by Rio Tinto and Turquoise Hill Resources), where it drilled 40-meter-deep blast holes in hard granite formations with high quartz content (abrasive and difficult to drill). The diamond-enhanced inserts allowed the bit to achieve an average service life of 950 meters per bit, which was 40% higher than competing models, and maintained a drilling speed of 0.7 meters per minute—this was 25% faster than the previous bit used at the site. Over the course of a year, the SR 512 reduced drilling costs by $1.2 million for the mine, primarily due to fewer bit replacements and increased productivity.
• Model: SR 616
  • Specifications:
    • Diameter: 16 inches (406.4 mm) – one of the largest surface mining roller drill bits, designed for ultra-large blast holes (e.g., in iron ore mines)
    • Speed Range: 50-80 RPM – very low speed to handle extreme torque in ultra-hard formations
    • Torque Capacity: 3,800-4,500 N·m – highest torque in Sandvik’s roller drill bit lineup
    • Drill Pressure Range: 350-420 kN – requires the most powerful surface mining rigs (e.g., Sandvik DR860i)
    • Bearing Type: Tapered roller bearings (quadruple-row) with a carbon-fiber reinforced seal
    • Cutting Tooth Material: Diamond-enhanced tungsten carbide inserts (20 mm diameter, WC-Co alloy with 15% cobalt content + 8% diamond particles)
    • Tooth Design: Octagonal inserts arranged in a 6-row pattern – octagonal shape provides multiple cutting edges, extending insert life as edges wear
    • Maximum Drilling Depth: Up to 50 meters (when used with 5-inch drill pipes)
    • Weight: 450 kg – requires rig-mounted lifting systems for installation
    • Compatibility: Sandvik DR860i, Caterpillar MD6560, and Komatsu PC1250 surface mining rigs
  • Technical Features: The SR 616 features Sandvik’s “Ultra-Hard Formation Optimization” (UHO) technology, which includes a variable tooth spacing design—teeth are closer together in the center of the bit (to handle high pressure) and spaced further apart at the edges (to reduce wear from abrasive rock). The quadruple-row tapered roller bearings are the most robust in the industry, with a load-carrying capacity 60% higher than triple-row bearings, ensuring stable rotation even under extreme drill pressure. The carbon-fiber reinforced seal is lightweight (20% lighter than steel seals) and highly durable, with a tensile strength of 3,000 MPa, making it resistant to tearing and deformation in harsh mining environments. Additionally, the bit is equipped with a “Wear Monitoring System” (WMS), which uses sensors embedded in the bit body to track insert wear and bearing temperature—this allows operators to replace the bit before it fails, reducing the risk of costly drill rod damage.
  • Application Cases: In 2024, the SR 616 was used at the Carajás iron ore mine in Brazil (operated by Vale S.A.), the largest iron ore mine in the world. The mine required ultra-large blast holes (16 inches in diameter) to extract high-grade iron ore from hard hematite formations. The SR 616 achieved an average service life of 880 meters per bit, which was 35% higher than the previous bit (a competitor’s 16-inch model), and maintained a drilling speed of 0.5 meters per minute—this was 20% faster than the old bit. The Wear Monitoring System allowed Vale to schedule bit replacements during planned maintenance breaks, eliminating unplanned downtime (which had previously cost the mine $50,000 per hour). Over six months, the SR 616 saved Vale approximately $800,000 in downtime costs and $600,000 in bit replacement costs.

2.3.2 Sandvik SC Series – Construction and Geotechnical Roller Drill Bits

• Model: SC 206
  • Specifications:
    • Diameter: 6 inches (152.4 mm) – suitable for small-diameter construction projects (e.g., fence post holes, small foundation piles)
    • Speed Range: 150-220 RPM – high speed for fast drilling in soft to medium-hard formations
    • Torque Capacity: 600-900 N·m – compatible with light-duty construction rigs
    • Drill Pressure Range: 60-100 kN – low pressure, suitable for portable construction equipment
    • Bearing Type: Ball bearings (single-row) with a silicone rubber seal
    • Cutting Tooth Material: Tungsten carbide inserts (8 mm diameter, WC-Co alloy with 8% cobalt content)
    • Tooth Design: Milled teeth with insert tips (hybrid design) – milled teeth for soft formations, insert tips for hard sections
    • Maximum Drilling Depth: Up to 12 meters (when used with 2-inch drill pipes)
    • Weight: 45 kg – lightweight for easy handling by small construction crews
    • Compatibility: Sandvik BR350, BR450, and Bobcat E105 construction rigs
  • Technical Features: The SC 206’s hybrid cutting design (milled teeth + insert tips) makes it highly versatile, allowing it to drill through mixed formations without requiring a bit change. The single-row ball bearings have a low-friction design, which enables high rotational speeds without overheating, and the silicone rubber seal is resistant to UV radiation and extreme temperatures (from -40°C to 120°C), making the bit suitable for outdoor construction projects in harsh climates (e.g., cold northern regions or hot desert areas). The bit body is made of low-alloy steel (A36), which is cost-effective and easy to repair—small cracks or dents can be welded without compromising structural integrity.
  • Application Cases: The SC 206 was used in 2023 by a small construction company in Alberta, Canada, for a rural road repair project, where it drilled 12-meter-deep holes for guardrail posts in mixed formations (sand, gravel, and soft clay). The hybrid cutting design allowed the bit to drill through all formations without slowing down, achieving an average speed of 1.5 meters per minute—this was 30% faster than the standard milled-tooth bits the company had used previously. Each SC 206 bit could drill 50-60 guardrail holes before replacement, compared to 30-35 holes with the old bits, reducing the number of bits purchased by 40% and saving the company $8,000 over the course of the project.
• Model: SC 310
  • Specifications:
    • Diameter: 10 inches (254 mm) – designed for medium-diameter construction projects (e.g., residential building foundations, small bridge piers)
    • Speed Range: 100-160 RPM – balanced speed for mixed formations (gravel + sandstone)
    • Torque Capacity: 1,300-1,800 N·m – higher torque for medium-hard formations
    • Drill Pressure Range: 130-180 kN – suitable for medium-duty construction rigs
    • Bearing Type: Needle roller bearings (single-row) with a labyrinth seal
    • Cutting Tooth Material: Tungsten carbide inserts (12 mm diameter, WC-Co alloy with 10% cobalt content)
    • Tooth Design: Spherical inserts arranged in a 3-row pattern – spherical shape reduces tooth wear in abrasive gravel formations
    • Maximum Drilling Depth: Up to 20 meters (when used with 3-inch drill pipes)
    • Weight: 110 kg – manageable with medium-duty rig lifting systems
    • Compatibility: Sandvik BR650, BR750, and Caterpillar 326D construction rigs
  • Technical Features: The SC 310 incorporates “Abrasive Formation Resistance” (AFR) technology, which includes a hard chrome plating on the bit body (thickness 50 μm) to reduce wear from abrasive gravel and sand—this extends the bit body’s life by up to 35% compared to unplated bits. The needle roller bearings offer a high load-carrying capacity in a compact design, which is essential for medium-diameter bits where space is limited, and the labyrinth seal system uses multiple plastic and metal components to trap dust and debris, ensuring reliable bearing performance in dry or dusty construction environments. The bit also features a “Quick-Change Connection” (QCC) system, which allows the bit to be attached to the drill rod in less than 2 minutes (compared to 5-7 minutes for standard connections), reducing downtime between holes.
  • Application Cases: In 2024, the SC 310 was used in the construction of a residential housing development in Phoenix, Arizona (United States), where it drilled 20-meter-deep foundation holes in gravel and sandstone formations. The hard chrome plating on the bit body prevented excessive wear from the abrasive gravel, allowing each bit to drill 30-35 foundation holes before replacement—this was 25% more than the previous bit used at the site. The Quick-Change Connection system reduced the time between holes by 60%, increasing the number of holes drilled per day from 15 to 22. Over the course of the 6-month project, the SC 310 saved the contractor approximately $35,000 in equipment and labor costs.

2.4 Schramm Inc. (United States) – Focus on Portable and Oilfield Drilling

2.4.1 Schramm O Series – Oilfield-Grade Roller Drill Bits for Onshore and Offshore Exploration

• Model: O 412
  • Specifications:
    • Diameter: 12 inches (305 mm) – suitable for oilfield pilot holes and intermediate casing holes
    • Speed Range: 60-90 RPM – optimized for oilfield drilling (high torque, low speed)
    • Torque Capacity: 3,000-3,800 N·m – high torque for drilling through oil-bearing formations (e.g., shale, limestone)
    • Drill Pressure Range: 300-380 kN – compatible with medium-duty oilfield rigs (e.g., Schramm T130)
    • Bearing Type: Tapered roller bearings (double-row) with a metal-to-metal seal
    • Cutting Tooth Material: Tungsten carbide inserts (18 mm diameter, WC-Co alloy with 15% cobalt content + corrosion-resistant nickel plating)
    • Tooth Design: Wedge-shaped inserts arranged in a 4-row pattern – wedge shape is effective for breaking shale formations, which are common in oilfields
    • Maximum Drilling Depth: Up to 3,000 meters – suitable for shallow to medium-depth oil wells
    • Weight: 350 kg – compatible with portable oilfield rigs (can be transported by truck)
    • Compatibility: Schramm T130, T160, and National Oilwell Varco (NOV) PACE 500 oilfield rigs
  • Technical Features: The O 412 features Schramm’s “Oilfield Corrosion Protection” (OCP) system, which includes a nickel-plated insert surface and a stainless steel bit body (316L) to resist corrosion from oilfield fluids (e.g., brine, drilling mud with high sulfur content). The metal-to-metal seal between the bearing and bit body creates a hermetic seal, preventing drilling fluid from entering the bearing cavity—this is critical for oilfield drilling, where fluid intrusion can lead to bearing failure in a matter of hours. The bit also incorporates a “High-Temperature Lubrication” (HTL) system, which uses a synthetic grease that remains stable at temperatures up to 250°C (common in deep oil wells), ensuring consistent bearing lubrication.
  • Application Cases: The O 412 was used in 2023 by ExxonMobil in its shale oil exploration project in the Permian Basin (Texas, United States), where it drilled 3,000-meter-deep intermediate casing holes in shale formations. The nickel-plated inserts and stainless steel bit body prevented corrosion from the brine-rich drilling mud, allowing each bit to drill 1,200-1,500 meters before replacement—this was 30% more than the previous bit used at the site. The High-Temperature Lubrication system maintained bearing performance even at 220°C, eliminating bearing failures which had previously caused 2-3 unplanned downtime events per well. Over the course of 10 wells, the O 412 saved ExxonMobil approximately $500,000 in downtime and bit replacement costs.
• Model: O 516
  • Specifications:
    • Diameter: 16 inches (406.4 mm) – designed for large-diameter oilfield surface holes (e.g., conductor casing holes)
    • Speed Range: 40-70 RPM – very low speed to handle extreme torque in oilfield surface formations (e.g., hard limestone)
    • Torque Capacity: 4,500-5,500 N·m – highest torque in Schramm’s oilfield roller drill bit lineup
    • Drill Pressure Range: 450-550 kN – requires heavy-duty oilfield rigs (e.g., Schramm T200)
    • Bearing Type: Tapered roller bearings (triple-row) with a pressure-balanced seal
    • Cutting Tooth Material: Tungsten carbide inserts (22 mm diameter, WC-Co alloy with 18% cobalt content + diamond-like carbon (DLC) coating)
    • Tooth Design: Conical inserts arranged in a 5-row pattern – conical shape improves penetration in hard oilfield surface formations
    • Maximum Drilling Depth: Up to 1,000 meters – surface holes are typically shallower than intermediate or production holes
    • Weight: 580 kg – requires rig-mounted cranes for installation
    • Compatibility: Schramm T200, T250, and NOV PACE 750 oilfield rigs
  • Technical Features: The O 516’s most advanced feature is its DLC-coated inserts—DLC is a super-hard material (hardness of 2,500 HV) that provides exceptional wear resistance and corrosion resistance, making it ideal for oilfield surface formations which are often hard and abrasive. The triple-row tapered roller bearings have a pressure-balanced seal, which adjusts to changes in well pressure (common in offshore drilling) to maintain a tight seal, preventing fluid intrusion. The bit body is made of duplex stainless steel (2205), which has both high strength (yield strength of 450 MPa) and excellent corrosion resistance, making it suitable for offshore oilfield drilling where saltwater exposure is constant. Additionally, the bit is equipped with a “Vibration Monitoring System” (VMS), which uses accelerometers to detect excessive vibration—this helps operators adjust drill pressure and speed to prevent bit damage, a common issue in hard oilfield surface formations.
  • Application Cases: In 2024, the O 516 was used by Chevron in its offshore oil exploration project in the Gulf of Mexico (United States), where it drilled 1,000-meter-deep conductor casing holes in hard limestone formations. The DLC-coated inserts allowed the bit to achieve an average service life of 800-1,000 meters per bit, which was 40% higher than competing offshore bits, and maintained a drilling speed of 0.4 meters per minute—this was 25% faster than the previous bit used at the site. The Vibration Monitoring System detected early signs of excessive vibration in three wells, allowing operators to adjust drill parameters and prevent bit failure—this eliminated three potential downtime events, each of which would have cost Chevron approximately $200,000 (due to offshore rig rental costs). Over the course of 8 offshore wells, the O 516 saved Chevron approximately $1.2 million in equipment and downtime costs.

2.4.2 Schramm G Series – Geothermal and Environmental Drilling Roller Drill Bits

• Model: G 308
  • Specifications:
    • Diameter: 8 inches (203 mm) – suitable for geothermal well pilot holes and environmental monitoring wells
    • Speed Range: 100-150 RPM – moderate speed for drilling in fractured geothermal formations
    • Torque Capacity: 1,500-2,000 N·m – compatible with portable geothermal rigs (e.g., Schramm T64)
    • Drill Pressure Range: 150-200 kN – balanced pressure for fractured formations (high pressure can cause further fracturing)
    • Bearing Type: Needle roller bearings (double-row) with a heat-resistant seal
    • Cutting Tooth Material: Tungsten carbide inserts (12 mm diameter, WC-Co alloy with 12% cobalt content + high-temperature ceramic coating)
    • Tooth Design: Spherical inserts arranged in a 3-row pattern – spherical shape reduces the risk of insert breakage in fractured formations
    • Maximum Drilling Depth: Up to 500 meters – typical depth for geothermal pilot holes and environmental wells
    • Weight: 105 kg – lightweight for transportation to remote geothermal sites (e.g., volcanic regions)
    • Compatibility: Schramm T64, T80, and Boart Longyear LF90 geothermal/environmental rigs
  • Technical Features: The G 308 features Schramm’s “Geothermal Heat Resistance” (GHR) technology, which includes a ceramic-coated insert surface that can withstand temperatures up to 350°C (common in geothermal wells) and a heat-resistant seal made of fluorocarbon rubber (Viton), which remains flexible at temperatures up to 200°C. The double-row needle roller bearings have a compact design, which reduces the bit’s overall diameter, making it easier to navigate through fractured formations where space is limited. The bit body is made of heat-treated alloy steel (4140), which retains its strength at high temperatures (tensile strength of 1,000 MPa at 300°C), ensuring durability in geothermal drilling. For environmental applications, the bit’s inner bore is polished to a smooth finish to prevent sample contamination—this is critical for groundwater monitoring, where even small amounts of bit material can skew sample results.
  • Application Cases: The G 308 was used in 2023 by a geothermal energy company in Iceland (Orka náttúrunnar) in its geothermal exploration project near the Reykjanes Peninsula, where it drilled 500-meter-deep pilot holes in fractured basalt formations (high temperature, up to 320°C). The ceramic-coated inserts and Viton seal maintained performance at high temperatures, allowing each bit to drill 300-350 meters before replacement—this was 35% more than the previous bit used at the site. The smooth inner bore prevented sample contamination, allowing the company to accurately measure the temperature and chemical composition of the geothermal fluid, which led to the identification of a new high-potential geothermal reservoir. Over the course of 12 pilot holes, the G 308 saved the company approximately $180,000 in equipment and sampling costs.
• Model: G 410
  • Specifications:
    • Diameter: 10 inches (254 mm) – designed for larger geothermal production wells and environmental remediation wells
    • Speed Range: 80-130 RPM – lower speed to handle higher torque in deeper geothermal formations
    • Torque Capacity: 2,200-2,800 N·m – higher torque for deep geothermal drilling
    • Drill Pressure Range: 200-260 kN – suitable for medium-duty geothermal rigs
    • Bearing Type: Tapered roller bearings (single-row) with a pressure-compensated, heat-resistant seal
    • Cutting Tooth Material: Tungsten carbide inserts (14 mm diameter, WC-Co alloy with 14% cobalt content + silicon carbide coating)
    • Tooth Design: Combination of spherical and conical inserts (4-row pattern) – spherical inserts for fractured sections, conical inserts for hard sections
    • Maximum Drilling Depth: Up to 1,000 meters – deep enough for small geothermal production wells
    • Weight: 160 kg – manageable with medium-duty geothermal rig lifting systems
    • Compatibility: Schramm T100, T120, and Atlas Copco ROC 306 geothermal rigs
  • Technical Features: The G 410 incorporates “Deep Geothermal Adaptation” (DGA) technology, which includes a reinforced bit neck (thickness 28 mm) to withstand the high torque and vibration in deep geothermal wells and a silicon carbide-coated insert surface that provides both high-temperature resistance (up to 400°C) and abrasion resistance (hardness of 2,800 HV). The pressure-compensated, heat-resistant seal adjusts to changes in well pressure and temperature, ensuring a tight seal even as conditions fluctuate—this is essential for deep geothermal wells where pressure and temperature increase with depth. The bit also features a “Fracture Avoidance” (FA) design, which optimizes the tooth angle to reduce the force applied to the formation, minimizing further fracturing (which can reduce the efficiency of geothermal production wells by allowing fluid to escape through new fractures).
  • Application Cases: In 2024, the G 410 was used by a U.S.-based environmental remediation company (AECOM) in a project to clean up a contaminated groundwater site in California, where it drilled 1,000-meter-deep remediation wells in fractured sandstone formations. The Fracture Avoidance design prevented further fracturing of the formation, ensuring that the remediation fluid (injected into the well) targeted the contaminated zone rather than escaping through new fractures. The silicon carbide-coated inserts allowed the bit to drill 450-500 meters per bit, which was 40% more than the previous bit used at the site, and the pressure-compensated seal maintained bearing performance even as the well temperature increased from 25°C to 180°C. Over the course of 8 remediation wells, the G 410 saved AECOM approximately $220,000 in equipment and project costs, and the project was completed two weeks ahead of schedule due to increased drilling efficiency.

3. Emerging Trends in Roller Drill Bit Technology and Future Developments

3.1 Advanced Material Science – Beyond Tungsten Carbide

• Diamond Nanocomposites: Companies like Sandvik and Boart Longyear are developing diamond nanocomposite inserts, which combine diamond nanoparticles with tungsten carbide to create a material with higher hardness (up to 3,500 HV) and toughness than traditional tungsten carbide. These inserts are expected to increase bit life by up to 50% in ultra-hard, abrasive formations (e.g., quartzite, granite).
• Ceramic-Metal Composites (Cermets): Cermets, which consist of ceramic particles (e.g., aluminum oxide) embedded in a metal matrix (e.g., nickel-chromium alloy), offer excellent heat resistance and corrosion resistance. Schramm and Atlas Copco are testing cermet inserts for geothermal and oilfield drilling, where high temperatures and corrosive fluids are common—early tests show that cermet inserts can withstand temperatures up to 500°C, which is 150°C higher than standard tungsten carbide inserts.
• Additive Manufacturing (3D Printing): Additive manufacturing is being used to produce complex bit body designs that are lightweight yet strong. For example, Sandvik has developed a 3D-printed roller drill bit body using titanium alloy, which is 30% lighter than traditional steel bodies while maintaining the same strength. This reduces the overall weight of the bit, making it easier to transport and install, and also allows for the integration of internal channels for lubrication and cooling, improving bearing performance.

3.2 Smart Roller Drill Bits – IoT and Data Analytics

• Embedded Sensors: Manufacturers are embedding sensors (temperature, pressure, vibration, and wear sensors) into roller drill bits to track key performance metrics. For example, Atlas Copco’s “Smart Bit” technology uses temperature sensors in the bearing cavity to monitor lubrication health and vibration sensors to detect excessive vibration (which can indicate formation changes or bit damage). The data from these sensors is transmitted wirelessly to a central control system, allowing operators to make real-time adjustments to drill parameters (speed, pressure) and schedule maintenance proactively.
• Machine Learning (ML) Algorithms: Companies like Boart Longyear and Schramm are developing ML algorithms that analyze data from smart bits to predict bit life and optimize drilling performance. These algorithms use historical data (bit life, drilling speed, formation type) to create models that can predict when a bit will need replacement (with an accuracy of up to 90%) and recommend the optimal drill parameters for a given formation. This reduces unplanned downtime and increases drilling efficiency by up to 20%.
• Cloud-Based Data Platforms: Manufacturers are launching cloud-based platforms that allow customers to access and analyze data from their roller drill bits remotely. For example, Sandvik’s “My Sandvik” platform provides real-time visibility into bit performance, maintenance schedules, and drilling costs, enabling customers to optimize their drilling operations across multiple sites. The platform also allows Sandvik’s engineers to provide remote support, troubleshooting issues and recommending solutions without needing to visit the site.

3.3 Environmental Sustainability – Reducing Carbon Footprint

• Recyclable Materials: Companies are designing roller drill bits with recyclable components to reduce waste. For example, Atlas Copco’s “Eco-Bit” uses a recyclable steel bit body and inserts that can be removed and recycled separately—this reduces the amount of waste sent to landfills by up to 40% compared to traditional bits.
• Low-Toxicity Lubricants: Traditional roller drill bit lubricants contain toxic chemicals that can contaminate soil and groundwater. Manufacturers are switching to low-toxicity, biodegradable lubricants (e.g., vegetable-based greases) that are safe for the environment. Boart Longyear’s “Bio-Lube” grease is 100% biodegradable and has been tested to meet the strict environmental standards of the European Union (EU) and the U.S. Environmental Protection Agency (EPA).
• Energy-Efficient Designs: New roller drill bit designs are focused on reducing the energy required for drilling. For example, Schramm’s “Eco-Drill” bit has an optimized cutting structure that reduces the torque required for penetration by 15%, which lowers the energy consumption of the drilling rig. This not only reduces the carbon footprint of drilling operations but also lowers fuel costs for customers.

3.4 Customization and Modular Design

• Customized Inserts: Manufacturers are offering inserts with custom shapes, sizes, and materials to match the unique formation conditions of a customer’s site. For example, if a customer is drilling in a formation with a high clay content (which causes insert clogging), Sandvik can design inserts with a special coating that prevents clay buildup.
• Modular Bit Bodies: Modular roller drill bits allow customers to replace individual components (e.g., inserts, bearings, seals) rather than the entire bit. This reduces costs by up to 30% and extends the overall life of the bit. Atlas Copco’s “Modular Bit” system includes interchangeable inserts, bearings, and seals that can be replaced on-site, eliminating the need to transport the entire bit to a repair facility.
• Application-Specific Kits: Manufacturers are offering application-specific kits that include the roller drill bit, compatible drill rods, lubricants, and maintenance tools. For example, Schramm’s “Geothermal Kit” includes a G Series roller drill bit, heat-resistant drill rods, Bio-Lube grease, and a specialized maintenance toolset—this provides customers with a complete solution that is optimized for geothermal drilling, reducing the time and effort required to source and assemble components.

4. Conclusion: Choosing the Right Roller Drill Bit for Your Application

• Formation Characteristics: The hardness, abrasiveness, and fracturing of the formation are the most important factors. For soft, non-abrasive formations (e.g., clay, shale), milled tooth bits or ball-bearing insert bits are suitable. For medium-hard formations (e.g., sandstone, limestone), insert tooth bits with spherical or conical inserts and tapered roller bearings are ideal. For hard, abrasive formations (e.g., granite, quartzite), diamond-enhanced insert bits with triple-row or quadruple-row tapered roller bearings are recommended.
• Application Requirements: The industry and specific application (mining, construction, oil and gas, geothermal) dictate the bit’s diameter, speed range, and torque capacity. For example, surface mining requires large-diameter bits (10-16 inches) with high torque capacity, while mineral exploration requires small-diameter bits (2-4 inches) with high precision.
• Rig Compatibility: The roller drill bit must be compatible with the drilling rig’s specifications, including drill rod diameter, maximum torque, and drill pressure. Using an incompatible bit can lead to reduced performance, bit damage, or even rig failure.
• Cost and Performance Trade-Offs: While premium bits (e.g., diamond-enhanced inserts, smart bits) have higher upfront costs, they often provide lower total cost of ownership due to longer service life, higher drilling speed, and reduced downtime. It is important to evaluate the total cost (bit cost + maintenance cost + downtime cost) rather than just the upfront cost.
