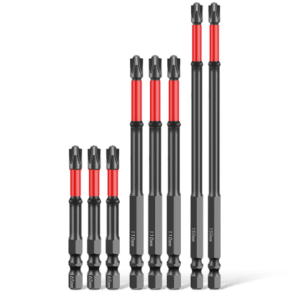

What are the models of Electrician’s bit?

Electrician’s bits are essential tools designed for driving and removing screws in electrical work, where precision, durability, and compatibility with various fasteners are critical. These bits come in diverse models, each tailored to specific screw types, materials, and work environments. Below is a detailed exploration of the most common models, including their design features, applications, and top brands with specific product 型号 (models).

1. Slotted Bits (Flat Bits)

Slotted bits, also known as flat bits, are one of the oldest and most basic types of driver bits. They feature a single, flat blade that fits into the straight, linear slot on the head of a slotted screw. While simple in design, they require careful alignment to prevent slipping (known as “cam-out”), which can damage both the screw and the work surface.

Design Features

  • Blade Width: Measured in inches or millimeters, ranging from 1/16″ (1.6mm) for small screws to 1/2″ (12.7mm) for larger fasteners.
  • Blade Thickness: Varies to match the slot depth of the screw, ensuring a secure fit.
  • Shank Type: Most have a round shank, though some professional models feature a hex shank for better grip in power tools.

Top Brands and Models

  • DeWalt DW2132 Slotted Bit Set: This set includes 6 slotted bits with sizes from 1/8″ to 5/16″. The bits are made from high-grade S2 alloy steel, heat-treated for hardness and durability. The precision-machined tips ensure a tight fit, reducing cam-out. The hex shank design works with both manual screwdrivers and power drills, making it versatile for electrical panel installations and light fixture assembly.
  • Milwaukee 48-32-4002 Slotted Bit: A single 3/16″slotted bit with a 2″ length. It features a black oxide coating to resist corrosion and reduce friction, 延长 (extending) tool life. The precision-ground tip is ideal for working with slotted screws in junction boxes and switch plates.
  • Bosch ITT1500 Slotted Bit: Available in 1/4″ size, this bit is crafted from chrome vanadium steel (Cr-V), known for its strength and toughness. The shank is magnetized to hold screws securely, a useful feature when working in tight electrical enclosures where dropping screws is a risk.

2. Phillips Bits

Phillips bits are designed to fit Phillips screws, which have a cross-shaped recess on their heads. Invented by Henry F. Phillips in the 1930s, this design was engineered to reduce cam-out by allowing the bit to “ride up” in the recess under high torque, preventing damage. Phillips bits are widely used in electrical work, from outlet installations to wiring fixtures.

Design Features

  • Size Coding: Phillips bits are categorized by numbers (#0 to #4), corresponding to screw sizes. #0 is for tiny screws (e.g., in electronics), while #4 fits large structural screws.
  • Tip Geometry: The cross-shaped tip has slightly rounded edges to mate with the curved recesses of Phillips screws, ensuring optimal torque transfer.
  • Shank Options: Hex shanks are common for power tool compatibility, while round shanks are used for manual drivers.

Top Brands and Models

  • DeWalt DW2166 Phillips Bit: A #2 Phillips bit, the most versatile size for electrical work (fits standard outlet and switch screws). It is made from S2 alloy steel with a black oxide finish for rust resistance. The precision tip geometry minimizes cam-out, making it ideal for driving screws into electrical boxes made of metal or plastic.
  • Makita B-65397 Phillips Bit Set: This set includes #0, #1, #2, and #3 Phillips bits. Each bit features a torsion zone design, which absorbs torque to prevent breakage—critical when working with stubborn screws in electrical panels. The hex shank ensures a secure fit in impact drivers.
  • Stanley STMT73715-8 Phillips Bit: A #2 Phillips bit with a 3″ length, perfect for reaching screws in deep electrical enclosures. The bit is made from high-carbon steel, heat-treated for durability, and has a magnetic tip to hold screws in place during installation.

3. Pozidriv Bits

Pozidriv bits (often abbreviated as PZ) are similar to Phillips bits but with a more refined design. Developed in Europe, they feature additional small ridges between the main cross recesses, creating a 12-point star shape. This design provides better torque transfer and reduces cam-out significantly compared to Phillips bits, making them popular in industrial electrical work.

Design Features

  • Size Coding: Pozidriv bits are labeled PZ0 to PZ5, with PZ1 to PZ3 being most common in electrical applications.
  • Tip Precision: The 12-point design ensures a tighter fit with Pozidriv screws, which have matching recesses, preventing slippage even under high torque.
  • Material: Typically made from S2 or Cr-V steel, with coatings like nickel or black oxide for corrosion resistance.

Top Brands and Models

  • Irwin 3050002 Pozidriv Bit Set: Includes PZ1, PZ2, and PZ3 bits. The bits are forged from high-grade alloy steel, ensuring long life. The precision-machined tips match Pozidriv screw recesses perfectly, making them ideal for installing heavy-duty electrical hardware like conduit clamps and breaker boxes.
  • Klein Tools 32528 Pozidriv Bit: A PZ2 bit with a 2-1/2″ length, designed specifically for electricians. Klein Tools, a brand renowned for electrical tools, crafts this bit from heat-treated chrome molybdenum steel (Cr-Mo), which offers superior strength and wear resistance. The hex shank works with impact drivers, and the tip is magnetized for easy screw handling.
  • Bosch ITT2000 Pozidriv Bit: A PZ3 bit with a black oxide coating to reduce friction and prevent overheating during prolonged use. The bit’s shank is designed to fit standard 1/4″ hex chucks, compatible with most power drills and screwdrivers used in electrical installations.

4. Torx Bits (Star Bits)

Torx bits, also called star bits, feature a six-pointed star-shaped tip designed to fit Torx screws. Invented by Camcar Textron in 1967, this design provides excellent torque transfer and virtually eliminates cam-out, making Torx bits ideal for high-torque applications in electrical work, such as securing heavy-duty electrical panels or industrial equipment.

Design Features

  • Size Coding: Torx bits are labeled T1 to T100, with T10 to T30 being common in electrical work. The size corresponds to the distance between opposite points of the star.
  • Tip Strength: The six-point design distributes torque evenly across the screw head, reducing stress on both the bit and the screw, which is crucial for preventing damage to electrical components.
  • Special Variants: Torx Plus (TT) and Torx Security (with a center pin) are variants; the latter is used in tamper-resistant applications, such as public electrical fixtures.

Top Brands and Models

  • Milwaukee 48-32-4402 Torx Bit Set: Includes T10, T15, T20, T25, T27, and T30 bits. These bits are made from proprietary Steelhead™ alloy steel, which Milwaukee claims offers 30% longer life than standard S2 steel. The bits feature a precision-machined tip for a perfect fit and a black oxide coating for rust resistance. They are ideal for driving Torx screws in electrical junction boxes and motor housings.
  • DeWalt DW2541 Torx Bit: A T25 Torx bit, a popular size for electrical work. It features a torsion zone that flexes under high torque to prevent breakage, a common issue when dealing with rusted or over-tightened screws. The hex shank fits all 1/4″ impact drivers, and the bit is magnetized to hold screws securely.
  • Makita B-65597 Torx Bit Set: This set includes T8 to T40 bits, covering a wide range for electrical applications. Each bit has a yellow zinc coating for corrosion resistance and a precision tip to minimize slippage. The bits are compatible with both manual and power tools, making them versatile for electricians.

5. Hex Bits (Allen Bits)

Hex bits, also known as Allen bits, have a hexagonal (six-sided) tip designed to fit hex head screws and bolts, which feature a hexagonal recess. These bits are widely used in electrical work for securing components like motor mounts, terminal blocks, and conduit fittings, where a secure, high-torque connection is needed.

Design Features

  • Size Coding: Hex bits are measured by the distance across flats (DAF) in inches or millimeters, ranging from 1/16″ (1.5mm) to 3/8″ (10mm) for common electrical applications.
  • Shank Design: Most have a hex shank matching their tip size, ensuring compatibility with hex chucks in power tools. Some longer bits feature a reduced shank for use in deep recesses.
  • Strength: Made from hardened steel (often S2 or Cr-V) to withstand high torque without rounding.

Top Brands and Models

  • Irwin 3050010 Hex Bit Set: Includes 1/8″, 3/32″, 1/4″, 5/32″, 3/16″, and 1/5″ hex bits. The bits are forged from high-alloy steel and heat-treated for maximum hardness. The precision-ground tips ensure a tight fit, reducing the risk of rounding hex recesses in electrical hardware. The set comes with a storage case, making it easy to organize on job sites.
  • Klein Tools 32535 Hex Bit: A 1/4″ hex bit with a 2″ length, designed for electricians working with hex head screws in electrical panels and switchgear. Klein’s bit is made from chrome molybdenum steel, which offers excellent impact resistance—vital when using power tools. The bit has a black oxide finish to resist corrosion and a magnetized tip for screw retention.
  • Bosch ITT3000 Hex Bit: A 3/16″ hex bit with a 3″ length, ideal for reaching hex screws in deep electrical enclosures. The bit is crafted from Cr-V steel with a nickel plating for durability and features a precision-machined tip to prevent slippage. It fits standard 1/4″ hex chucks, compatible with most drills and impact drivers.

6. Square Bits (Robertson Bits)

Square bits, also known as Robertson bits, are designed for square drive screws, which have a square-shaped recess in their heads. Invented by Peter L. Robertson in 1908, this design offers excellent torque transfer and minimal cam-out, making square bits popular in electrical work where strong, secure connections are required, such as in structural electrical installations.

Design Features

  • Size Coding: Square bits are labeled #0 to #3, with #1 and #2 being most common in electrical applications. The size corresponds to the square recess size in the screw head.
  • Tip Design: The square tip has sharp corners that lock into the screw’s recess, ensuring maximum torque transfer and reducing slippage.
  • Material: Typically made from S2 alloy steel or Cr-V steel, with coatings to resist wear and corrosion.

Top Brands and Models

  • Milwaukee 48-32-4502 Square Bit Set: Includes #0, #1, #2, and #3 square bits. These bits are constructed from Steelhead™ alloy steel, Milwaukee’s proprietary material known for its toughness. The precision-machined tips ensure a perfect fit with square drive screws, making them ideal for installing electrical conduit hangers and heavy-duty switch plates. The hex shank fits all 1/4″ impact drivers, and the bits have a black oxide coating for rust resistance.
  • DeWalt DW2571 Square Bit: A #2 square bit, the most versatile size for electrical work. It features a torsion zone that absorbs torque to prevent breakage, a key advantage when dealing with over-tightened screws. The bit is made from S2 steel with a black oxide finish and has a magnetized tip to hold screws during installation in tight spaces like electrical junction boxes.
  • Stanley STMT73720-8 Square Bit: A #1 square bit with a 2-1/2″ length, suitable for smaller square drive screws in electrical fixtures and outlets. The bit is made from high-carbon steel, heat-treated for durability, and has a hex shank for compatibility with power tools. The precision tip minimizes cam-out, protecting both the screw and the work surface.

7. Tri-Wing Bits

Tri-wing bits feature a three-bladed, wing-shaped tip designed to fit tri-wing screws, which have a three-pointed recess. These screws are commonly used in specialized electrical equipment, such as certain types of circuit breakers, electrical meters, and security devices, where tamper resistance is important.

Design Features

  • Size Variability: Tri-wing bits come in sizes ranging from small (for electronics) to larger sizes for industrial electrical components. Sizes are often labeled by number (e.g., #1, #2) or by the distance between the wings.
  • Tamper Resistance: The unique three-wing design makes tri-wing screws difficult to remove without the correct bit, enhancing security in sensitive electrical systems.
  • Material: Made from hardened steel to withstand the torque required for securing tamper-resistant screws.

Top Brands and Models

  • Klein Tools 32540 Tri-Wing Bit: A #2 tri-wing bit designed for electricians working with tamper-resistant electrical meters and utility equipment. Klein Tools constructs this bit from heat-treated chrome molybdenum steel, ensuring strength and durability. The hex shank fits 1/4″ impact drivers, and the precision-machined tip ensures a secure fit in tri-wing recesses, preventing slippage.
  • Wiha 71482 Tri-Wing Bit Set: Includes #1, #2, and #3 tri-wing bits, covering most common sizes in electrical work. Wiha, a German brand known for precision tools, crafts these bits from high-grade alloy steel with a nickel-plated finish for corrosion resistance. The bits are ideal for servicing specialized electrical equipment where tri-wing screws are used, such as certain industrial control panels.
  • Irwin 3050020 Tri-Wing Bit: A #1 tri-wing bit with a 2″ length, suitable for smaller tri-wing screws in electrical security devices. The bit is forged from alloy steel and heat-treated for hardness, with a precision tip to minimize damage to screw recesses. The hex shank ensures compatibility with both manual and power tools.

8. Spanner Bits (Snake Eyes Bits)

Spanner bits, also called snake eyes bits, have two small pins (or “prongs”) that fit into corresponding holes in the head of a spanner screw. These screws are used in high-security electrical applications, such as public lighting, electrical cabinets, and utility boxes, to prevent unauthorized access.

Design Features

  • Pin Configuration: The pins on spanner bits vary in size and spacing to match the holes in spanner screws, ensuring a secure fit. Sizes are often measured by the distance between the pins (center-to-center).
  • Security Focus: The design of spanner screws and bits makes them difficult to tamper with, as standard drivers cannot engage the screw head.
  • Material: Made from hardened steel to withstand torque while maintaining the integrity of the pins, which are prone to bending if misused.

Top Brands and Models

  • Klein Tools 32550 Spanner Bit Set: Includes 4 spanner bits with pin distances of 3mm, 4mm, 5mm, and 6mm, covering common sizes in electrical security applications. Klein’s bits are made from chrome molybdenum steel, heat-treated for strength, and the pins are precision-machined to ensure a tight fit in spanner screw holes. The hex shank fits 1/4″ impact drivers, making them suitable for both manual and power use.
  • Stanley STMT73730-8 Spanner Bit: A 5mm spanner bit with a 2-1/2″ length, ideal for securing electrical utility boxes and public lighting fixtures. The bit is made from high-carbon steel, heat-treated for durability, and the pins are reinforced to prevent bending under torque. The hex shank ensures compatibility with most power drills and screwdrivers.
  • Bosch ITT5000 Spanner Bit: A 4mm spanner bit with a black oxide coating to resist corrosion. The bit’s pins are precision-ground to match spanner screw holes, reducing slippage and damage. It is designed for use in electrical security systems, where reliable tamper resistance is critical.

9. Impact-Ready Bits

Impact-ready bits are specially designed to withstand the high torque and vibrations of impact drivers, a common tool in electrical work for driving large screws or removing rusted fasteners. These bits are reinforced to prevent breakage, making them essential for heavy-duty applications.

Design Features

  • Torsion Zones: Many impact-ready bits feature a flexible torsion zone (a narrowed or segmented section) that absorbs shock and torque, reducing stress on the bit tip and preventing breakage.
  • Hardened Materials: Made from high-grade alloys like S2 or Chrome Molybdenum (Cr-Mo) steel, which offer superior strength and impact resistance.
  • Coatings: Often coated with black oxide, titanium, or nitride to reduce friction, resist wear, and extend tool life.

Top Brands and Models

  • DeWalt DW2522 Impact-Ready Bit Set: A comprehensive set including Phillips (#1, #2), Slotted (1/4″, 5/16″), Hex (1/8″, 3/16″), and Torx (T15, T20, T25) bits. Each bit features a torsion zone that flexes under impact, preventing breakage. The bits are made from S2 alloy steel with a black oxide finish and have a 1/4″ hex shank compatible with all impact drivers. Ideal for heavy-duty electrical work, such as installing electrical panels and conduit systems.
  • Milwaukee 48-32-4420 Impact Duty Bit Set: Includes Torx (T10-T30), Phillips (#1, #2), and Hex (1/8″-3/16″) bits. Milwaukee’s Impact Duty bits are made from Steelhead™ alloy steel, which the brand claims provides 50% longer life than standard bits. They feature a precision-machined tip for a tight fit and a Shockzone™ torsion zone to absorb impact, making them perfect for removing rusted screws in electrical junction boxes.
  • Makita B-65917 ImpactX Bit Set: This set features Phillips, Torx, Hex, and Slotted bits designed for impact drivers. The bits have a Xtreme Torque™ design with a reinforced shank and torsion zone to prevent breakage. Made from high-grade S2 steel with a black oxide coating, they resist wear and corrosion. The magnetized tips hold screws securely, a useful feature when working in overhead electrical installations.

10. Insulated Bits

Insulated bits are designed for electrical work where safety is paramount, as they provide protection against electric shock. These bits are tested and certified to meet safety standards (e.g., IEC 60900) for use in live electrical environments, typically up to 1000V AC or 1500V DC.

Design Features

  • Insulation Material: The shank and tip (up to a certain length) are coated or covered with a non-conductive material like nylon or fiberglass-reinforced plastic, which provides electrical insulation.
  • Certifications: Look for bits marked with “VDE” (Verband der Elektrotechnik) or “GS” (Geprüfte Sicherheit) certifications, ensuring they meet international safety standards.
  • Compatibility: Available in various drive types (Phillips, Torx, Hex) to match common electrical screws, with insulated shanks that fit standard insulated screwdrivers or power tool chucks.

Top Brands and Models

  • Klein Tools 603-6 Insulated Phillips Bit: A #2 Phillips bit with 1000V AC insulation, certified to IEC 60900. The bit features a nylon insulation coating over a steel core, providing both safety and strength. The tip is precision-machined for a tight fit, and the hex shank is compatible with insulated screwdrivers and impact drivers. Ideal for working on live electrical panels, outlets, and switches.
  • Wiha 32016 Insulated Bit Set: Includes insulated Phillips (#1, #2), Slotted (3.5mm, 5.5mm), and Hex (4mm, 5mm) bits, all rated for 1000V AC. Wiha’s insulated bits are VDE-certified and feature a dual-layer insulation system (inner fiberglass, outer nylon) for maximum safety. The bits are made from high-grade steel for durability and have precision tips to reduce cam-out, making them suitable for live electrical work in commercial and industrial settings.
  • DeWalt DWHT70265 Insulated Torx Bit: A T25 Torx bit with 1000V insulation, certified to meet OSHA and IEC standards. The bit has a rugged insulation coating that resists damage from chemicals and abrasion, ensuring long-term safety. The steel core is made from S2 alloy for strength, and the hex shank fits insulated power tool chucks, making it versatile for both manual and power-driven live electrical work.



In conclusion, electrician’s bits are available in a wide range of models, each designed to meet specific needs in electrical work—from basic slotted bits for simple fixtures to insulated impact-ready bits for high-voltage, heavy-duty applications. Understanding the features, applications, and top brands of each model ensures that electricians can select the right tool for the job, enhancing efficiency, safety, and durability. Whether working with standard Phillips screws or specialized tamper-resistant fasteners, there is a bit model tailored to every electrical task.
